Videofied DCV601 Installation Sheet

Product Summary

The Indoor MotionViewer DCV601 is a wireless, indoor
motion activated camera designed for use with
Videofied security systems. The camera includes the fol-
lowing features:
>
Lithium batteries for long life.
>
Wide angle lens.
>
Infrared LED for night illumination.
>
Standard motion coverage lens (30 ft./9 m distance).
>
Dual tamper function provides detection of both
wall and cover tamper.
>
Transmits check-in/status signal every 8 minutes.

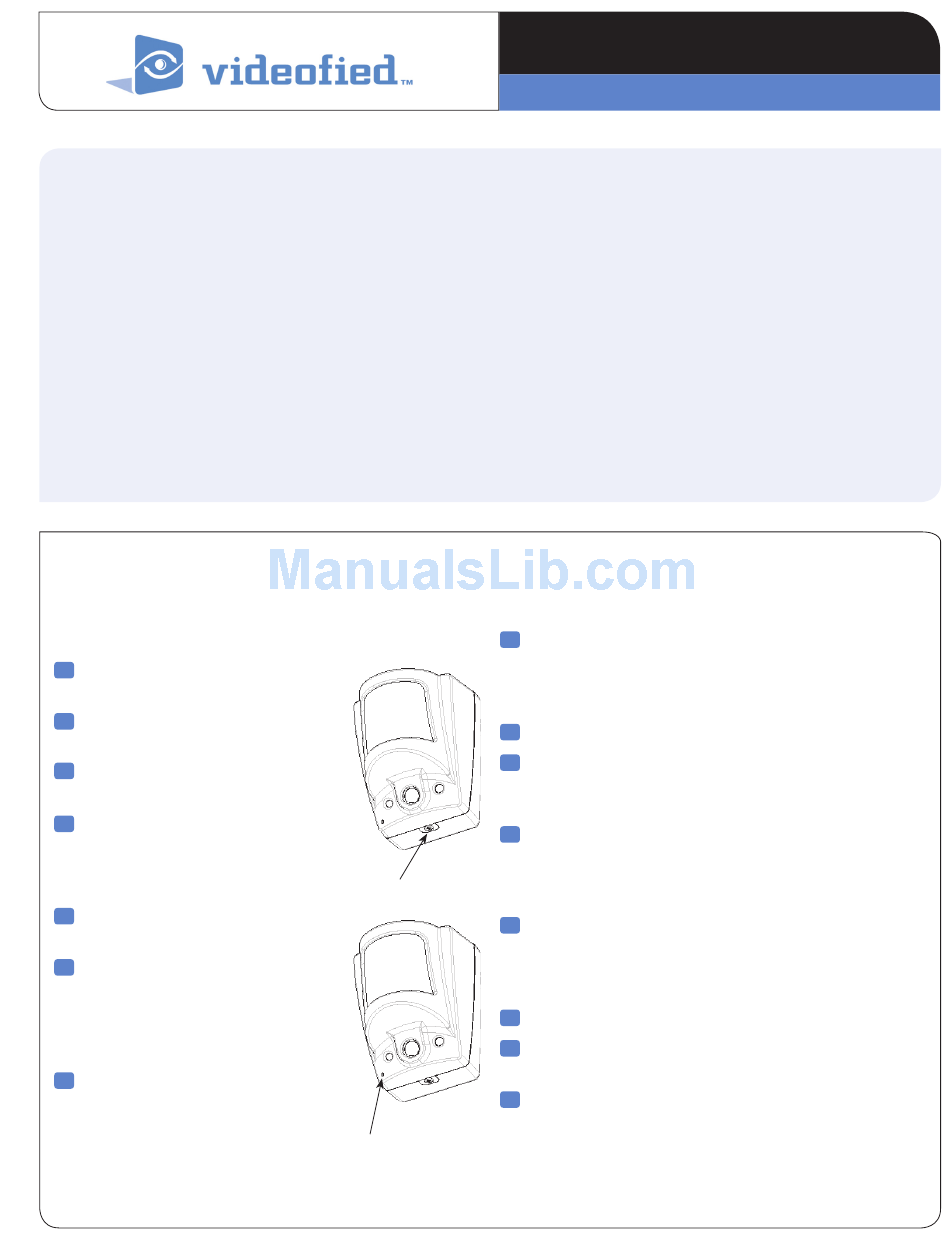

Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.
1
Loosen bottom screw, separate base
from camera and install batteries.
2
Re-attach base to secure
tamper switch.
3
Put control panel into
programming/configuration mode.
4
Using a programmed alphanumeric
keypad, proceed through menus
until the display shows ADD A
NEW DEVICE.
5
Press Yes. The display shows PRESS
PROGRAM BUTTON OF DEVICE.
6
Press and release program button
on camera using a paper clip end.
The camera LED flashes. Wait for
keypad display to show CAMERA
(1 - 25) PROGRAMMED.
7 Press Yes. The display shows
RADIO RANGE TEST? Press Yes
again. The camera LED starts
flashing and keypad display
shows TEST IN PROGRESS.
P R O D U C T I N S T A L L A T I O N S H E E T
Made by RSI VIDEO TECHNOLOGIES

Installation Guidelines

For easier installation, programming and RF testing
should be done to check for good communication between
the control panel and all system devices before mounting
system devices.
Install the detector and other system devices in the order
of the following steps:
>
Programming/RF Testing - program detector and all other
devices into the control panel and test RF communication from
each intended device location to the control panel.
>
Mounting - mount detector at the tested location.
8 Take camera to its intended mounting location and
make sure LED flashes continuously or you receive a 5/5
or 9/9 indicating good communication with the control
panel.
9
Press YES to end radio range test, then press Esc/No.
10 The display shows AREA ALLOCATION AREA: 1. Press
either arrow button repeatedly until desired AREA
number appears, then press Yes.
11
The display shows NAME + LOCATION. Enter appropriate
device name/location (up to 16 characters), then press
Yes. The display shows the device number and name
Screw
for your verification.
12
Press Yes. The display shows FUNCTIONAL DEVICE
TEST? Press Yes again and verify camera operation.
For example, wave your hand in front of the sensor to
activate its LED indicating detection. (walk test LED)
13
Press Yes to end detection verification.
14
The display shows ADD A NEW DEVICE?
Repeat steps 1 – 14 for remaining cameras.
15
When finished, exit from configuration mode.
Program Button
Indoor MotionViewer DCV601
www.videofied.com
2220-IMVIS March 2012
