INSTALLATION GUIDE
ASPIRE COMFIMOTION BED COLLECTION
This guide is intended to explain the correct set up procedures for the Aspire ComfiMotion Bed Collection upon
installation. For further installation and operating instructions, refer to the product User Manual.
1. ADJUSTABLE BEDS
2. HEADBOARDS BEDS
ASSEMBLY OF COMFIMOTION BED (CARE AND LUXE)

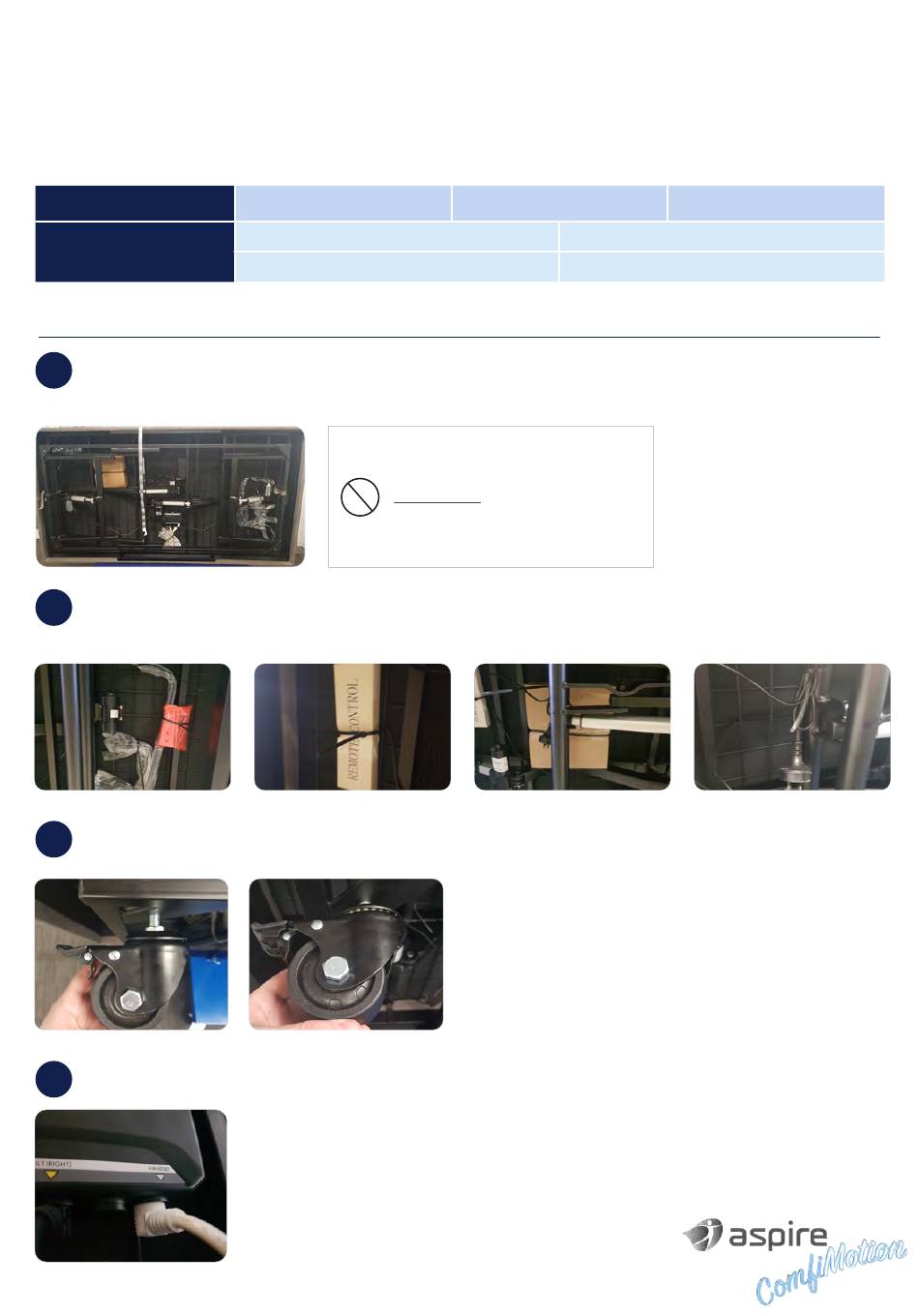

Remove bed from carton and position on flat surface or a Bed Moving Trolley for easy setup. Ensure the bed is
1.1
placed TOP DOWN, so all components (hand control, retainers, castors & power cord) can be removed easily
from the underside of bed.
1.2
Using a box cutter, unhook all components from the base of the bed (retainers, power cord, hand control and castors).
Retainers
Install castors onto all 4 x corners of bed, securing in place with a 12mm spanner.
1.3
NOTE: 75mm Castors shown. When fitting larger (MWT451080 - Optional Accessory) castors, the process is
the same.
1.4
4.
Connect hand control into control box port (CARE bed only).
LUXE (KS) BEB046710
ALLURE (LS) BEA830120
ALLURE (KS) BEA830130
When opening the carton, ensure it
is done in a safe and careful manner.
DO NOT USE a box cutter or sharp
implement as this may damage the
product.
Hand Control
NOTE: LUXE Bed has a wireless
Hand Control, no need to connect
to Control Box.
CARE (LS) BEB046720
CHESTERFIELD (LS) BEA830100
CHESTERFIELD (KS) BEA830110
Castors
CARE (KS) BEB046730
Power Cord
