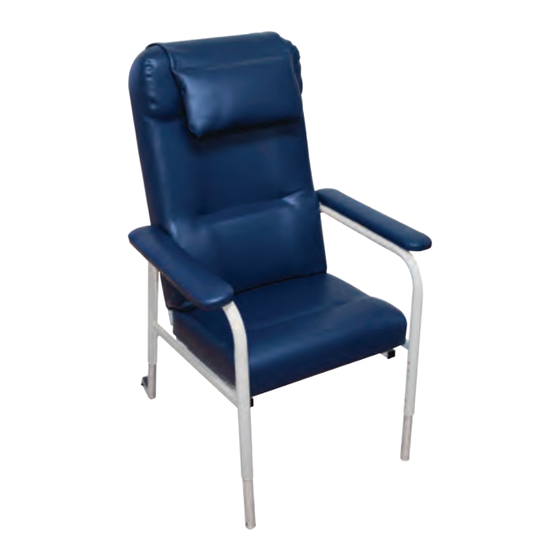

Aspire ADJUSTABLE HEIGHT DAY CHAIR Quick Assembly Manual

ASPIRE ADJUSTABLE HEIGHT DAY CHAIR

QUICK ASSEMBLY GUIDE

Carton Contains:

1. Seat base & frame x 1

2. Side frame left x 1

3. Side frame right x 1

4. Backrest & frame x 1

5. Backrest connectors x 2

6. Extension legs x 2 (front)

7. Extension legs with wheels x 2 (rear)

8. Head cushion x 1

9. Hand wheels x 8 (located on frame)

Step 1 – Attach side frames to seat base

Note – The front of the side frames has a near vertical leg section while the rear angles outwards. The front of the

seat base is the section with the knee bolster, a raised section of padding for additional support.

- Align left side frame with left side of seat base (A).

- Push horizontal connectors into place (B).

- Fasten with 2 x hand wheels (C).

- Repeat for right side

- Ensure all 4 hand wheels (2 x each side) are fastened tightly (D).

www.aspirecare.com.au

1300 133 120

Table of Contents

Do you have a question about the ADJUSTABLE HEIGHT DAY CHAIR and is the answer not in the manual?

Page 1 ASPIRE ADJUSTABLE HEIGHT DAY CHAIR QUICK ASSEMBLY GUIDE Carton Contains: 1. Seat base & frame x 1 2. Side frame left x 1 3. Side frame right x 1 4. Backrest & frame x 1 5. Backrest connectors x 2 6.
Page 2 ASSEMBLY CONT.. Step 2 – Mount the backrest - Align and insert backrest connectors x 2 into the seat base frame (A). - Position backrest frame over the connectors so they insert into both sides, lower backrest to the desired height (B) and fasten 2 x hand wheels (C).
