Summary of Contents for Aspire RAPHAEL X

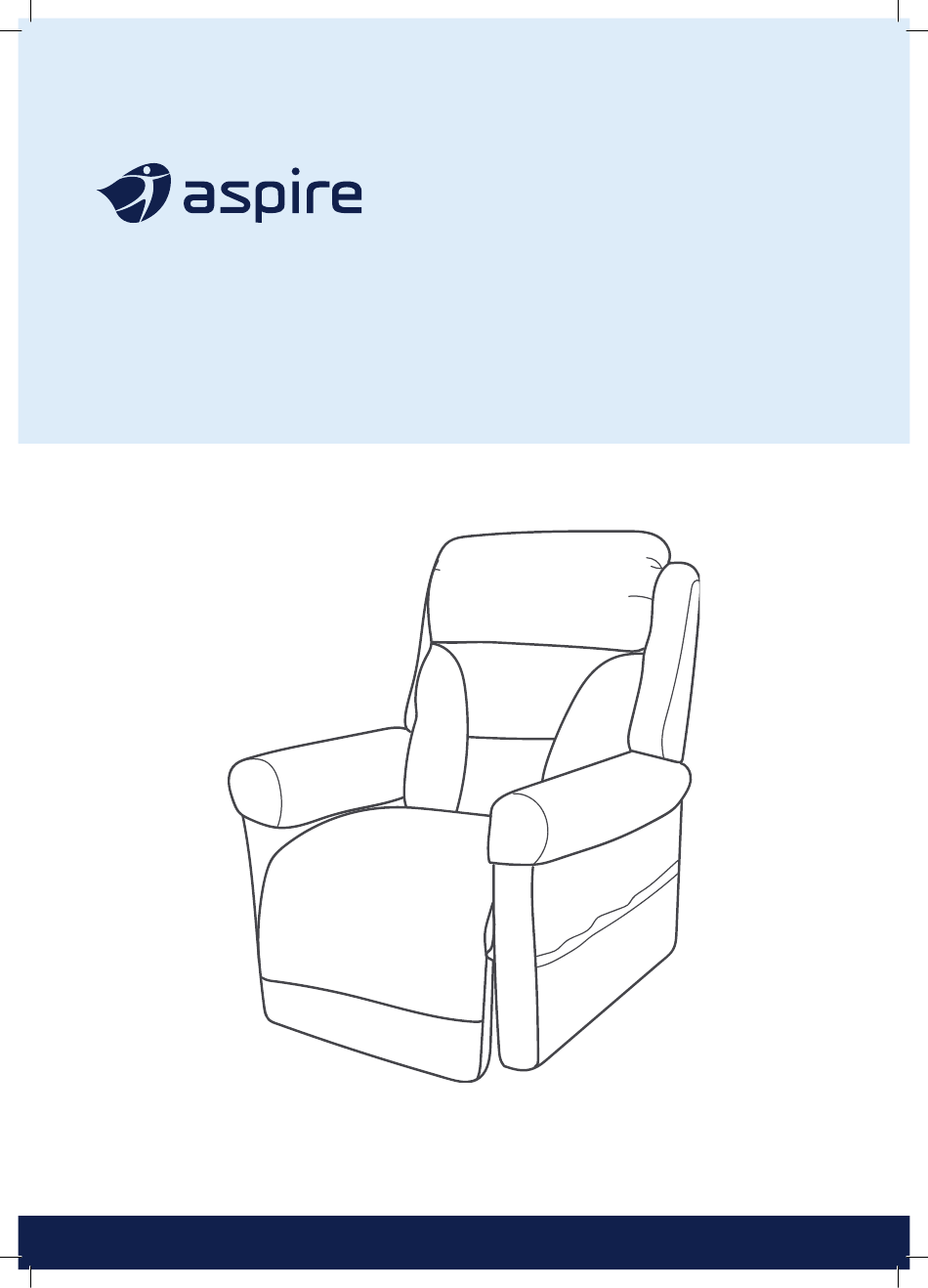

- Page 1 RAPHAEL X LIFT RECLINE CHAIR USER MANUAL...
- Page 2 Thank you for choosing the Aspire Raphael X Lift Recline Chair. This chair has been specifically designed to offer comfort, support and safety. It is important that you read this user manual carefully before using your new Lift Recline Chair.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Symbols Used in Manual 2. Symbols Used on this Product 3. Introduction 4. Warnings 5. Your Raphael X Lift Recline Chair 6. Assembly Guide 7. Operation 8. Accessories 9. Care And Maintenance 10. Warranty 11. Service Maintenance & Customisation 12. -
Page 4: Symbols Used In Manual
Performing a prohibited action can cause personal injury and/ or equipment damage. On the product, this icon is represented as a black symbol with a red circle and red slash. Please fill out the following information for quick reference: Aspire Dealer Address Phone Number Purchase Date Serial Number NOTE: This owner’s manual is compiled from the latest specifications and product information available... -
Page 5: Symbols Used On This Product
It is very important for you to read and understand these symbols completely. Do not remove these labels from your product. Please note that not all of the symbols may be used on your Raphael X Lift Recline Chair model. Pinch/Crush Points Hazard! Do... - Page 6 Contact your authorised Aspire Dealer for This product has been tested and more information. complies to IEC 60601-1-2. Do not place objects under the lift chair. Make sure the area is...
-
Page 7: Introduction
We want to hear your questions, comments and suggestions about this manual. We would also like to hear about the safety and reliability of your new Raphael X Lift Recline Chair and about the service you received from your authorised Aspire Dealer. Please notify us of any change of address, so we can keep you apprised of important information about safety, new products and new options that can increase your ability to use and enjoy your Raphael X Lift Recline Chair. -
Page 8: Warnings
PRE-USE CHECKS Before using your Aspire Lift Chair, check that it is working properly. Never use your chair if a fastening component is loose, a wheel or chair part does not function normally or upholstery parts are torn or undone MODIFICATIONS To prevent personal injury and/or damage;... -
Page 9: Degree Of Protection/Mode Of Operation
EMI. Per EMC standards, this product has passed immunity testing and is rated as a Group 1, Class B product, meaning the Raphael X Recline Chair uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment making the Raphael X Lift Recline Chair suitable for use in all establishments, including domestic establishments and hospitals. -
Page 10: Storage And Operation Temperatures
Recline Chair. WARNING! The addition of accessories or components to the Raphael X Lift Recline Chair can increase the susceptibility of the chair to EMI. Do not modify your Raphael X Lift Recline Chair in any way not authorised by Aidacare. -
Page 11: Your Raphael X Lift Recline Chair
5. YOUR RAPHAEL X LIFT RECLINE CHAIR This section describes the features of your Raphael X Lift Recline Chair. Carefully review the function and location of each item described, and note that the illustrations and option locations shown in this manual may not reflect the type of Raphael X Lift Recline Chair that you own. -
Page 12: Scissor Mechanism
WARNING! Pinch/Crush Points Hazard! Be aware that the lift mechanism and scissor mechanisms are a pinch point on the Raphael X Lift Recline Chair. Keep the following items and similar objects clear of these points when operating the Raphael X Lift Recline Chair: •... -
Page 13: Electrical Components
ELECTRICAL COMPONENTS Your Aspire Raphael X Lift Recline Chair is equipped with a low voltage DC motor system that reduces the standard household alternating current of 100V AC – 240V AC to direct current 29.0V DC. The electrical components include the external transformer, batteries and hand control. Keep these areas free from moisture at all times. -
Page 14: Assembly Guide
6. ASSEMBLY GUIDE Aspire Raphael X Lift Recline Chairs require assembly before initial use. It may also require disassembly to allow for easier servicing and maintenance. Your Lift Recline Chair is a Knock-Down (KD) design so please follow the instructions below to complete assembly. -
Page 15: Adjusting The Seat Depth
6.3 ADJUSTING THE SEAT DEPTH Raphael X offers seat depth adjustability of 25mm. Backrest receiver bracket can be removed and moved forward to the pre-drilled holes to increase the seat depth. Once Backrest bracket is is moved to the new... -
Page 16: Lift Chair Placement
NOTE: If you discover a problem at any point during the set-up and positioning of your lift chair, stop and contact your authorised Aspire Dealer immediately. To avoid personal injury and/or product damage, do not plug the unit into the electrical outlet until the problem is corrected and do not attempt to fix... -
Page 17: Lift Chair Disassembly
6.6 LIFT CHAIR DISASSEMBLY The back rest of Aspire Lift Chairs can be removed to make service and transport of the chair more convenient. Follow these steps to disassemble the lift chair: 6.6.1 Remove the bottom of the back fabric from 6.6.2 Using a large flat-head screwdriver, lift the... - Page 18 6.7 INSTALLING EXTERNAL LITHIUM-ION BATTERY PACK Your Raphael X chair is equipped with an external transformer with a lithium-ion battery pack, your chair may be operated without being plugged into an electrical outlet for up to 48 hours or up to a maximum of dozen lifts.
- Page 19 6.8 HOW TO FIT CASTORS If your chair is equipped with an external transformer with a lithium-ion battery pack, your chair may be operated without being plugged into an electrical outlet for up to 48 hours. 6.8.1 Flip chair onto side to access castor mounts. 6.8.2 Attach castor stem through plate, lock in place with retaining nut.
-
Page 20: Operation
• Always leave the Raphael X Lift Recline Chair in an upright and closed position when not in use • Do not sit or stand on the footrest • Do not “drop” into the Raphael X Lift Recline Chair when sitting if it is in a partially raised position, this will damage the seating and void warranty PROHIBITED! Do not place objects under the Raphael X Lift Recline Chair. - Page 21 7.1 HAND CONTROL OPERATION PRESS & HOLD to initiate symbol RELEASE button to stop Descend & Extend Ascend & Retract (Lowers + Extends Legrest) ( Lifts + Retracts Legrest) Backrest (Backwards + Forwards) Lumbar Support (Extends + Retracts) Headrest (Backwards + Forwards) Home (Resets chair to seated position)
- Page 22 7.2 CORRECT AND INCORRECT USE GUIDE DOS AND DO NOTS SITTING sit upright and centrally aligned in the chair. LAYING lie centrally and flat on the users back. Chairs shown are for illustrative purposes only and may not be reflective of the specific chair model purchased.
- Page 23 DO NOTS Misuse may injure the user, cause pressure and/or skin tear related issues, as well as damage the product. SITTING DO NOT sit skewed to DO NOT sit on the armrest. DO NOT distribute excess one side of the chair. weight on the backrest.
-
Page 24: Accessories
8. ACCESSORIES CLASSIC BACKREST The classic backrest cushion is available as an accessory. Code Colour Size CHP229200 Golden Grain Petite CHP229201 Marina Grey Petite CHP229202 Nordic Stone Petite CHP229210 Golden Grain Small CHP229211 Marina Grey Small CHP229212 Nordic Stone Small CHP229220 Golden Grain Medium... -
Page 25: Care And Maintenance
9. CARE AND MAINTENANCE Your Aspire Raphael X Lift Chair will require routine maintenance checks. You can perform some of these checks, but others may require assistance from an authorised Aspire Dealer. By following the maintenance checks in this section as scheduled, you can help ensure your lift chair gives you years of trouble-free operation. -
Page 26: Electronics Care
ELECTRONICS CARE • Inspect all wiring harnesses to make sure they are not damaged or frayed. • If damage is present, unplug the Raphael X Lift Recline Chair and contact your authorised Aspire Dealer for service. • Keep all electronics free from moisture and temperature extremes. -
Page 27: Warranty
Spare parts list is available upon request. TWO-YEAR FABRIC WARRANTY “Fabric and Upholstery Care” instructions specific to your Aspire Recliner are located in the “Care and Maintenance” section of this user manual. Failure to follow, protect and/or care for the upholstery/textile in the intended way (refer to “Care and Maintenance”... -
Page 28: Service Maintenance & Customisation
These may cause the product to no longer meet safety standards and should be considered prior to commencement. Any customisation or modification of the Aspire Raphael X chair is not warranted by Aidacare and will void warranty. 12. SPECIFICATIONS... -
Page 29: Recycling Information
13. RECYCLING INFORMATION Aspire Raphael X Lift Recline Chairs are fitted with electronic components and should not be mixed with general household waste. Old batteries and electronics are to be taken to your nearest recycling centre for recycling or contact your retailer. - Page 30 NOTES...
- Page 32 AIDACARE PTY LTD Building 3A, 1 Moorebank Avenue, Moorebank NSW 2170 Australia 1300 133 120 | aidacare.com.au MADE IN PRC ASUM129.8 200325...
