Luxrobo Modi User Manual page 7

module
Dial module
07
All About -

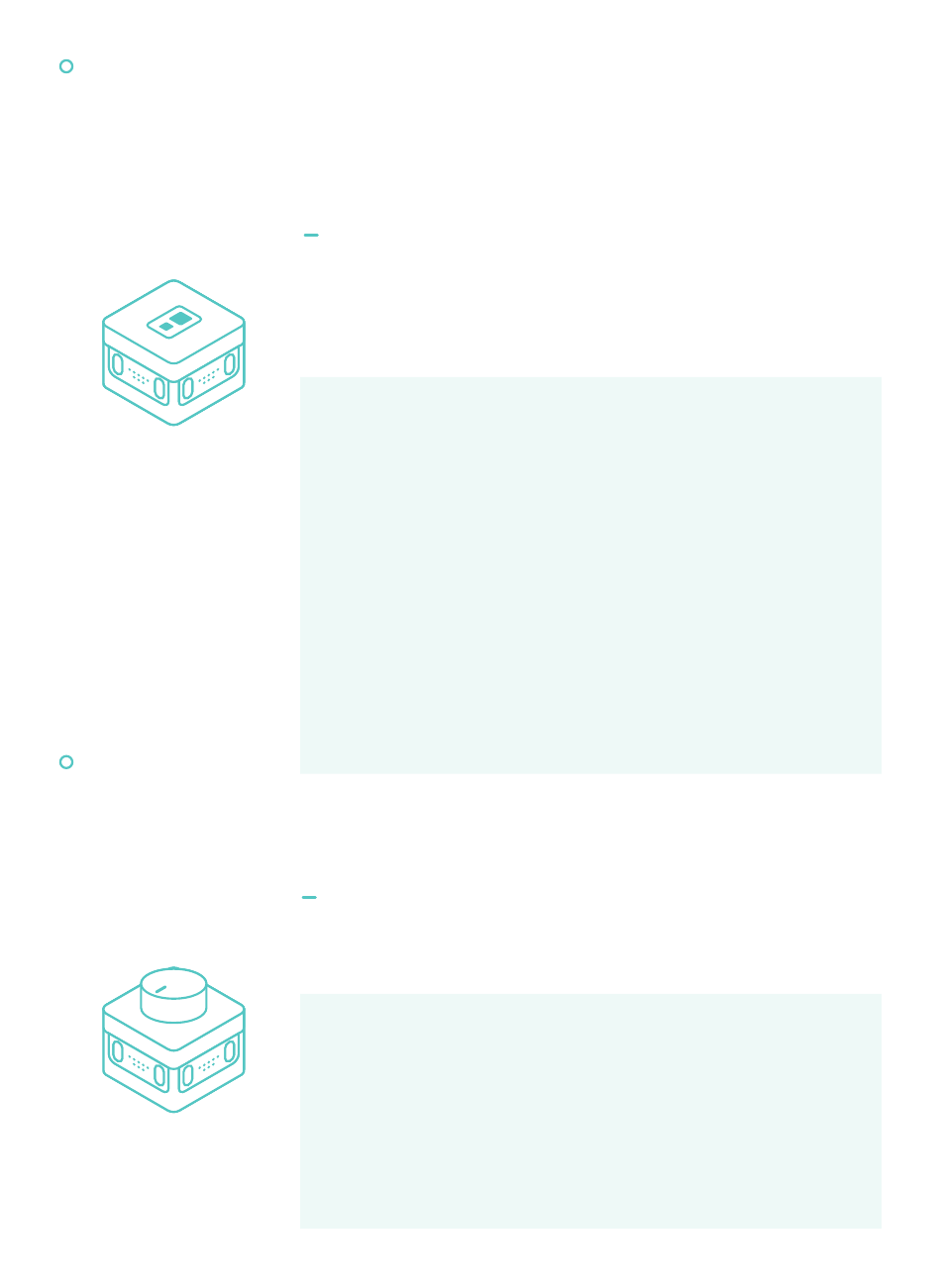

The Environment module detects surrounding physical changes and colors
using a semiconductor sensor.
It measures the three primary colors (R, G, and B) to detect surrounding
physical conditions, which includes temperature, humidity, illuminance, and color.
Features
➊ Measurement of temperature
➋ Measurement of humidity
➌ Measurement of illuminance
➍ Measurement of the three primary colors (R, G, and B)
[Product specifications]
Size 23.8*23.8*16.1 (mm)
Weight 12g
[Sensor specifications]
Temperature
Humidity
Illuminance
Color
*Some values may be expressed as a percentage (%) if their degree of sensitivity
is too low.
*Some separation between the module and the object to be measured is
recommended for stable measurement.
Connection
The Dial module measures rotational angle and velocity using the rotational
action of the module handle.
Features
➊ Measurement of rotational angle
➋ Measurement of rotational velocity
[Product specifications]
Size 23.8*23.8*24.0 (mm)
Weight 13g
[Sensor specifications]
Operating range
Connection
02. Introduction of MODI Modules
-10℃ ~ 85℃
0~90%RH
0~40,000Lux
0~40,000Lux
Magnetic connector X 4
0° - 235° (±5°)
Magnetic connector X 4
