OUTPUT
module

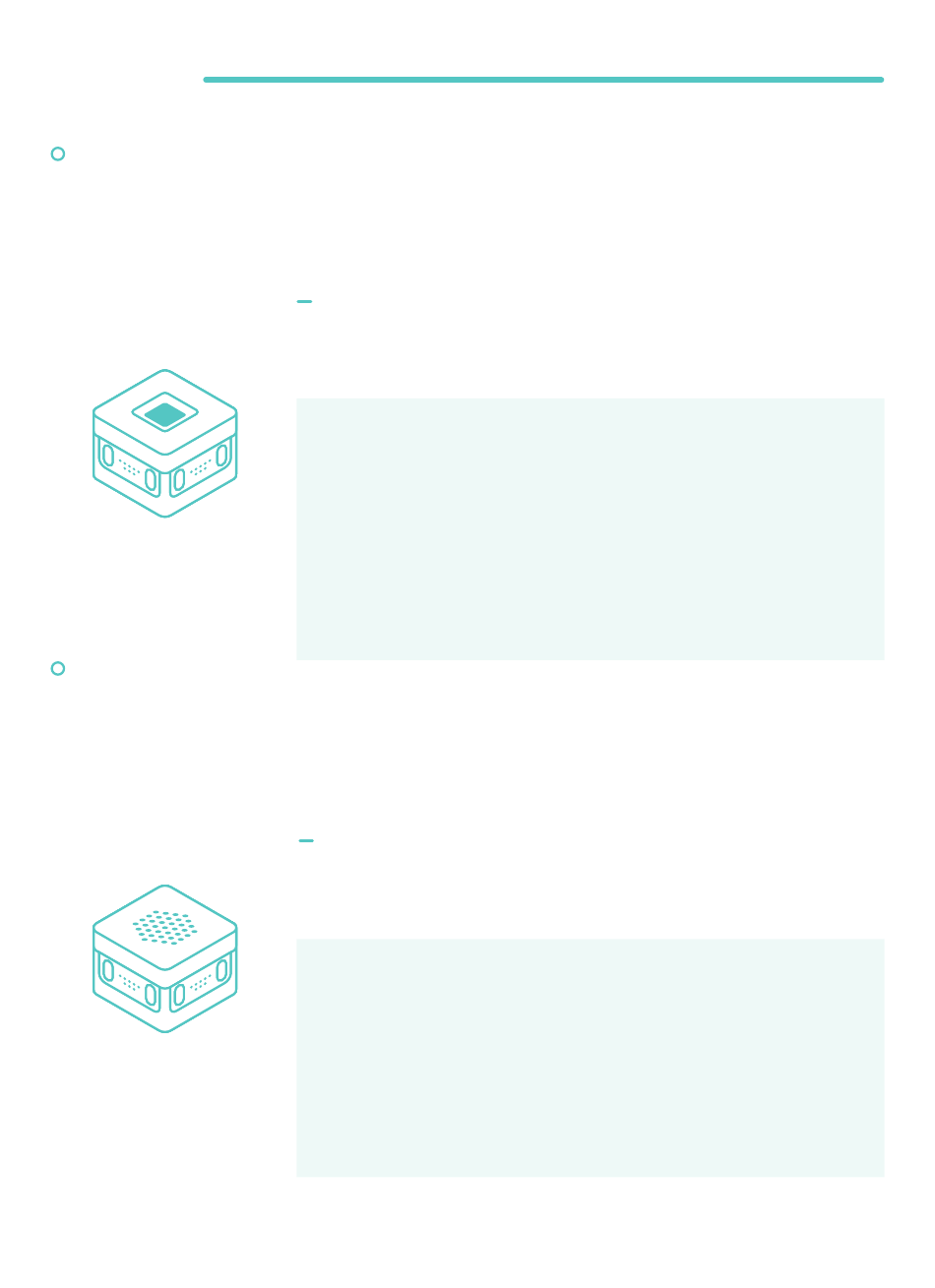

LED module
Speaker module
LED is a semiconductor element that emits light. The LED module can
make more than 65,000 different colors of light by combining the three
primary colors: red, green, and blue (R, G, and B).
Features
Display of four colors (red, green, blue, white, and off)
65,000 colors displayable by combining red, green, and blue
[Product specifications]
Size
23.8*23.8*16.1 (mm)
Weight
11g
[Output range]
Brightness
*Do not project LED lighting directly at a person's eyes, as it can damage their vision.
Connection
The Speaker module produces sounds of various frequencies and volumes.
You can make sounds by selecting a note using the piano UI, or by entering a
specific frequency.
Features
Output of musical notes using Piano UI
Output of sounds corresponding to frequencies
and volumes
[Product specifications]
Size
23.8*23.8*16.1 (mm)
Weight
12g
[Output range]
Frequency range
Connection
(R, G, B) 180, 50, 120 mcd (based on 2.5V)
Magnetic connector X 4
17Hz - 10,000Hz
Magnetic connector X 4

OUTPUT module

10
MODI
