INPUT
module

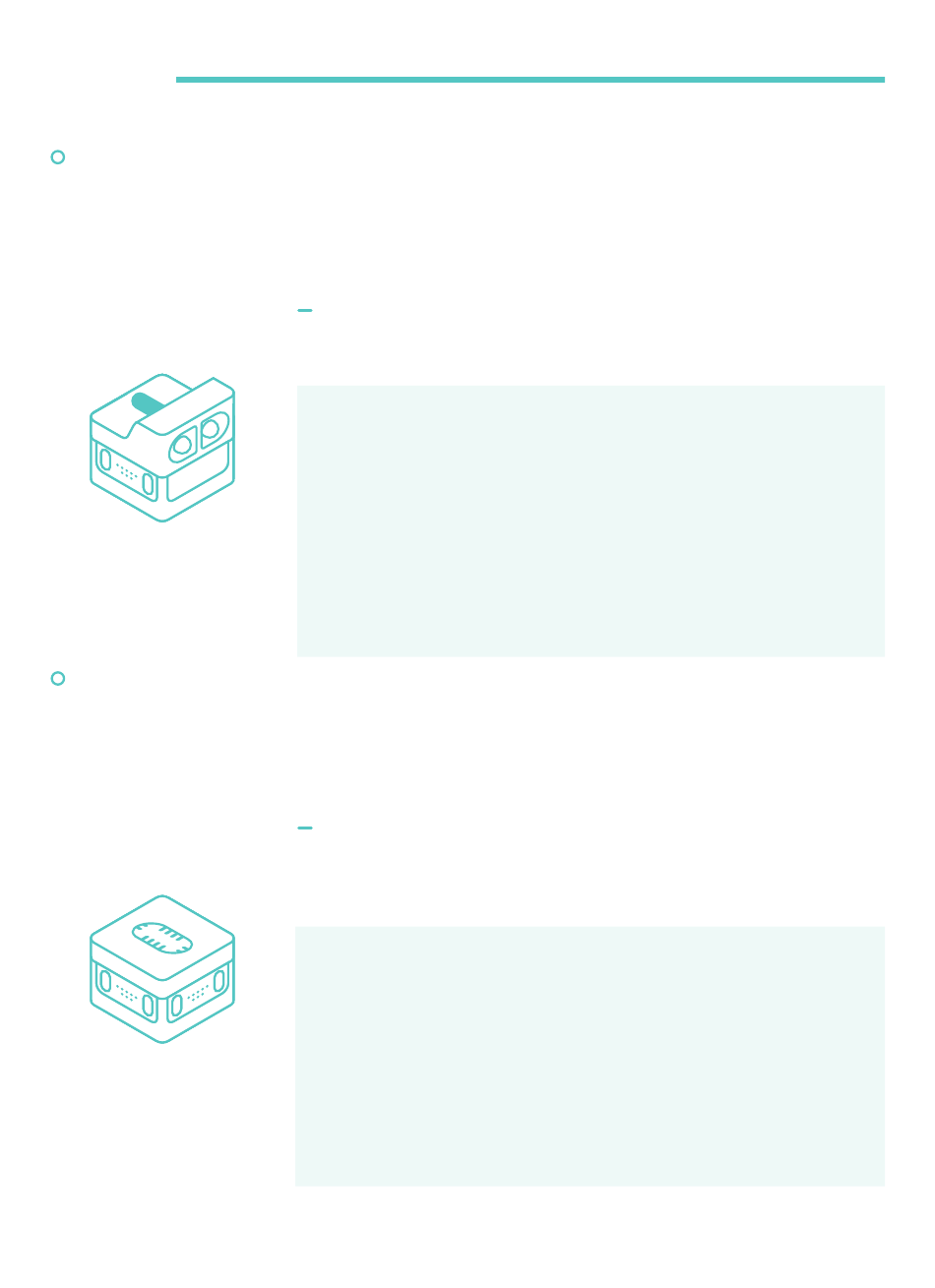

Infrared module
Infrared module
Mic module
The Infrared module detects the amount of infrared rays which have been
emitted and reflected back to the module. It measures proximity based on
the amount of infrared rays reflected.
Features
Measurement of proximity
[Product specifications]
Size
23.8*23.8*21.5 (mm)
Weight
12g
[Sensor specifications]
Measurable range Appr. 0cm - 30cm (based on white paper)
*Due to light's characteristics, results may vary depending on curves, reflectivity,
and the colors of the reflective surface.
Connection Magnetic connector X 2
The Mic module uses changes in air pressure created by sounds. It measures
the volume or frequency of sounds.
Features
Measurement of volume
Measurement of frequency
[Product specifications]
Size
23.8*23.8*16.4 (mm)
Weight
11g
[Sensor specifications]
Measurable volume
Measurable frequency
Connection
0cnt - 1,000cnt
50Hz - 400Hz
Magnetic connector X 4

INPUT module

06
MODI
