CDX-36150 Recorder - Getting Started Guide v1.1
Follow these steps to mount the CDX-36150 to the C700:
• Ensure the C700 is switched off and power is disconnected prior to installing the CDX-36150.
• Remove the battery adapter that comes attached to the camera.
• Slide the release catch on the top of the CDX-36150.
• Lower the CDX-36150 onto the rear of the C700 to mate the connector interface.
• Close the locking lever to fully mate the interface connector.
5

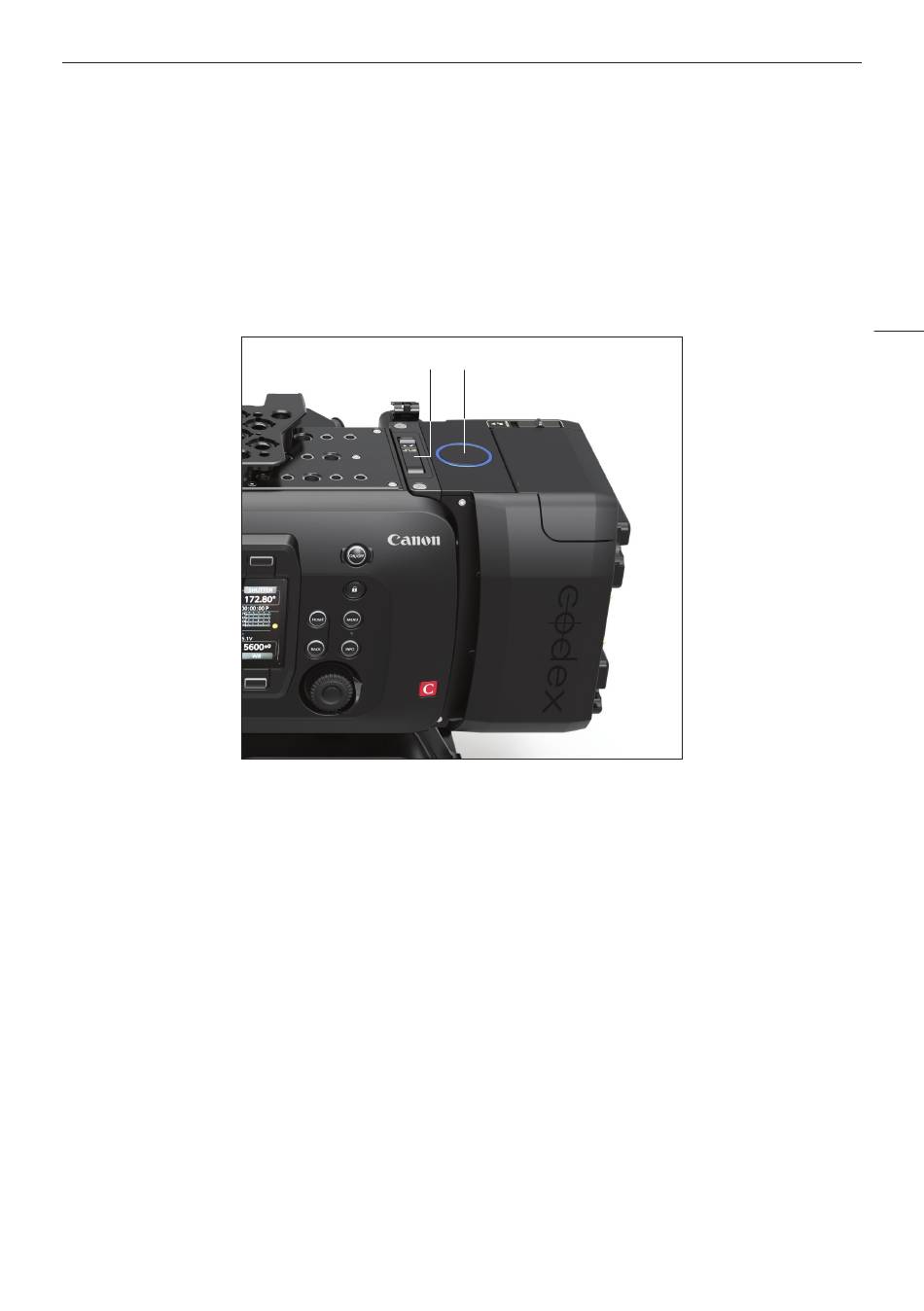

RELEASE CATCH LED STATUS RING
Follow these steps to remove the CDX-36150 from the C700:
• Ensure the C700 and CDX-36150 are switched off and power is disconnected.
• Remove the battery if fitted to the CDX-36150.
• Slide the release catch on the top of the CDX-36150.
• Lift the CDX-36150 from the rear of the C700 to unmate the connector interface.
• Remove the CDX-36150 from the C700.

3 Power requirement

The CDX-36150 has both a DC input and a mounting plate to attach batteries directly.
The CDX-36150 requires an input voltage of 11-34V. Power supplied to the CDX-36150 is fed through to
the C700. The CDX-36150 and C700 has a total power requirement of 120W.
The CDX-36150 takes the DC input as the primary power source, and switches over to the battery when
there is no DC input power source. When a battery is directly attached this allows for switching of the DC
input power source, which may be from a larger block battery, without powering off the camera system.
The CDX-36150 can be purchased with either an Anton Bauer Gold Mount or IDX V-Lock battery plate.
