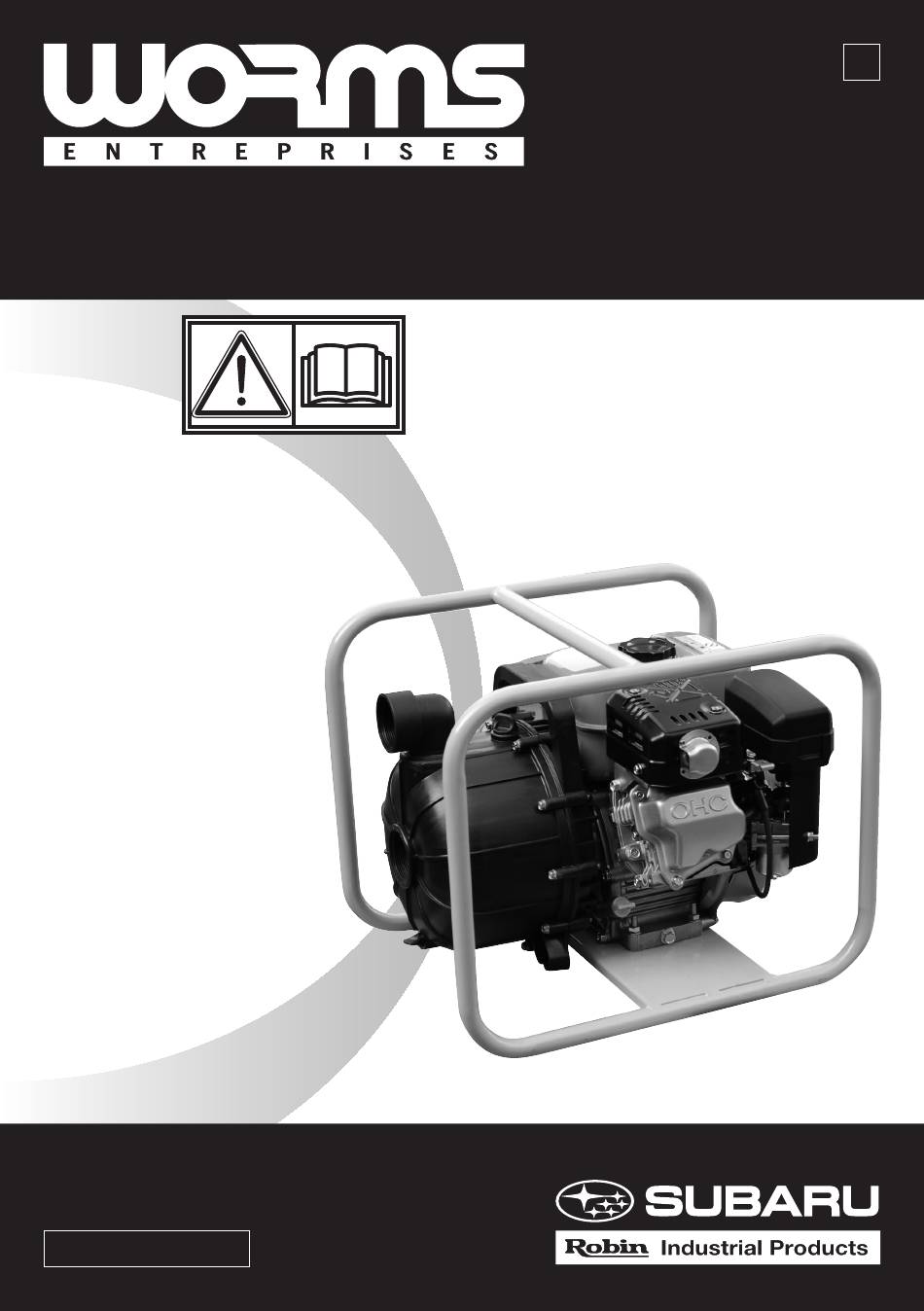

  • Page 1 INSTRUCTIONS FOR USE PUMP MODEL P 52 EX MU_P52EX_GB...
  • Page 2 Thank you for purchasing a Worms Entreprises pump set powered by ROBIN SUBARU. This manual covers operation and maintenance of the pump set. Please read this manual carefully. For any further information please contact our after sales service at: WORMS ENTREPRISES S.A.S.
  • Page 3: Table Of Contents

    SUMMARY 1 - GENERAL PRESENTATION ............PAGE 2 - SAFETY INSTRUCTIONS .............. PAGE 3 - SPECIFICATIONS ................PAGE 4 - PREPARING THE PUMP FOR OPERATION ......PAGE 5 - PUMP SET USE .................. PAGE 6 - MAINTENANCE SCHEDULE ............PAGE 7 - MAINTENANCE GUIDE ..............
  • Page 4: General Presentation

    1. GENERAL PRESENTATION The unit is made up of the following: - A clear or fresh water centrifugal pump set powered with a Robin Subaru gasoline engine delivering 45 M - The inlet and outlet ports are of a diameter of 2“ BSP, delivered with couplings and strainer.
  • Page 5 2-4. OTHER SAFETY PRECAUTIONS Never get too close to moving parts or hot parts of the engine or pump when it’s running. Never let someone run the pump set without proper understanding of the manual and safety instructions. Start by familiarising yourself with emergency stopping procedure as well as all aspects of safety controls to be made on the pump set before starting the engine.
  • Page 6: Specifications

    3. SPECIFICATIONS P 52 EX Pump Type of Pump Self priming Suction Ø coupling 50 mm Delivery Ø coupling 50 mm Maximum flow 750 L/min - (45 m Pressure 3,8 bars Maximum total head 38 m Maximum suction head Solid size Ø Mechanical seal Carbone silicium Engine...
  • Page 7: Preparing The Pump For Operation

    - Use an engine oil with a viscosity de 10 W 30 for ambient temperature between -15°C to + 35°C - If the conditions of use should exceed these limits, please contact WORMS ENTREPRISES concerning the correct type of oil to use.
  • Page 8 carburettor could become faulty, blocked with foreign bodies. - The tank contains 3,6 litres. - Wipe off any spilt fuel thoroughly. - Always stop the engine before refilling the fuel tank. 4-5. FILLING THE PUMP BODY WITH WATER Fill the pump body with water through the fill plug located on the top of the casing, before starting the engine.
  • Page 9: Pump Set Use

    5. PUMP SET USE 5-1. STARTING Place the engine speed control in the maximum position. Turn the engine switch to the on position. Pull the recoil starter gently, when the effort increase due to the compression, bring the recoil handle to its original position. Then pull the recoil starter swiftly to start the engine, once the engine starts, return the handle slowly to its original position.
  • Page 10 6-2. REGULAR INSPECTION In order to maintain correct pump set performance it is necessary to follow the recommended maintenance schedule as below. The schedule is based on a regular use of your pump set. This indicates that special tools or skills are required. Consult your local dealer. 8 hours Every : 100 h...
  • Page 11: Maintenance Guide

    7. MAINTENANCE GUIDE 7-1. HOW TO CHANGE THE OIL - First oil change after 25 hours. - The following after 100 hours intervals. • When the engine is still hot, remove the drain plug. To increase the flow, remove the oil dipstick from its hole.
  • Page 12: Troubleshooting

    8. TROUBLESHOOTING NOTE : If you need to contact WORMS ENTREPRISES., remember to note the engine serial number and type. 8-1. THE PUMP DOES NOT TURN OVER: Le moteur ne démarre pas (voir § 7-4) La turbine est grippée : démonter et nettoyer.
  • Page 13: Preparation For Storage

    9. PREPARATION FOR STORAGE 9-1. DRAIN THE WATER FROM THE PUMP - Remove the drain plug. Clean the tapped hole before replacing the drain plug to avoid damaging the thread. 9-2. DRAIN THE FUEL The procedure is as follows: - Remove the fuel strainer cup. - Turn the fuel cock to the open position.
  • Page 14: Spare Parts

    10. SPARE PARTS EXPLODED VIEW Kit pompe complet EPDM/POLYEST P-58-15U4 Impeller P58-0704-30 Check valve EPDM P58-0705-72 11;13;14 Shaft seal EPDM P58-0714-12 O ring EPDM P58-0717-72 O ring EPDM P58-0719-72 Stainless steel nut P58-0721-10 Plug P58-0722-30B Drain plug P58-0723-30 Screw for Volute P58-0725-10 O ring EPDM P58-0754-72...
  • Page 16 MU_P52EX_GB MU-P52EX-GB V28032011FR Head Office Parc Gustave Eiffel - 1 Bd. de Strasbourg - Bussy Saint Georges - 77607 Marne la Vallée - Cedex 3 - FRANCE Standard Commercial service After sales service TEL. +33 (0) 1 64 76 29 50 TEL.
