Summary of Contents for Miller Vi-Go

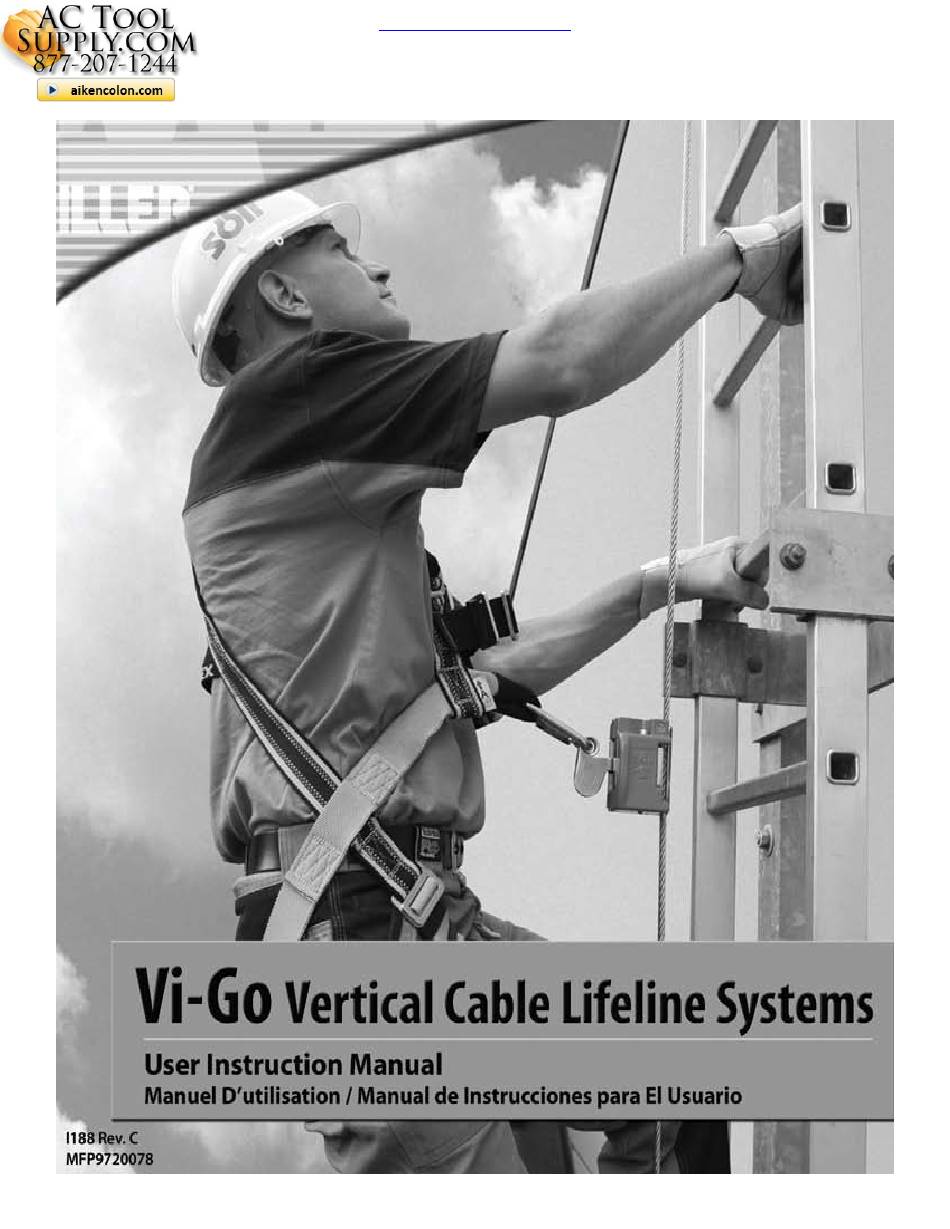

- Page 1 actoolsupply.com actoolsupply.com actoolsupply.com...
- Page 2 Miller Honeywell VG/140FT Vi-Go Ladder Climbing Safety System Miller TRS/50FT Vi-Go Ladder Climbing Safety System Kit Miller Honeywell TRS/60FT Vi-Go Ladder Climbing Safety Cable System Miller Honeywell TRS/70FT Vi-Go Ladder Climbing Safety Cable System Miller Honeywell TRS/80FT Vi-Go Ladder Climbing Safety Cable System...
-
Page 3: Table Of Contents
2.1 General Fall Protection Warnings 2.2 System Warnings and Limitations 3.0 System Requirements....................5 4.0 System Diagrams and Description of Components............. 6-8 4.1 Vi-Go AUTOMATIC PASS-THROUGH System 4.2 Vi-Go MANUAL PASS-THROUGH System 4.3 System Replacement Parts 5.0 System Installation....................... 8-14 5.1 Installation of Top Bracket Assembly... -
Page 4: Purpose
Us er Instr ucti on s - E ngl ish Thank You Thank you for your purchase of Miller Fall Protection equipment. Miller brand products are produced to meet the highest standards of quality at our ISO 9001:2000 certified facility. Miller Fall Protection equipment will provide you with years of use when cared for properly. -
Page 5: System Warnings And Limitations
A maximum of four users may simultaneously be connected to a Vi-Go Vertical Cable Lifeline System so long as the load-bearing capacity of the base structure is adequate. For Vi-Go Systems using the 10 ft. (3m) top bracket assembly, the number of users is limited to two. -
Page 6: System Requirements
3.0 System Requirements Before installation of a Vi-Go System, the structure or ladder on which the system is to be affixed must be certified to be capable of withstanding the potential loads that may be applied in the event of a fall arrest and must meet the specified ladder requirements. -
Page 7: System Diagrams And Description Of Components
• Accommodates curved structures. • Automatic pass-through feature allows the Vi-Go Au- tomatic Pass-Through Cable Sleeve to bypass guide without manual assistance, offering the user greater comfort through hands-free trailing, quicker climbing and descending, and the highest level of safety. -
Page 8: Vi-Go Manual Pass-Through System
Us er Instr ucti on s - E ngl ish 4.2 Vi-Go MANUAL PASS- THROUGH System 1) Top Bracket Assembly with Inline Shock Absorber • Inline shock absorber reduces the forces imposed on the system and structure in the event of a fall. -
Page 9: System Replacement Parts
(see 8.0 Inspection and Maintenance). Do not use if there are any damaged or missing parts (see 4.3 System Replacement Parts). • Ensure that the structure/ladder on which the Vi-Go System is to be affixed is capable of withstanding loads resulting from a fall (see 3.0 System Requirements). -
Page 10: Installation Of Top Bracket Assembly
actoolsupply.com Us er Instr ucti on s - E ngl ish 5.1 Installation of Top Bracket Assembly Fig. 1b Fig. 1a The top bracket assembly may be installed to extend above the ladder to allow workers to step safety onto the platform without disconnect- ing from the lifeline. -
Page 11: Installation Of Cable To Top Bracket Assembly
Us er Instr ucti on s - E ngl ish 5.2 Installation of Cable to Top Bracket Assembly Use only Miller approved cable. Inspect cable before installation. Do not install damaged cable. Safety glasses and gloves should be worn when handling cable. -
Page 12: Installation Of Bottom Bracket Assembly
actoolsupply.com Us er Instr ucti on s - E ngl ish Fig. 4a MANUAL Pass-Through Cable Guides Typical Installation 1. Place cable guide on top of ladder rung (see Fig. 4a). 2. Install U-bolt around underside of ladder rung and through holes provided in cable guide. - Page 13 actoolsupply.com Us er Instr ucti on s - E ngl ish 5.5 Installation of Cable Fig. 6 and Tensioning Assembly to Bottom Bracket Assembly 1. Install saddle clips loosely around cable attached to tension rod (see Fig. 6). 2. Slide the tension rod down the cable and through the hole in the bottom bracket until a sufficient amount of threads are through to install the com- pression spring, washer and tensioning nut.
-
Page 14: Options For Terminating Cable In The Field
actoolsupply.com Us er Instr ucti on s - E ngl ish 5.6 Options for Terminating Cable in the Field Options are available for terminating the cable in the field for increased versatility during installation to accommodate variable cable lengths. These options are compatible with 3/8”... -
Page 15: Optional Vi-Go Anchorage Connector
Training is an integral part of our Total Solution in fall protection, since no fall protection equipment – regardless of how effective – can save an employee who is not trained in its use. To meet this crucial requirement, Miller Train- ing provides the knowledge and skills necessary to achieve a safe, more productive work environment. -
Page 16: Inspection And Maintenance
Cleaning and Storage Basic care of all Miller Fall Protection equipment will prolong the life of the unit and will contribute toward the performance of its vital safety function. Proper storage and maintenance after use are as important as cleansing the equipment of dirt, corrosives, or contaminants. -
Page 17: Inspection And Maintenance Log
actoolsupply.com Inspection and Maintenance Log Registre D'inspection et D'entretien Registro de Inspección y Mantenimiento DATE OF MANUFACTURE:_________________________________________________ DATE DE FABRICATION / FECHA DE FABRICACIÓN MODEL NUMBER:________________________________________________________ NUMÉRO DE MODÈLE / NÚM. DE MODELO DATE PURCHASED:______________________________________________________ DATE D’ACHAT / FECHA DE COMPRA INSPECTION MAINTENANCE CORRECTIVE... -
Page 18: Warranty
Les produits de protection contre les chutes Miller sont soumis à des essais pour vérifier qu’ils résistent à une usure normale; ils ne sont cependant pas indestructibles et peuvent s’endommager en cas de mauvaise utilisation. Notre garantie limitée à... - Page 19 actoolsupply.com actoolsupply.com...
