C42 SERIES Pilot Operating Handbook
c.) Control surface deflections

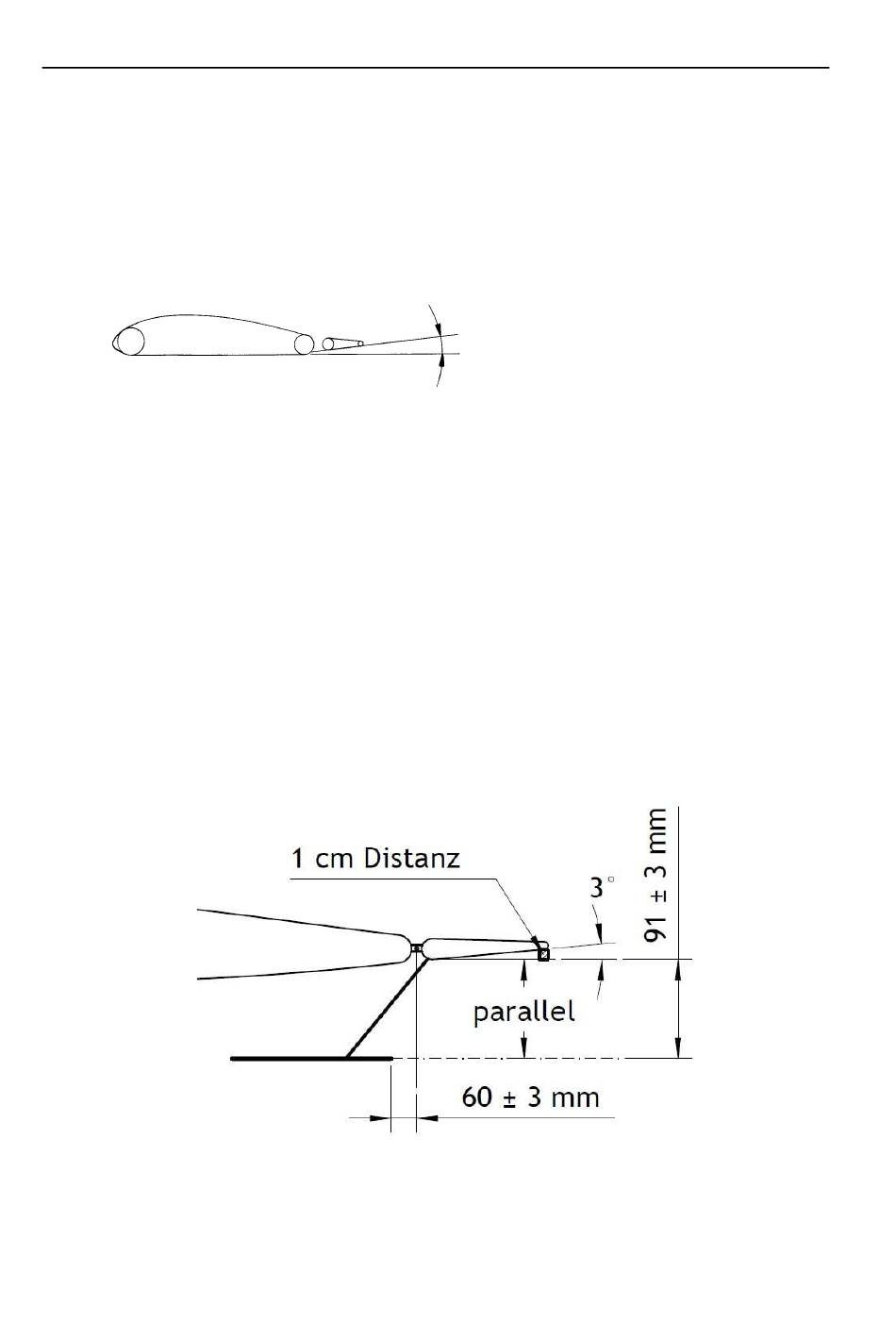

Note: The angle of the aileron bottom relative to the wing chord is -5°
(tangent front to rear spar).
It is defined by the length of the aileron push rods.
Aileron
Neutral
Up
Down
Measuring point distance from the steering axis: ............... 9.84" (250 mm)
Spade settings on the aileron in the C42C and C42CS model
Spade angle in relation to the QR-bottom ...................................... +3° ± 1°
Measurement with water level at base of 1 cm under aileron end strip
POH Issue 4 Rev. 5
-7°±-1°
20°±-2°
14°±-2°
-5°
Distance from axis of rotation
-1.38" ± 0.39" (-35 mm ± 10 mm)
3.54" ± 0.39" (90 mm ± 10 mm)
2.76" ± 0.39" (70 mm ± 10 mm)
Page 54 of 91
