PILOT OPERATING HANDBOOK
Modell Nr.
LTZ-Nr.
Type
Airplane Registration No.
Airplane Serial-No.
Reference: POH C42 Series Issue-2 (B) rev.10
This handbook is to be kept in the aircraft at all times.
The described options of the C42 Series use are certified for Germany and
have been tested in Germany.
Please note that for using the C42 Series as a towplane for towing gliders,
towing aerial signs or decanting sky divers, different regulations may apply in
different countries. Please contact your local authorities for further
clarification.
POH C42 Series Issue-2 (B) rev10

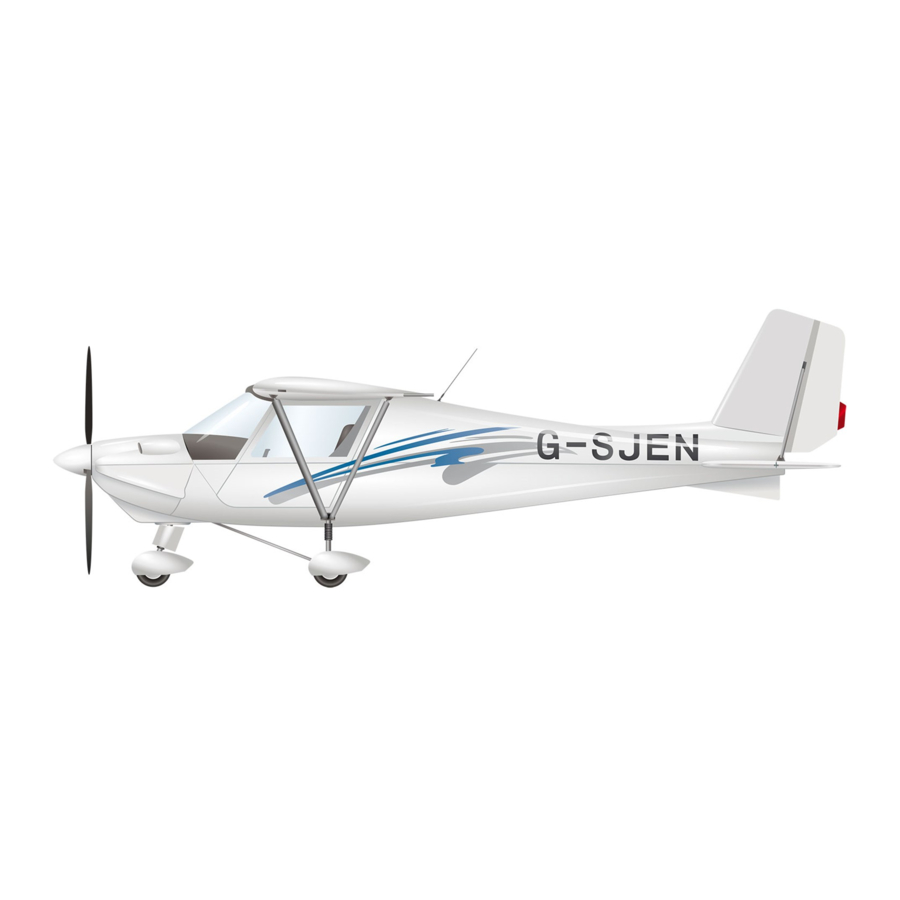

for the aircraft IKARUS C 42 Series
C42 / C42B / C42C
61141 / 61141.1 / 61141.5
IKARUS C 42 Series
__________________________
__________________________
30.10.2013
Page 1 of 72
