Instruction manual
0

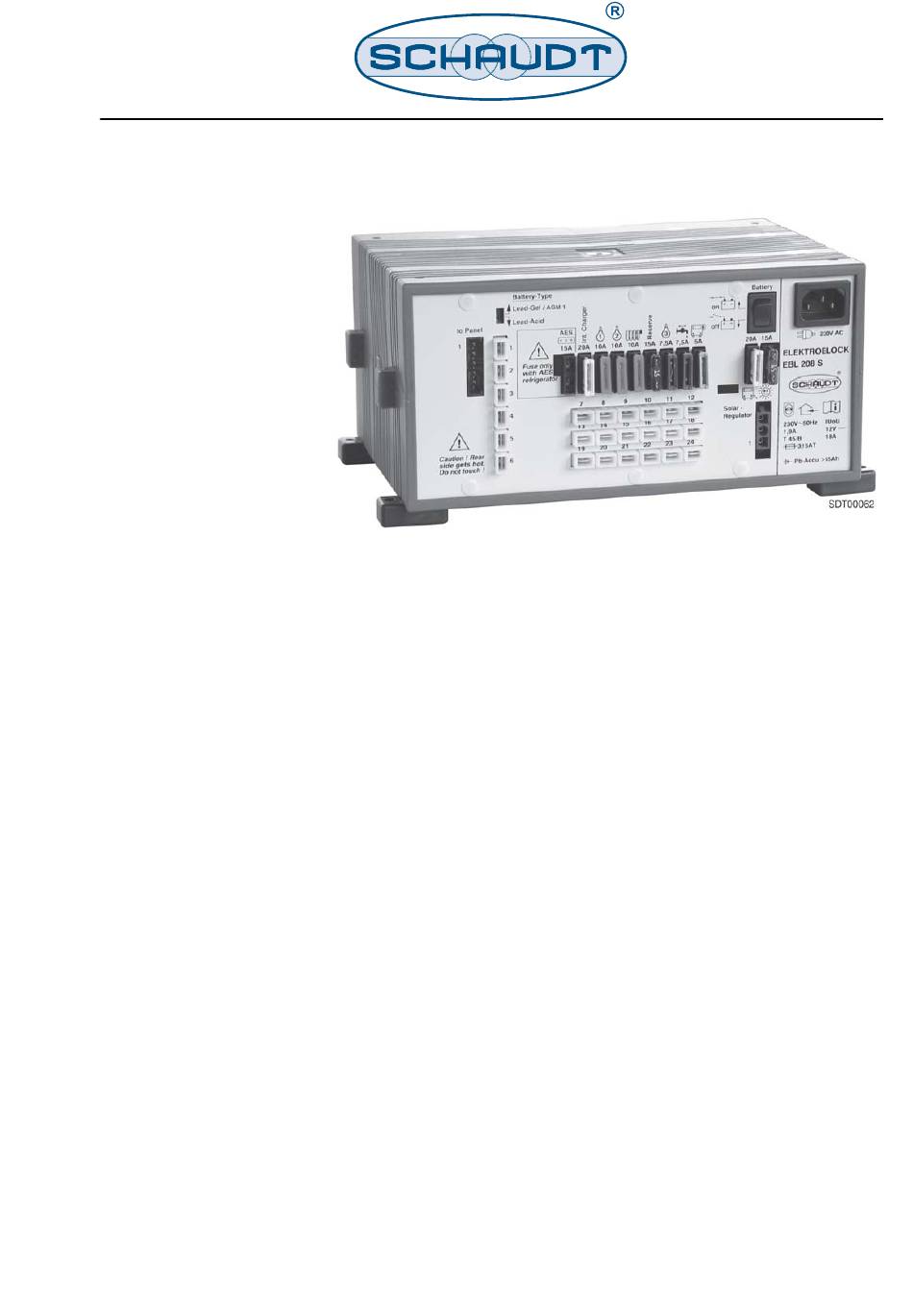

Instruction Manual Electrobloc EBL 208 S G
Electrobloc EBL 208 S G
Table of contents
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3
Description and appropriate use . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4
Suitable accessories (not supplied) . . . . . . . . . . . . . . . . . . . . . . . 4
5
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
7
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
8
Shutting down the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
9
Changing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
10
Technical faults, possible causes and remedies . . . . . . . . . . . . . . 9
11
Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
12
Block diagram - for specialist workshop only . . . . . . . . . . . . . . . . 11
13
Fault report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Edition: 20.11.2018
Advertisement
Table of Contents
Related Manuals for Schaudt Electrobloc EBL 208 S G
Summary of Contents for Schaudt Electrobloc EBL 208 S G
-
Page 1: Table Of Contents
Fault report......... . 12 © 2018 Schaudt GmbH, Elektrotechnik & Apparatebau, Planckstraße 8, D-88677 Markdorf, Phone +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt-gmbh.de 8110600 BA / EN Edition: 20.11.2018... -
Page 2: Introduction
The Electrobloc may not be modified. ▲ The electrical connection may only be done by qualified personnel and ▲ must be carried out according to the Schaudt installation instructions. Electrical connections are to be carried out in tensionless condition ▲ only. -
Page 3: Description And Appropriate Use
12 hours with an 80 Ah battery and 16 hours with a 160 Ah battery. Do not operate the Schaudt solar charge regulator without a battery. This ▲ might damage the solar charge regulator or any connected consumers. If the battery is going to be changed or removed, please first take off the pos- itive lead "+ Solar Module"... -
Page 4: Suitable Accessories (Not Supplied)
8 Flat vehicle fuses Suitable accessories (not supplied) Solar charge regulator Schaudt solar charge regulator type LR... for solar modules with a total cur- rent of 14 A with connector plug, including 0.5 m cable Fuse cover Blue fuse cover marked "FUSE", type no. 106.120... -
Page 5: Operation
Instruction Manual Electrobloc EBL 208 S G Starter battery Charging current Float charge of starter battery at max. 2 A Battery charging via solar Only the living area battery is charged. charge regulator Maximum charging current 14 A, fuse-protected by 15 A fuse... - Page 6 Instruction Manual Electrobloc EBL 208 S G When the battery cut-off switch is switched off the frost protection valve on ▲ the heater system opens automatically. Water may be lost. For more infor- mation, see the instruction manual of the heater system.
-
Page 7: Maintenance
12 hours with an 80 Ah battery and 16 hours with a 160 Ah battery. Do not operate the Schaudt solar charge regulator without a battery. This ▲ might damage the solar charge regulator or any connected consumers. If the battery is going to be changed or removed, please first take off the pos- itive lead "+ Solar Module"... -
Page 8: Changing The Battery
Instruction Manual Electrobloc EBL 208 S G Changing the battery Batteries may only be changed by qualified personnel. ▲ Follow the instructions of the battery manufacturer. ▲ To electrically disconnect the battery from the Electrobloc, all you need to ▲... -
Page 9: Technical Faults, Possible Causes And Remedies
If this is not possible, for example if you are abroad, you can have the Elec- trobloc repaired at a specialist workshop. Inexpert repairs invalidate the guarantee for the Electrobloc and Schaudt GmbH takes no liability for any resulting damage. -
Page 10: Customer Service
Instruction Manual Electrobloc EBL 208 S G Fault Possible cause Remedy 12 V power supply in the 12 V main switch for the liv- Switch on the 12 V main living area does not work ing area battery is switch for the living area... -
Page 11: Block Diagram - For Specialist Workshop Only
+ Light 3 + Step Schaudt solar charge regulator LR... Circuit board KPL EBL 208 S with cable MNL – socket cap 3x SDT00133 Fig. 2 Block diagram for Electrobloc EBL 208 S G 8110600 BA / EN Edition: 20.11.2018... -
Page 12: Fault Report
Instruction Manual Electrobloc EBL 208 S G Fault report In the event of damage, please return the defective device together with the completed fault report. Device type: EBL 208 S G Type no.: _________________ There is the following defect: (please tick)
