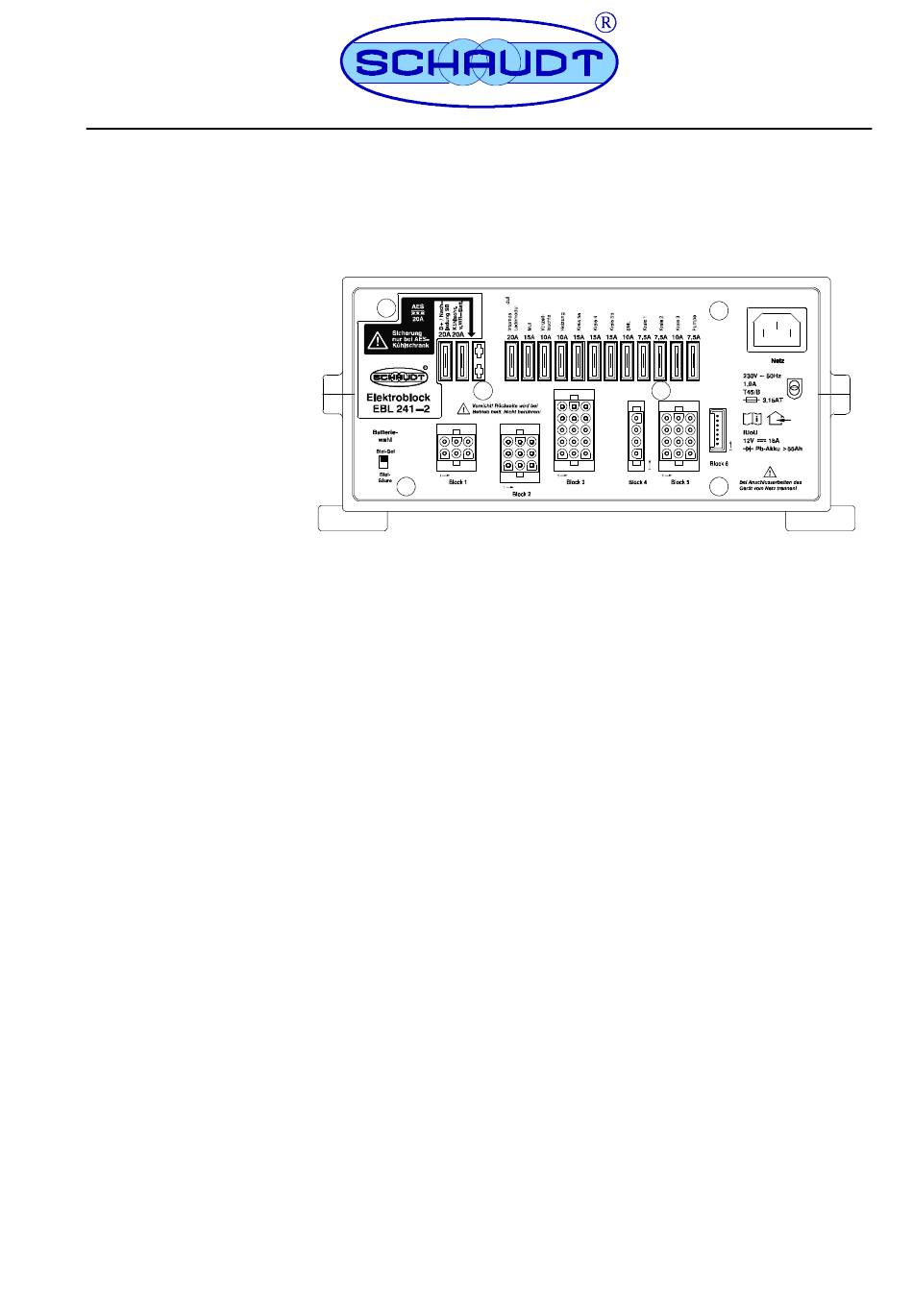

E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
8110514 BA / EN
Instruction Manual
EBL 241-2 Electroblock
Table of contents
1
1.1
1.2
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
3.2
3.3
3.4
4
4.1
4.2
5
5.1
5.2
5.3
6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
2
3
3
3
3
4
6
6
7
8
8
8
8
9
9
10
Date: 16.07.2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schaudt EBL 241-2 Electroblock
Summary of Contents for Schaudt EBL 241-2 Electroblock
-
Page 1: Table Of Contents
..........E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 8110514 BA / EN Date: 16.07.2019... -
Page 2: Safety Information
Instruction Manual for Electroblock EBL 241-2 Safety information Meaning of safety symbols DANGER! Failure to comply with this sign may result in danger to life or physical con- dition. WARNING! Failure to comply with this sign may result in injury. ATTENTION! Failure to comply with the sign may result in damage to equipment or other connected loads. -
Page 3: Introduction
The electroblock is operated solely from the LT ... operator and control panel connected. . Operation on the EBL 241-2 electroblock is not required for daily use. One-off adjustments only have to be made if the battery type is changed, during initial start-up or when retrofitting accessories (see Section 3.2 and... -
Page 4: Operating Faults
If this is not possible, e.g. if you are abroad, you can have the electroblock repaired at a specialist workshop. In this case, you must ensure that the warranty is not invalidated by incorrect repairs being carried out. Schaudt GmbH will not accept any liability for damage resulting from such repairs. - Page 5 Instruction Manual for Electroblock EBL 241-2 Fault Possible cause Remedy Leisure area battery is not No mains voltage Switch on the automatic charged during 230V ope- d d i 230V circuit breaker in the vehi- ration (battery voltage ration (battery voltage cle;...
-
Page 6: Closing Down The System
Follow the battery manufacturer’s instructions. Application and functions in detail The EBL 241-2 electroblock is the central power supply unit for all 12V con- sumers in the vehicle’s electrical system. It is usually located in a cupboard or storage area and is accessible from the front in order to change fuses. -
Page 7: Battery Functions
Instruction Manual for Electroblock EBL 241-2 Protective circuits of the Excess temperature charging module Overload Short circuit Mains connection 230V AC 10%, 47 to 63 Hz sinusoidal, protection class I Current-carrying 12V outputs may be loaded with max. 90% of the rated current of the re- capacity spective fuse (also see front panel). -
Page 8: Additional Functions
Instruction Manual for Electroblock EBL 241-2 Start of a new charging cycle by switching over to main charge, if the battery voltage falls below 13.8V for more than 5 seconds when loaded. Start of charge also for completely discharged batteries. The internal charge module can also be operated without leisure battery. -
Page 9: Environmental Parameters
Operation in dry environment only CE mark Maintenance The EBL 241-2 electroblock requires no maintenance. Cleaning Clean the electroblock with a soft, slightly damp cloth and mild detergent. Never use spirit, thinners or similar substances. Do not allow liquids to enter the electroblock. -
Page 10: Appendix
Instruction Manual for Electroblock EBL 241-2 Appendix EC Declaration of Conformity Schaudt GmbH hereby confirms that the design of EBL 241-2 electroblock complies with the following relevant regulations: The original EC declaration of conformity is available for reference at any time. - Page 11 Instruction Manual for Electroblock EBL 241-2 Fault report In the event of damage, please fill in the fault report and send it with the faulty device to the manufacturer. Device type: _______________________ Item no.: _______________________ Vehicle: Manufacturer: _______________________ Model: _______________________ Own installation? Yes - No - Upgrade?

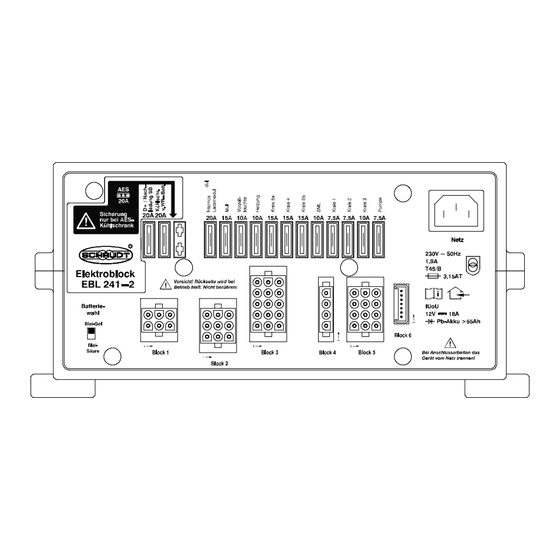

- Page 12 Instruction Manual for Electroblock EBL 241-2 Layout Fig. 4 Layout of the EBL 241-2 electroblock (front) AES/compressor fridge fuse Connector block, heating, circuits 4 and 5, Flat vehicle fuses side marking lights, awning light Low power device socket, 230V AC mains connection Connector block, multimedia (radio), pump LT ...
- Page 13 Instruction Manual for Electroblock EBL 241-2 Block diagram/wiring diagram Charging relay for starter The negative pole of the living battery area battery must be connected externally to the negative pole of the starter battery. No cut- -off relay due to booster operation Changeover E20-3F switch...
- Page 14 Instruction Manual for Electroblock EBL 241-2 (blank page) Date: 16.07.2019 8110514 BA / EN...
