2.4 MOUNTING
The Smoke Screen can be mounted on a ceiling or a wall using the simple standard bracket supplied with
the unit. This flush-fitting bracket maximizes security by concealing all the mounting fastenings such that
they can only be accessed, or the Smoke Screen dismounted, by dismantling the unit. Moreover, the
Smoke Screen has a tamper protection switch to provide an alert in the unlikely event that it is disturbed.
In all cases, the installer must attach the Smoke Screen to the building structure using appropriate
fasteners.
NB: When mounting the Smoke Screen ensure that the airflow through the vent holes in the rear of the
unit is not obstructed.
Wall and ceiling mounting
Ceiling or wall mounting is the same process except that rather than fixing the Smoke Screen direct to a
ceiling an intermediate unistrut section may be used or it can be suspended as described in the next
section.

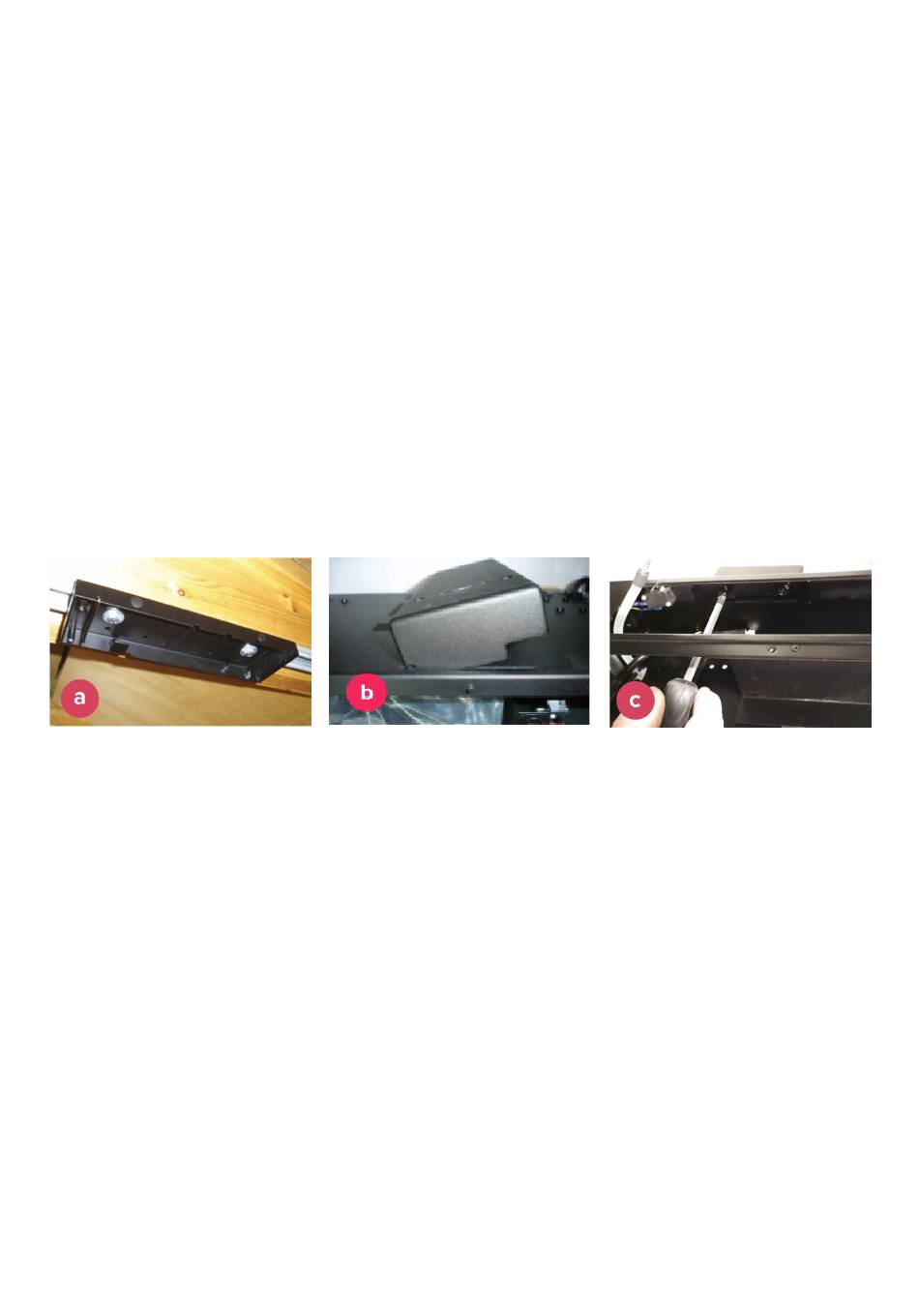

Attach the bracket to the wall or
ceiling using appropriate fixings.
Carefully hook the slots on the back
of the Smoke Screen onto the
bracket (for clarity, shown above not
attached to the ceiling/wall). Slide
along to align the screw fixing holes.
The unit will now hang on the
bracket.
Fit, and ensure tight, 2 x M6 set
screw with washer in the hole in the
back of the Smoke Screen alongside
each of the two mounting slots.
Access to the fixing holes is through
the fluid and heater block
compartments.
