SEA STK3-GMV10 Manual For Installation And Use

Control panel and pre-wiring for hydraulic elevators
Hide thumbs Also See for STK3-GMV10:
Table of Contents

Advertisement

Quick Links

Download this manual

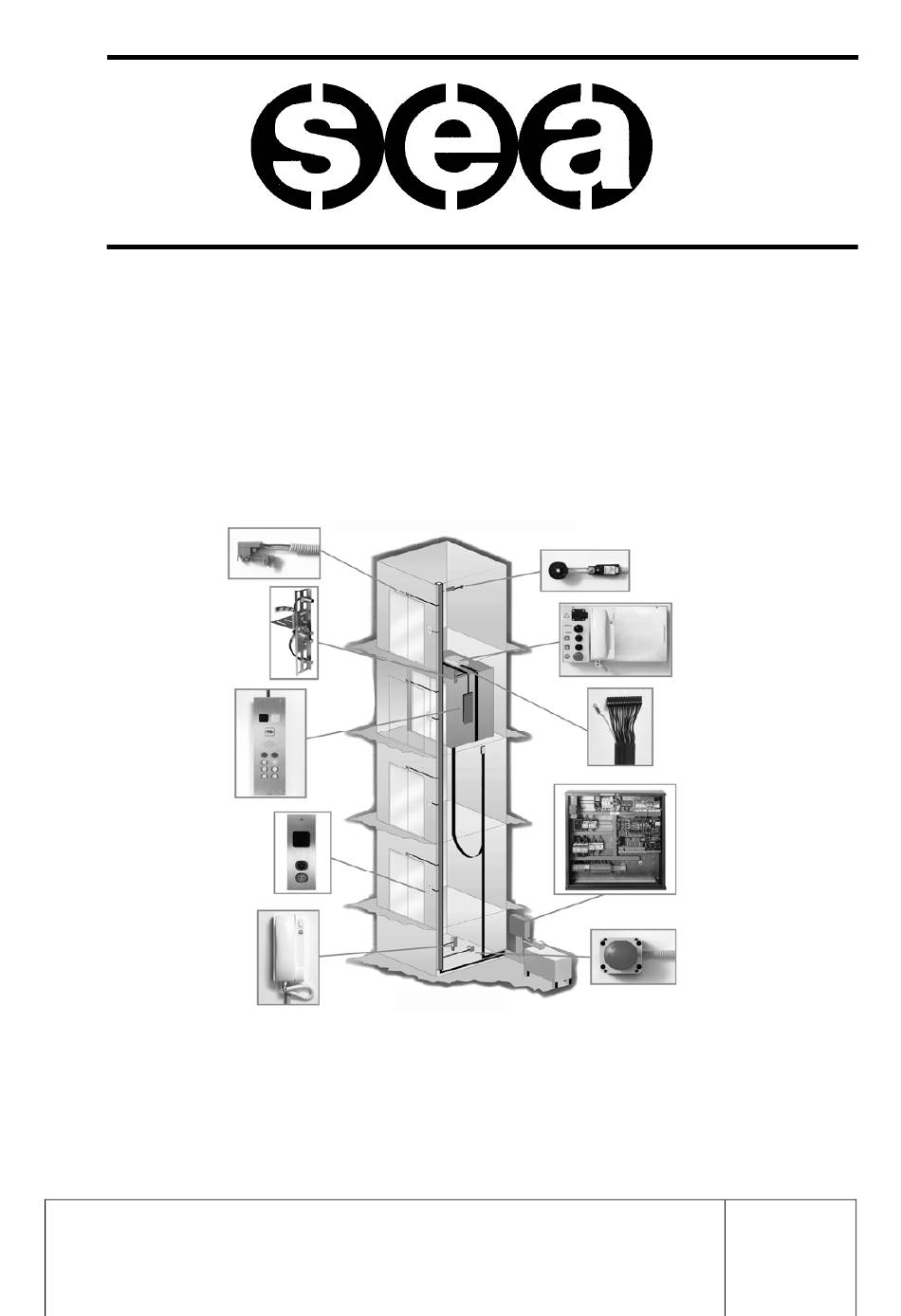

MANUAL FOR
INSTALLATION AND USE
STK3-GMV10
Control panel and Pre-wiring
For Hydraulic Elevators
SEA SYSTEMS S.
.
R
L
MSTK3-GB
Control Panels, Button Panels and Pre-wired Systems for Elevators
Rev.04
Via San Carlo 13 - 20010 Bareggio - Milan - ITALY
05/02/12
Tel: +39 02 90 36 34 99 - Fax: +39 02 90 36 35 00
Internet: www.seasystems.it - e-mail: sea@seasystems.it
