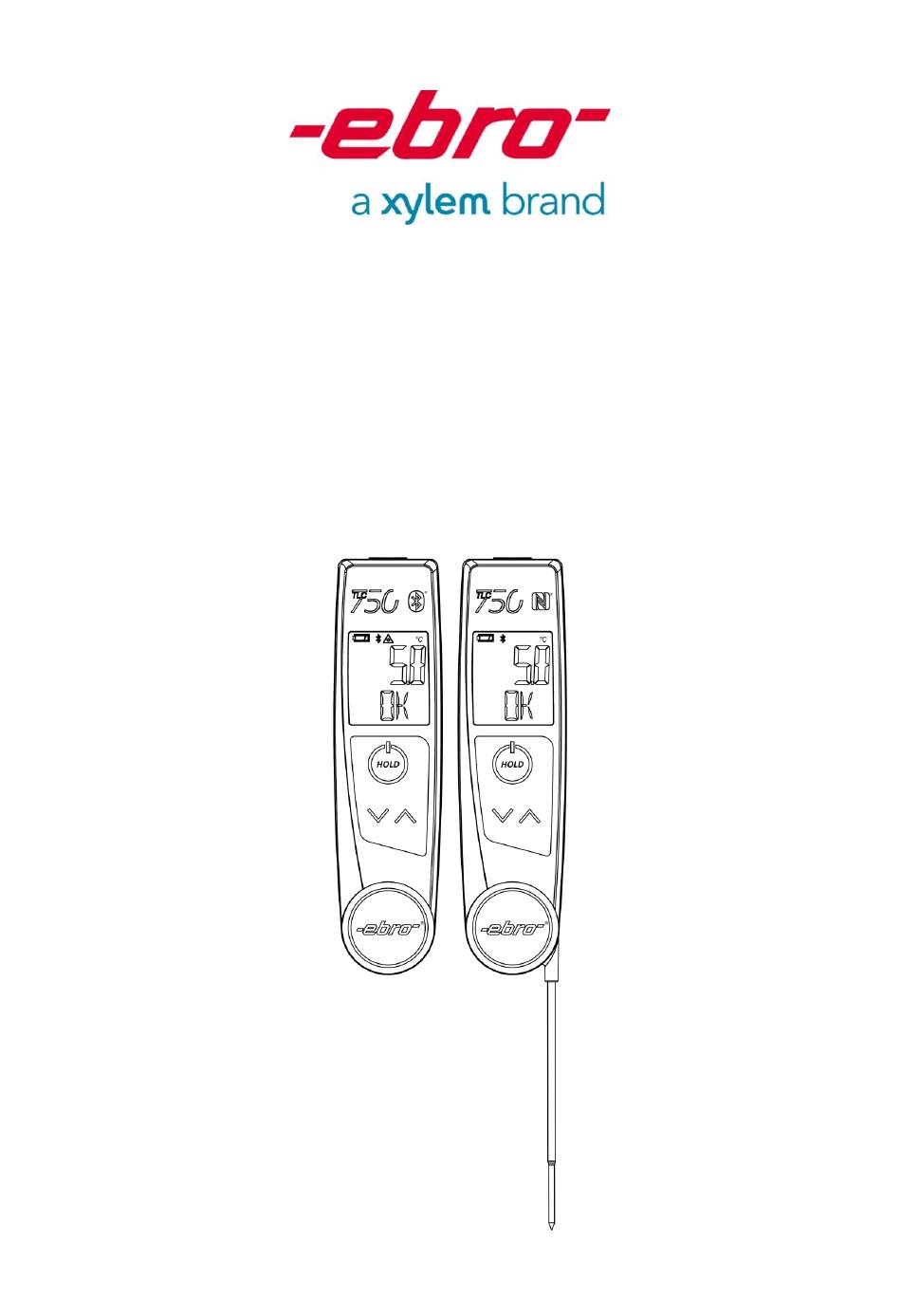

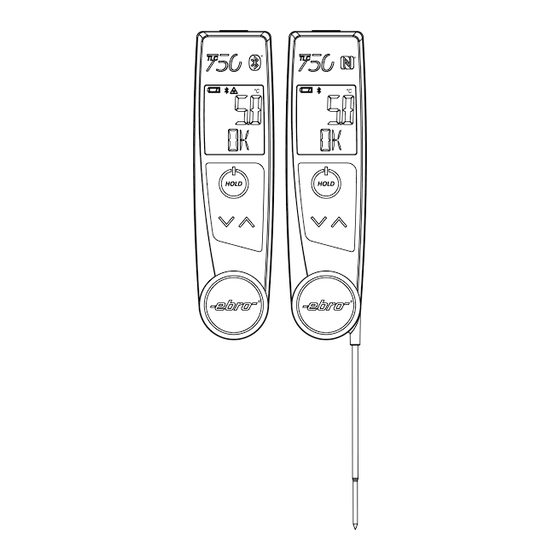

- Page 1 Operation Manual Dual Radio Thermometer TLC 750 BT TLC 750 NFC BA_TLC750_NFC_BT_ENG_07...
-
Page 2: Table Of Contents
TLC 750 BT / TLC 750 NFC Operation Manual Table of contents 1. Before working with the device ..................3 2. Overview ........................... 3 3. Safety instructions ......................4 4. Precautions ........................4 5. Device operation ....................... 5 5.1 Switching on ........................5 5.2 Switching off ........................ -
Page 3: Before Working With The Device
TLC 750 BT / TLC 750 NFC Operation Manual 1. Before working with the device • Please read the operating instructions carefully. • Familiarize yourself with your new device, get to know all the functions and components, learn important details for commissioning and the handling the device and get tips for the case of a malfunction. -
Page 4: Safety Instructions
TLC 750 BT / TLC 750 NFC Operation Manual 3. Safety instructions The device is not suitable for children. Keep out of the reach of children! Risk of injury! There is a risk of injury when the probe needle is unfolded. Risk of contamination! In case of injuries with the probe needle you could contract dangerous germs! Burns! -
Page 5: Device Operation
TLC 750 BT / TLC 750 NFC Operation Manual 5. Device operation 5.1 Switching on The device can be switched on by pressing button or by unfolding the penetration probe. If penetration probe is folded, IRT measurement is active. Otherwise core temperature measurement is active. -
Page 6: Logging Modes
TLC 750 BT / TLC 750 NFC Operation Manual 5.5 Logging modes 5.5.1 AdHoc logging mode This mode offers real time measurement data transmission via a Bluetooth LE connection. In addition measurement values can be stored at internal storage memory for readout at a later time. -
Page 7: List Logging Mode
TLC 750 BT / TLC 750 NFC Operation Manual 5.5.2 List logging mode This operating mode offers a guided tour with display of the measuring locations. In addition measurement values can be stored at internal storage memory for readout at a later time. Device has to be programmed by host software with a tour list before list logging mode is active. -
Page 8: Settings Menu
TLC 750 BT / TLC 750 NFC Operation Manual 5.6 Settings Menu 5.6.1 Settings Menu Enter When device is switched off: press buttons and after that additionally button for 3 seconds. 5.6.2 Settings Menu Operation If menu is entered it is possible to change current displayed menu entry by the Buttons. -
Page 9: Settings Menu Entries
TLC 750 BT / TLC 750 NFC Operation Manual Settings 5.6.3 Menu Entries Menu entry LCD display “UNIT” Temperature unit [°C / °F] Default: °C “LASR” IRT Laser [ON / OFF] Default: ON “EMIS” IRT Emissivity [10..100] Default: 95 “AHLD” Auto Hold function for penetration probe [ON / OFF] Default: ON... -
Page 10: What To Do If
TLC 750 BT / TLC 750 NFC Operation Manual 6. What to do if... Failure Cause, Troubleshooting Temperature to be measured above + 250 ° C. Temperature to be measured below -50 ° C. Device can not be switched on: Battery empty. -
Page 11: Disposal
TLC 750 BT / TLC 750 NFC Operation Manual 9. Disposal If the device has become unusable, it must be disposed of in a way that is appropriate for the environment. Do not dispose of the device with household waste, but do it according to the specific national requirements legislation regarding recycling. -
Page 12: Technical Specifications
TLC 750 BT / TLC 750 NFC Operation Manual 10. Technical specifications * -50 … +250 °C Measuring Range Accuracy (at +23°C ± 1°C) Infrared: -50° C ... -30.1 °C ±4.0 °C -30 °C ... -18.1 °C ±2.5 °C -18 °C ... -0.1 °C ±1.5 °C 0 °C ... -
Page 13: Standardize
TLC 750 BT / TLC 750 NFC Operation Manual 12. Standards This product meets the requirements of the standard DIN EN 13485 Suitability: S, T (storage, transport) Environment: E Accuracy class: 0.5 According to DIN EN 13485 is a regular check and calibration of the meter necessary. 13. - Page 14 TLC 750 BT / TLC 750 NFC Operation Manual that to which the Receiver is connected. Consult the dealer or an experienced radio/TV technician for help. IC: 7412A-TLC750NFC This device contains IC: 5123A-BGM113 This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference;...
-
Page 15: Service Information
TLC 750 BT / TLC 750 NFC Operation Manual 14. Service information Xylem Analytics Germany Sales GmbH & Co. KG ebro Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany Phone: +49.(0)841.954.78.0 Fax: +49.(0)841.954.78.80 Internet: www.ebro.com E-Mail: ebro@xyleminc.com 15. Manufacturer information Xylem Analytics Germany GmbH Dr.-Karl-Slevogt-Str.
