FingerTec AdapTec-X Installer's Manual page 12

undersTAnding AdApTec-X insTALLATion For
•
Wooden Door or Glass Door
The diagrams below only highlights the use of an EM lock during installation.
You may opt to use a dropbolt/deadbolt/door strike instead. Please consult a
qualified technician/installer before proceeding with the installation.
1

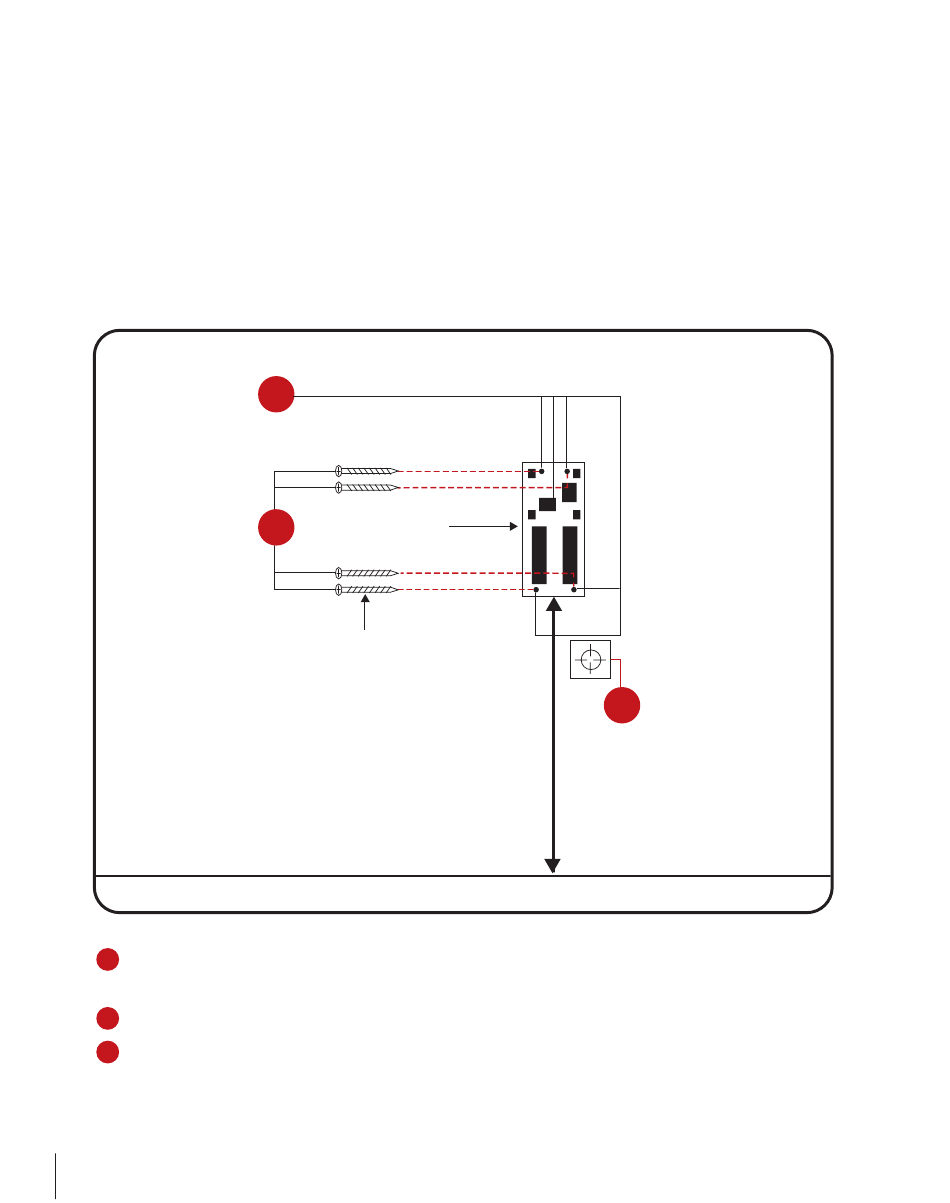

To install FingerTec AC900/R on a wall, drill 5 holes as shown.  small holes
are for the screws and the bigger hole is for the network cable.
2
Tighten the  screws to fix the
3
Install the keyswitch as per instructions given in the box. The keyswitch is an
override key in case of a system failure or breakdown.
1
1
2
Back Steel
Plate
Screws
4 feet / 1.2 meter
(recommended)
Back Steel Plate
WALL
3
on the wall.
