FingerTec AdapTec-X Installer's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Installer Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the AdapTec-X and is the answer not in the manual?

Questions and answers

Summary of Contents for FingerTec AdapTec-X

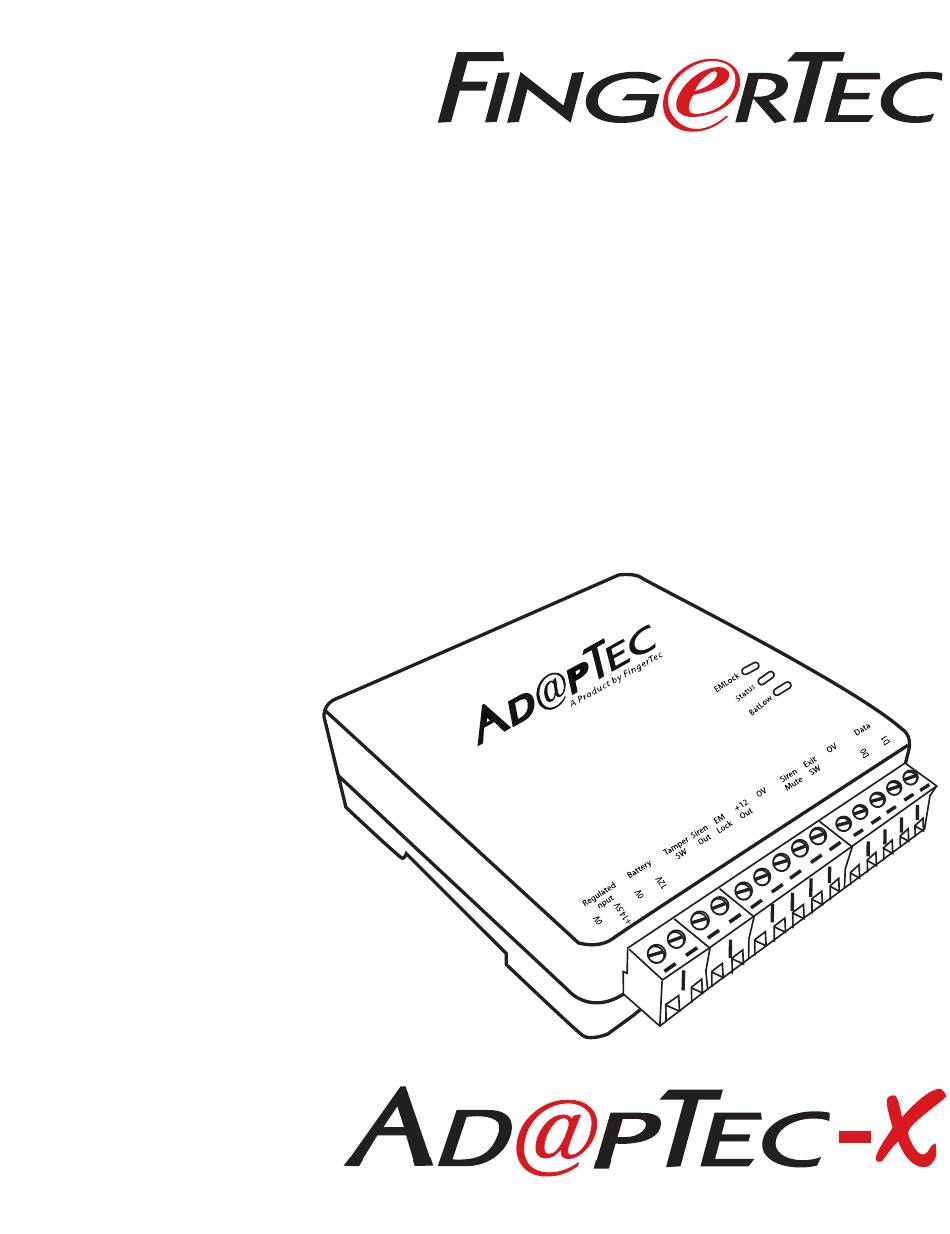

  • Page 1 Installer Guide...
  • Page 2 This prevents hackers from bypassing this by simply providing the relay signal to AdapTec-X. Furthermore, separate pow- er outputs for the door lock system and FingerTec terminals will keep the door locked even during any failures (i.e.: vandalism to terminals, etc.).
  • Page 3 Power Up Terminals & Door Lock Systems A single AdapTec-X can support a maximum of  units of FingerTec terminals and  sets of door lock accessories such as the EM lock and drop bolt in one single system installation.
  • Page 4 Battery low LED lit up – Battery is low and cut-off on BoArd proTecTion Over voltage alarm >15 VDC Fuses PTC type Battery cut-off 8.5 ~ 9.5 VDC NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information.
  • Page 5 These cables connect to a DC1V rechargeable backup battery. During a power failure, the backup battery will power up AdapTec-X. These are the power output ports for AdapTec-X. Refer to the wiring diagram for details. These are the Wiegand data input ports for the FingerTec terminals. Refer to the...

  • Page 6: Other Features

    (After startup) Over voltage of power input (Stop the power supply to the system immedi- ately and check the input voltage, consult support@fingertec.com) Adjust the door lock timer for a longer or shorter unlocking time period by turn- ing the screw clockwise. Count the LED blinks after turning it. Each blink repre- sents 1 second and the recommended time period is 5 seconds (5 blinks).
  • Page 7 01-01 09:00 door open-close mechanism. Please make sure you are using the following FingerTec models MENU that support the encrypted 6-bit Wiegand signal to work with the AdapTec-X to setup a door lock system: suppor t@finger tec.com suppor t@finger tec.com...
  • Page 8 AdapTec-X R egulated Battery Tamper Siren +12 OV Siren Exit Data Input Out Lock Out Mute 0V +14.5V 0V 12V D1 D0 Lock Exit Emergency  Button Break Glass  ON-OFF Key Switch D Connection Points...
  • Page 9 For ContaCtless exit Button AdapTec-X R egulated Battery Tamper Siren +12 OV Siren Exit Data Input Out Lock Out Mute 0V +14.5V 0V 12V D1 D0 Lock Contactless Exit Button Emergency  Break Glass  ON-OFF...

  • Page 10: Wiring Diagrams

    We recommend that you install a terminal along with AdapTec-X if you plan to use the alarm siren. In AdapTec-X, an additional port is readily built to re- ceive the alarm signal from the FingerTec terminals. AdapTec-X has an output of DC1V and it is suitable for use with an alarm siren that has the same power input.
  • Page 11 Deactivating the Alarm Siren: 1. At the terminal, press Menu and select Turn Off Alarm to turn off the alarm siren. 2. To deactivate the alarm siren of AdapTec-X, press the Siren Mute Button that is connected to AdapTec-X. This will turn off the alarm siren function in AdapTec-X.
  • Page 12 4 feet / 1.2 meter (recommended) To install FingerTec AC900/R on a wall, drill 5 holes as shown.  small holes are for the screws and the bigger hole is for the network cable. Tighten the  screws to fix the Back Steel Plate on the wall.
  • Page 13 Wooden Doorframe Glass Doorframe U-Bracket Allen Key Silver Screws Steel Steel Allen Key Philip Screw Allen Key Screws Screw Wooden Door Drill  holes on the wooden door. Place the Steel Bar on the door. Insert the Silver Nut on one side and the Allen Key Screw on the other side.
  • Page 14  screws on the sides of Magnet. oVerView oF THe wHoLe sysTeM insTALLATion Switching power supply AC110/240V 12VDC Power Input DC12V Rechargeable battery ABOVE CEILING CEILING ON-OFF Keyswitch EM Lock Emergency Break Glass Hub/Switch MENU FingerTec Push Button Terminal OUTDOOR INDOOR NETWORKING...
  • Page 15 For more accessories, go to accessory.fingertec.com. HID Card / MiFare RFID Key Card / RFID Card Chain ON-OFF Keyswitch AdapTec-X EM 600 / EM 100 Contactless Release Button Emergency Break Glass Release Button Alarm Siren with Strobe Light MounTing An AdApTec-X onTo A wALL...
  • Page 16 NOTE: Details in this manual are subject to change. Check http://product.fingertec.com for latest product information. ©018 Timetec Computing Sdn Bhd. All rights reserved • Printed in Malaysia. 0018...
