Display Accuracy
Digital Display:
Resume Time:
Mechanical Specification
Weight(kg):
Dimension(mm):
4.1 INSTRUMENT DESCRIPTION

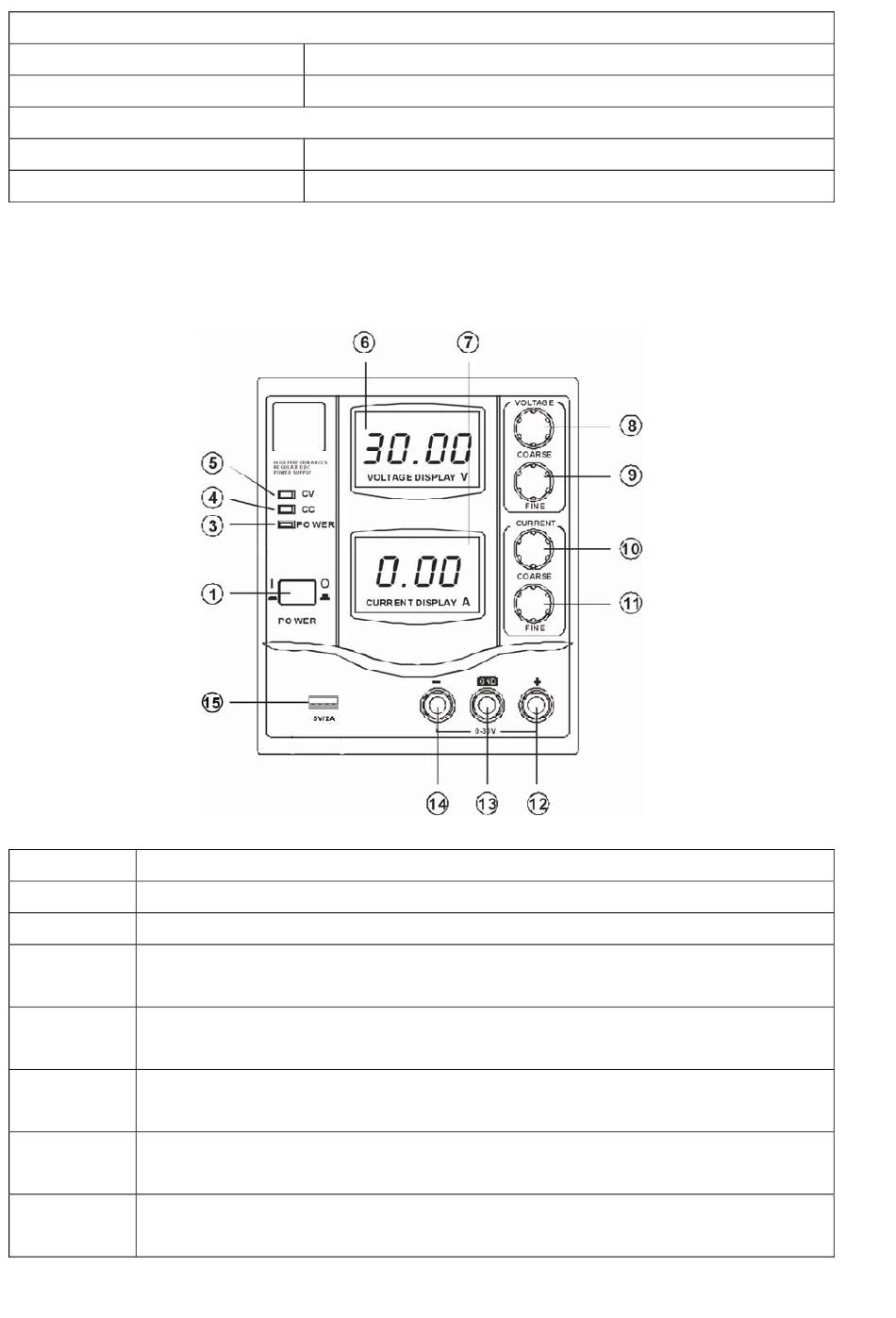

4.1.1 FRONT PANEL DESCRIPTION
Item
1
POWER SWITCH: Press it to power on the supply
3
POWER INDICATOR
4
CC (constant current mode) INDICATOR: When the power supply is at the constant
current mode, this LED light will be on.
5
CV (constant voltage mode) INDICATOR: When the power supply is at the constant
voltage mode, this LED light will be on.
6
Voltage Display Panel: This display will indicate the voltage value that will be applied
to the circuit.
7
Current Display Panel: This display will indicate the current value that will be applied to
the circuit
8
VOLTAGE COARSE (roughly adjustment) tune knob: Turn clockwise for increasing the
voltage value; turn anti-clockwise for decreasing the voltage value.
3 Digits Display: ±0.5%+2d
Less than 100μs
5.6
130 (W) × 165 (H) × 320 (D)
4. OPERATING INSTRUCTIONS
Description
5
