5.2 SETTING THE OUTPUT CURRENT

1. Turn on the supply
2. Refer to Section 5.1 step 1 – 4 to give the voltage around 2-5V.
3. Turn the CURRENT COARSE TUNE KNOB [10] and CURRENT FINE TUNE KNOB [11]
anticlockwise reach the minimum current value.

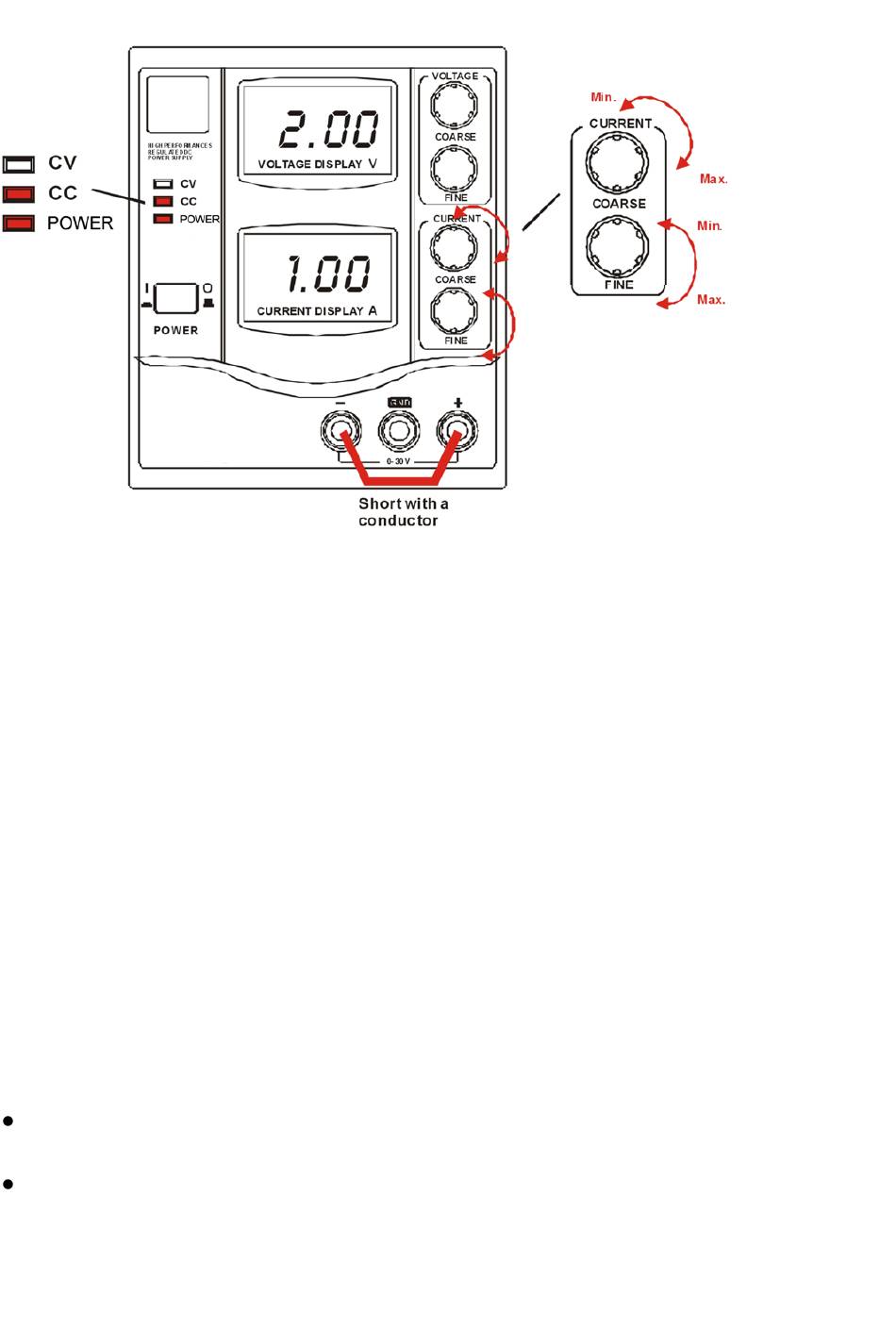

4. Short the + and the – MAIN TERMINAL [12, 14] with a conductor.
5. Ensure the out indicator is on. Otherwise, press the ACCIDENTAL PROTECTION KEY [2]. Then
the CV INDICATOR [5] will off and the CC INDICATOR [4] will on.
6. Adjust the CURRENT KNOB [10, 11] to give a desired output current.
7. Repress the ACCIDENTAL PROTECTION KEY [2] to cut off the output.
8. Then the CC INDICATOR [4] will off and the CV INDICATOR [5] will on.
9. Remove the conductor from the MAIN TERMINAL [12, 14].
10. Set to diesried voltage.
11. Connect the circuit to the MAIN TERMINAL [12, 14].
Caution:
Ensure the current is set to zero before short the MAIN TERMINAL [12, 14]. Otherwise it will
damage the power supply.
Do not short the MAIN TERMINAL [12, 14] over 1 minute; it will damage the power supply.
