TekPower tp3005t User Manual

Models TP3003T
Voltage 0-30V
Current 0-3A
Load Regulation
Voltage ≤0.01%± two words
Current ≤0.1%± two words
Line Regulation
Voltage
≤0.01%± two words
Current ≤0.1%± two words
Setup Regulation
Voltage 10mV
Current 1mA
Setup Accuracy(25 C+-5 C)
Voltage ≤0.5%± two words
Current ≤0.5%± two words
Ripple(20-20M)
Voltage
≤1mVrms
Current
≤3mArms
Temp.Coefficient
Voltage
≤150ppm
Current ≤150ppm
Read Back Resolution
Voltage 10mV
Current 1mA
Read Back Temp.Coefficient
Voltage ≤150ppm
Current ≤150ppm
Accessories
User manual*1,;Power cord*1
Weight and Dimension
TP3003T/TP3005T/TP5003T:116mm(W)*180mm(H)*265mm(D)
TP3003T:4.8Kg TP3005T/TP5003T:5.3Kg
TP3005T TP5003T
0-30V 0-50V
0-5A 0-3A
≤0.01%± two words ≤0.01%± two words
≤0.1%± two words ≤0.1%± two words
≤0.01%± two words ≤0.01%± two words
≤0.1%± two words ≤0.1%± two words
10mV 10mV
1mA 1mA
≤0.5%± two words ≤0.5%± two words
≤0.5%± two words ≤0.5%± two words
≤2mVrms ≤1mVrms
≤3mArms ≤3mArms
≤150ppm ≤150ppm
≤150ppm ≤150ppm
10mV 10mV
1mA 1mA
≤150ppm ≤150ppm
≤150ppm ≤150ppm
8

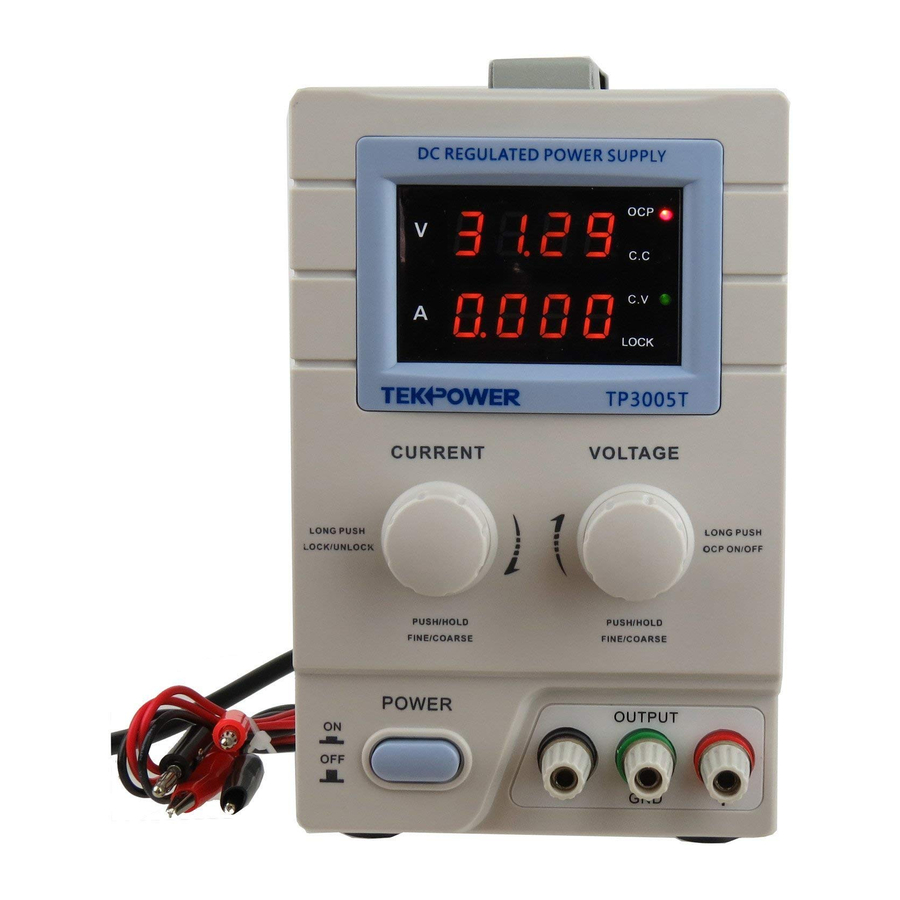

TP3005T
User's Manual
Tekpower Variable DC Power Supply, Linear Type
Please read the detail instruction to use this power supply.
Please contact us if you have any questions or visit our website:
5185 Cliffwood Dr. Montclair, CA 91763
www.kaitosua.com
Tel: 909 628 6088, Fax: 909 628 7999
Email: info@kaitousa.com
www.tekpower.us
