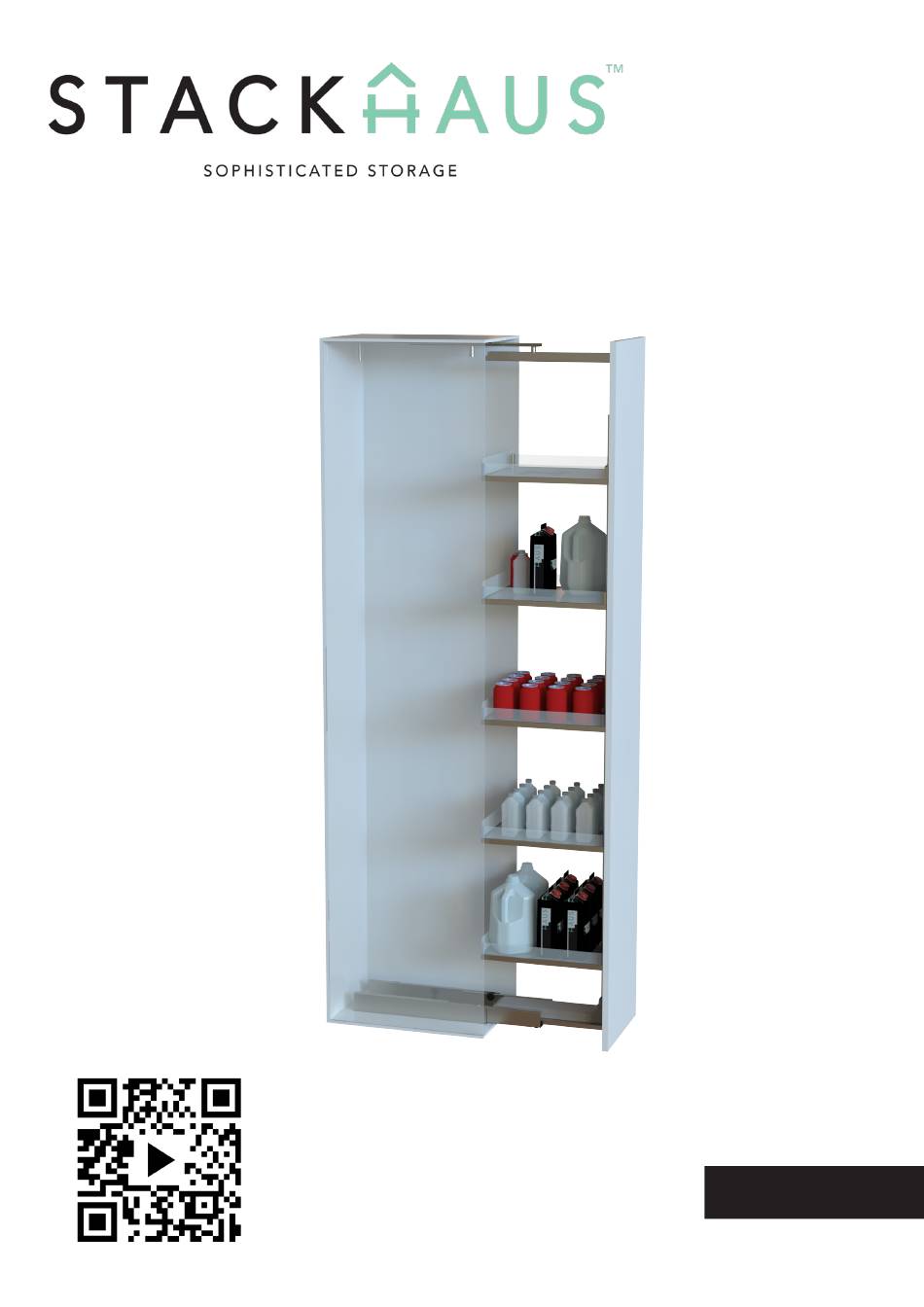

- Page 1 SPACE SERIES TALL PANTRY User Manual Scan for Setup Video English...
- Page 2 INTRODUCTION Introducing the Space Series Tall Pantry assembly manual. In this manual, we will show you how to assemble your own Space Series Tall Pantry. Before beginning the assembly, make sure that there is ample room for installing and assembling your product. The amount of Base Shelf Trays with your assembly may also vary.
- Page 3 PARTS & TOOLS CHECK LIST Ensure that the following parts are included with your sample bike. These are crucial components that will be the mainframe of your entire assembly. Cabinet x1 Door Panel x1 Part A - Upper Rail Track Part B - Bottom Cover Part C - Large Guide Part D - T Shaped...
- Page 4 PARTS & TOOLS CHECK LIST Ensure that the following parts are included with your sample bike. These are crucial components that will be the mainframe of your entire assembly. Contact Customer Service should there be inadequate quantities and if parts come damaged. Part R - M6x12 Part S - Allen Key K4 Part T - Allen Key K5...
- Page 5 PARTS Below is a breakdown of how the parts will come together for your final product, as detailed in the following steps. T-Shaped Brackets Cabinet Upper Rail Track There will be two Dimensions of your brackets that will be cabinet may vary, but This rail track will be placed on the spine of should be within a set...
-
Page 6: Step 1 - Main Frame Assembly
INSTRUCTIONS Step 1 - Main Frame Assembly Place Part G Frame Stand flat on the ground With Part G flat on the ground, locate the end holes wher Parts E and F will be inserted. The end where Part E will go will only have two holes on the spine while the end where Part F goes will have six holes, two on the spine and two on each side. - Page 7 INSTRUCTIONS Step 2 - Installing the Rail Tracks Installing Part A Upper Rail Track Begin by placing the Part A Upper Rail Track on to the inner cabinet roof top. Part A will be placed in the center of the inner cabinet roof top with a spacing of approximately 74 millimeters from the open cabinet end.
- Page 8 ● The Space Series Tall Pantry comes in a variable range of height based on the dimensions shown in the right hand table above in millimeters. Ensure that the rail, rail tracks, and main frame are of adequate height to ensure proper installation.
- Page 9 INSTRUCTIONS Step 3 - Attaching the Main Frame Assembly Attach Main Frame Assembly to Part C With the assistance of another person holding the main frame assembly straight up, align the Main Frame Assembly with Part C so that the bottom section of the assembly fits in with the middle section of Part C, as shown.
-
Page 10: Tightening The Screws
INSTRUCTIONS Step 4 - Assembling the Door Panel Place the door panel on a flat surface Begin Step Four by locating the door panel of the assembly and laying it flat on a leveled surface with the back side facing up. There are pre- drilled holes on the cabinet door. - Page 11 DIMENSIONS The back side of the door panel will have pre-drilled holes. Please refer to the image below for specific dimensions and proper spacing so that installation of the door panel plastic brackets is possible. Door Panel Measurements The following image is a reference for the measurements of the door panel. ●...
- Page 12 INSTRUCTIONS Step 5 - Attaching the T-Shaped Brackets Line up the two Part D T-shaped brackets Locate the two Part D T-shaped brackets, and line them up to the top and bottom sections of the main frame assembly. The frames will be inserted through the holes.
- Page 13 INSTRUCTIONS Step 6 - Attaching the Door to the Main Frame Assembly Line up the two Part D T-shaped brackets Two people will be required for this step. Begin by placing the previously assembled cabinet door assembly onto the main frame assembly. Adjust the door panel plastic wrenches Before attaching the cabinet door to the main frame, adjust the door panel plastic wrenches by turning the handles...
- Page 14 INSTRUCTIONS Step 7 - Attaching the Bottom Frame Cover Line up the Part B Low Frame Cover Locate the Part B Low Frame Cover. Place Part B over the lower rail, slide it, and lock it into place. Securing the Part B Low Frame Cover Once the Part B Low Frame Cover is locked into place, secure it to the lower rail using one Part M Screw.
- Page 15 INSTRUCTIONS Step 8 - Attaching the Shelf Trays Line up the Part H Base Shelf Tray Locate one Part H Base Shelf Tray. The Part H tray is to be attached to the corresponding bottom section of the rail. Before attaching the tray to the rail, make sure the clip is pushed downward towards you.
- Page 16 Slide the door back and forth to ensure usage Once verification of all parts and hardware are secure, slide the door back and forth to ensure that the rails are working properly. Congratulations, you have completed the assembly of the Space Series Tall Pantry!
-
Page 17: Technical Support
Technical support www.stackhaus.com.au info@stackhaus.com.au © StackHaus 2019, All Rights Reserved...
