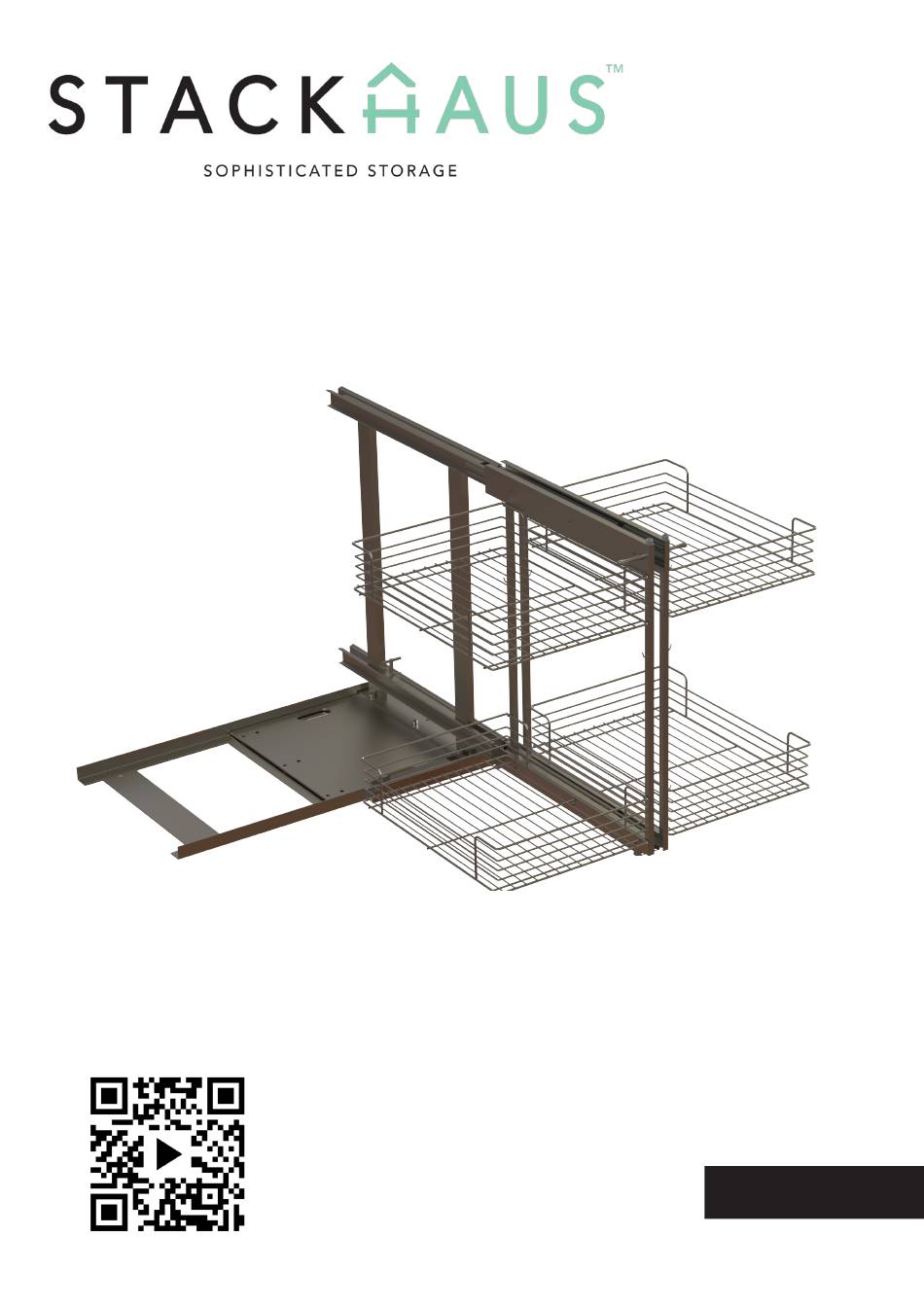

Page 1: User Manual
SHOW HAND CORNER DELUXE User Manual Play Setup Video English... - Page 2 INTRODUCTION Introducing the Show Hand Corner Deluxe assembly manual. In this manual, we will show you how to assemble your own Show Hand Corner Deluxe. Before beginning the assembly, make sure that there is ample room for installing and assembling your product. Please check the following chart to ensure the product size exactly suits your cabinet based on the following dimensions.
- Page 3 PARTS & TOOLS CHECK LIST Ensure that the following parts are included with your Show Hand Corner Deluxe. These are crucial components that will be the mainframe of your entire assembly. The following tools are recommended for this installation. Frame Base x1 Plastic Spacer x1 ST 3.5 x 16 Screws...
- Page 4 PARTS & TOOLS CHECK LIST Ensure that the following parts are included with your Show Hand Corner Deluxe. These are crucial components that will be the mainframe of your entire assembly. The following tools are recommended for this installation. Base Cover x1...
- Page 5 PARTS Below is a breakdown of how the parts will come together for your final product, as detailed in the following steps. You can install the Show Hand Deluxe Corner on the right side of the cabinet and on the left side of the cabinet. Frame Cabinet Assembly...
- Page 6 The layout of both left and right orientations are shown below. The measurements shown below are served as a reference to your preferred orientation Please ensure that proper measurements have been recorded so that you can determine the proper placement for parts and installation. Show Hand Corner Deluxe Orientation...
- Page 7 INSTRUCTIONS Step 2 - Installing the Frame Base Locate the frame base and align to holes Begin Step Two by locating the frame base and align it to the previously drilled holes from Step 1. Secure the frame base Secure the frame base to the bottom of the cabinet using six ST 3.5screws.
- Page 8 INSTRUCTIONS Step 3 - Installing the Frame Assembly Locate the Frame Assembly Begin Step Three by locating the Frame Assembly and aligning it to the section of the upper six holes are located, as shown. Secure the Frame Assembly Next, secure the bottom section of the sides using six M6*16 Hexagon Screws , three on each side.
-
Page 9: Step 4 - Installing The Front Wheels
INSTRUCTIONS Step 4 - Installing the Front Wheels Locate the two Wheels and two M6 Hexagon Nuts Begin Step Four by locating the two wheels and two m6 hexagon nuts and align them to the following locations, as shown. The placement of the whells and nuts are dependent on the layout of your desired orientation. - Page 10 INSTRUCTIONS Step 5 - Attaching the Baskets Locate the baskets Locate four baskets and align each basket into each allocated section of the frame assembly. The frame assembly will have specific hooks portruding from the frame that will serve as a way to hold the baskets and secure them into place.
-
Page 11: Technical Support
Technical support www.stackhaus.com.au info@stackhaus.com.au © StackHaus 2019, All Rights Reserved...
