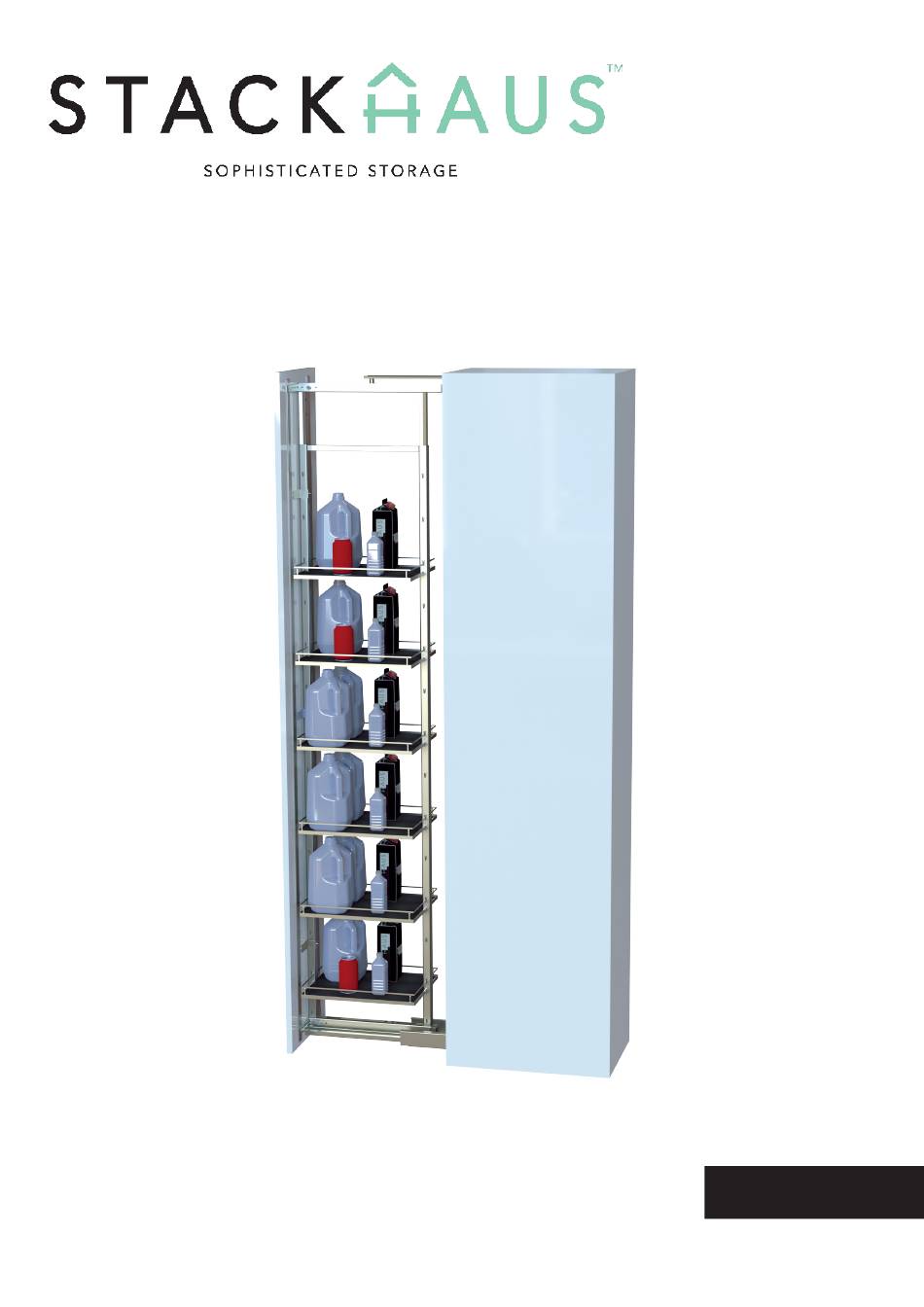

- Page 1 BUTLER SERIES TALL PANTRY User Manual English This is an example manual with mock assembly procedures in three different languages.
- Page 2 INTRODUCTION Introducing the Butler Series Tall Pantry assembly manual. In this manual, we will show you how to assemble your own Butler Series Tall Pantry. Before beginning the assembly, make sure that there is ample room for installing and assembling your product. The amount of Base Shelf Trays with your assembly may also vary.
- Page 3 PARTS & TOOLS CHECK LIST Ensure that the following parts are included with your sample bike. These are crucial components that will be the mainframe of your entire assembly. Cabinet x1 Cabinet Door x1 Part 1 -Main Frame Part 2 - Bridge Shaped Bracket Part 3 - T-Shaped Bracket Part 4 - Upper Slider Part 5 - Lower Slider...
- Page 4 PARTS & TOOLS CHECK LIST Ensure that the following parts are included with your sample bike. These are crucial components that will be the mainframe of your entire assembly. Contact Customer Service should there be inadequate quantities and if parts come damaged. Pencil Tape Measure Allen Key...
- Page 5 PARTS Below is a breakdown of how the parts will come together for your final product, as detailed in the following steps. Door Panel Upper Slider Dimensions of your door This rail track will be panel may vary, but T-Shaped Brackets placed at the cen- should match with the ter top of the inner...
- Page 6 INSTRUCTIONS Step 1 - Installing the Upper Slider Draw the line on the cabinet top Begin Step One by using a pencil and drawing a central line on the upper section of the cabinet. This will indicate the starting point of applying the Part 13 Installation Template. Place the installation template and pre- drill holes After splitting the installation in half, use the slider...
- Page 7 INSTRUCTIONS Step 2 - Installing the Lower Slider Draw the line on the cabinet bottom Begin Step Two by using a pencil and drawing a central line on the lower section of the cabinet. This will indicate the starting point of applying the Part 13 Installation Template. Place the installation template and pre- drill holes With the lower slider installation template placed directly...
- Page 8 DIMENSIONS There are different sizes of your cabinet available. Depending on the height of your cabinet, please refer to the dimensions down below to verify the adequate space needed to work with installation Rail Height and Main Frame Height The following image is a reference for the height of the rail and main frame. ●...
- Page 9 INSTRUCTIONS Step 3 - Installing and adjusting the frame Place the frame on the lower slider component With the assistance of another person holding the main frame assembly straight up, align the frame with the lower slider component so that the bottom section of the assembly fits in with the middle section of the component, as shown.
-
Page 10: Step 4 - Installing The Door
INSTRUCTIONS Step 4 - Installing the Door Mark and pre-drill holes according to template Begin Step Four by locating the installation template for the T-shaped bracket. As shown, mark the locations for the holes on the door, and draw a line across accordingly. Two 2.5mm holes will drilled on the top and bottom sections. - Page 11 DIMENSIONS The back side of the door panel will have pre-drilled holes. Please refer to the image below for specific dimensions and proper spacing so that installation of the door panel plastic brackets is possible. Door Panel Measurements ● The following image is a reference for the measurements of the door panel. Using a tape measure, ensure that the spacing between each section of the holes of the door panel are of equal distance, and that there are pre-drilled holes for installing your door panel plastic brackets.
-
Page 12: Step 5 - Adjusting The Door
INSTRUCTIONS Step 5 - Adjusting the Door Adjusting the left & right incline Depending on the door, the door may have a left incline installation procedure, a right incline installation procedure, or a procedure of both. To ensure maximum stability of the door, it is crucial to adjust the door accordingly by lossening, tightening, and adjusting the components of the rail on the T-shaped brackets, as shown. - Page 13 Slide the assembly back and forth to ensure baskets are secured Slide the door back and forth to ensure no misalignment or unwanted movement occurs. Once you have verified the door seamlessly motions back and forth, you have completed the assembly of the Butler Series Tall Pantry.
-
Page 14: Technical Support
Technical support www.stackhaus.com.au info@stackhaus.com.au © StackHaus 2019, All Rights Reserved...
