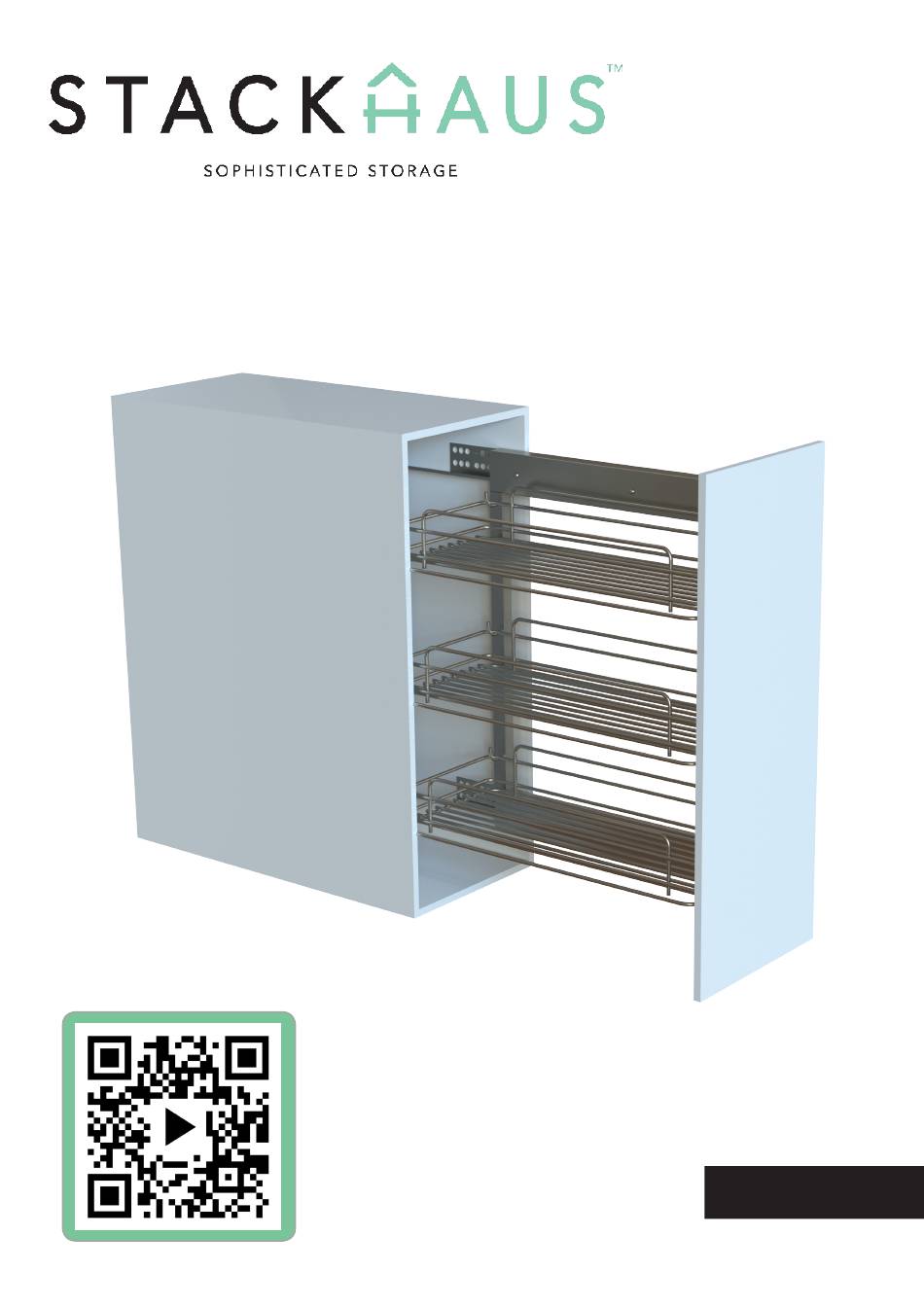

Page 1: User Manual
BUTLER SERIES TRAY BASKET User Manual Play Setup Video English Placeholder... - Page 2 INTRODUCTION Introducing the Butler Series Tray Basket assembly manual. In this manual, we will show you how to assemble your own Space Series Tall Pantry. Before beginning the assembly, make sure that there is ample room for installing and assembling your product. The amount of Base Shelf Trays with your assembly may also vary.
- Page 3 PARTS & TOOLS CHECK LIST Ensure that the following parts are included with your assembly. These are crucial components that will be the mainframe of your entire assembly. Cabinet x1 Cabinet Door x 1 Basket Tray x3 Main Frame x1 Phillips Screwdriver ST 3.5 x 16 ST 3.5 x 20...
- Page 4 PARTS Below is a breakdown of how the parts will come together for your final product, as detailed in the following steps. Cabinet Upper Rail Track Dimensions of your cabinet may vary, but This rail track will be should be within a set placed at the cen- average height.
-
Page 5: Step 1 - Installing The Frame
INSTRUCTIONS Step 1 - Installing the Frame Locate the Main Frame Begin Step One by locating the Main Frame. The frame will be installed on the right hand side of the basket tray compartment. The dimensions are a Secure the main frame Secure the main frame to the compartment using a total of twelve ST3.5 x 16 screws. - Page 6 INSTRUCTIONS Step 2 - Installing the Door Fixing Locate the Cabinet Door Begin Step Two by locating the cabinet door. Measure accordingly Using the next page as a reference for measurement requirements, measure the spacing accordingly for the installation of the door fixing on the back side of the tray door.
- Page 7 ● The Butler Series Tray Basket comes in a variable range of height based on the dimensions shown in the right hand table above in millimeters. Ensure that the rail, rail tracks, and main frame are of adequate height to ensure proper installation.
- Page 8 INSTRUCTIONS Step 3 - Connecting the Door and Frame Line up the door fixings to the rails Begin Step Three by locating the tray door assembly and the tray compartment assembly, and slide the rail out of the compartment assembly. Line up the door fixing to the rail, as shown. Insert the door fixings Next, push the tray door assembly inwards so that the fixings are inserted into the rails, as shown.
-
Page 9: Step 4 - Adjusting The Door
INSTRUCTIONS Step 4 - Adjusting the Door Adjust the tightness of the door Begin Step Four by checking the door and verifying if the door needs alignment. If needed, first wiggle the door left and right, loosening it horizontally. Then, wiggle it front and back to loosen it vertically. Adjust accordingly until the sufficient tightness of the door has been achieved. - Page 10 DIMENSIONS The back side of the door panel will have pre-drilled holes. Please refer to the image below for specific dimensions and proper spacing so that installation of the door panel plastic brackets is possible. Door Panel Adjustment The following image is a reference for the adjustmentss of the door panel. ●...
- Page 11 INSTRUCTIONS Step 5 - Installing the baskets Insert the baskets into the locations shown Begin Step Five by locating the three baskets and simply inserting them into the proper locations shown. Repeat the process for the remaining baskets Simply install the remaining baskets in a similar process of the first one, until all three are fully secured and installed.
-
Page 12: Technical Support
Technical support www.stackhaus.com.au info@stackhaus.com.au © StackHaus 2019, All Rights Reserved...
