Hercules DJ Console 4-Mx Quick Start Manual

Configuring external audio source

Hide thumbs Also See for DJ Console 4-Mx:

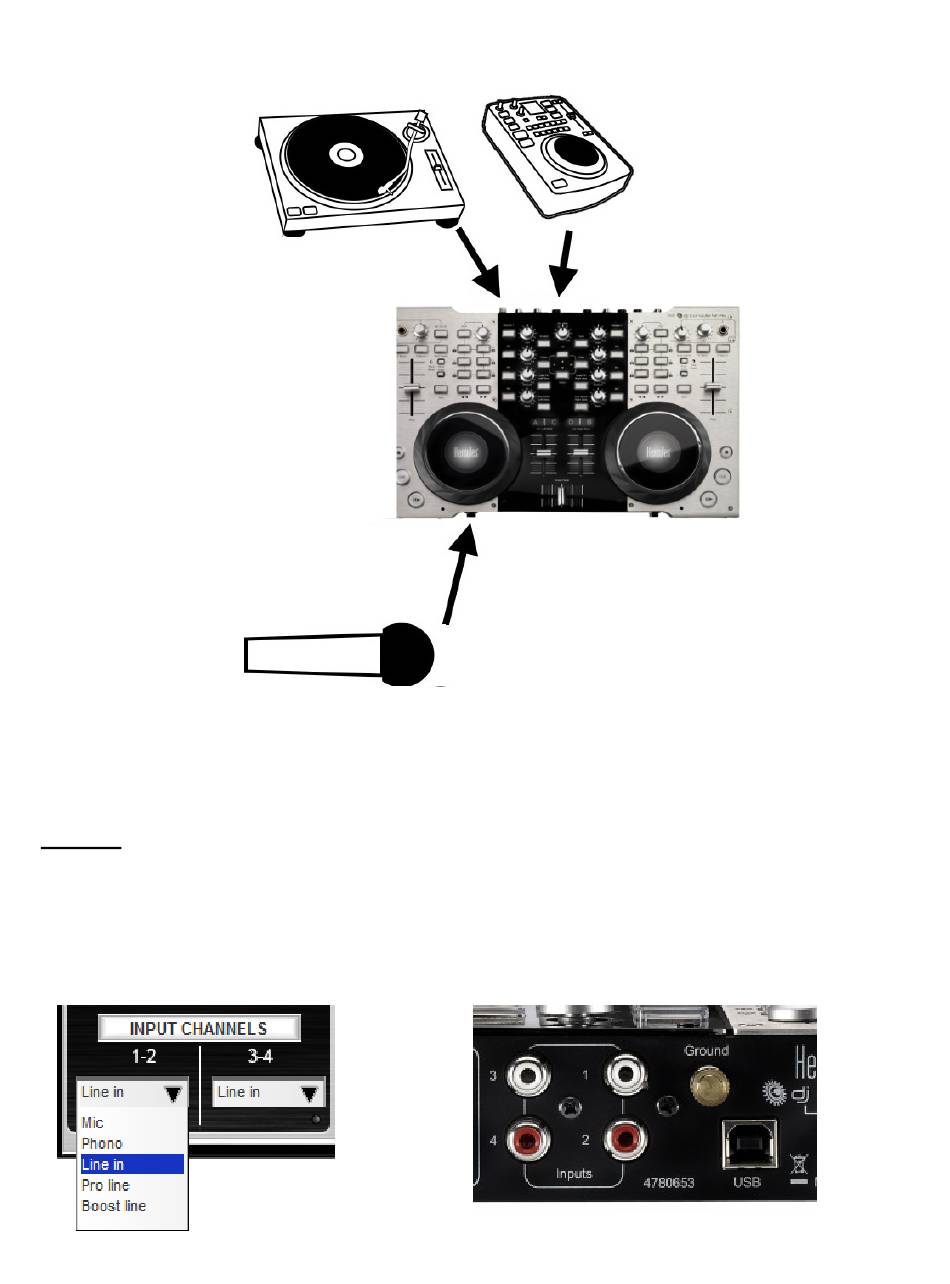

Configuring external audio source with the DJ Console 4-Mx.

Many types of audio sources devices can be connected to your DJ Console 4-

MX. Whether you want to use the songs from your MP3 player or a

Timecoded CD, it is important to define your audio source type (i.e. the

correct output level for the device you are connecting) in the control panel

before connecting your audio source. Doing so will avoid possible audio

issues such as distorted sound and preserve your ears.

From the DJ Control Panel, under INPUTS Channels, 2 menus allow you to

independently select the input type for Deck A (Input 1-2) or Deck B

(Input 3-4).

Table of Contents

Do you have a question about the DJ Console 4-Mx and is the answer not in the manual?

Page 1 Configuring external audio source with the DJ Console 4-Mx. Many types of audio sources devices can be connected to your DJ Console 4- MX. Whether you want to use the songs from your MP3 player or a Timecoded CD, it is important to define your audio source type (i.e. the correct output level for the device you are connecting) in the control panel before connecting your audio source.
Page 2 Microphone level (MIC) - When selecting the microphone as Input or recording source, keep in mind that it will not be possible to use Input 1-2 at the same time. - It is not necessary to select MIC if you simply whish to use the Talk Over mode (Mic On-Off) since this function acts directly on the hardware of 4-Mx by sending the signal of the microphone input to the main output.
Page 3 DJ Console’s inputs. Note regarding ASIO (PC only) When the DJ Console 4-Mx operates in ASIO 24Bit, Input 3-4 is automatically disabled, indicated as follow in the control panel: Consequently, Input 3-4 cannot be used with an external source.
