Configuring Traktor Pro/Duo for the DJ Console Mk2 (OS X version)

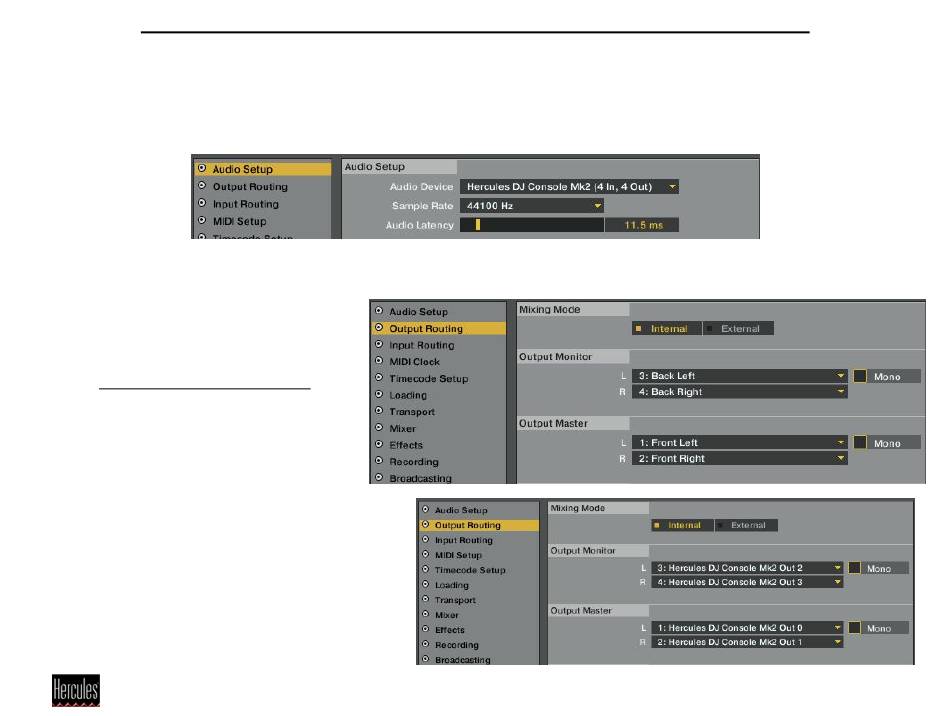

1- Audio configuration in Traktor

a) From the main menu, click on PREFERENCES, and select AUDIO SETUP. Choose Hercules

DJ Console Mk2 as Audio Device. You can also adjust the AUDIO LATENCY.

b) Under Output Routing, set Output 3 & 4 for Monitor and Output 1 & 2 for Master

OS X Snow Leopard (10.6)

OS X Tiger (10.4) / Leopard (10.5)

Hercules

Technical support

- 1 -

Table of Contents

Do you have a question about the DJ Console MK2 and is the answer not in the manual?

Page 1 Configuring Traktor Pro/Duo for the DJ Console Mk2 (OS X version) 1- Audio configuration in Traktor a) From the main menu, click on PREFERENCES, and select AUDIO SETUP. Choose Hercules DJ Console Mk2 as Audio Device. You can also adjust the AUDIO LATENCY.
Page 2 OK c. In Controller-Manager: -For Device, select Generic MIDI- DJ Console Mk2 - Do the same for both In-Port and Out-Port. This menu also give you access to the various MIDI settings, should you wish to modify them.
Page 3 MIDI Layout for the DJ Console Mk2 and Traktor Pro/Duo NOTE: The terms used are those employed in Traktor Main Configuration: A- FX/Cue/Loop buttons/ Secondary Function (See below) B- Deck Tempo C- EQ (Bass/ Mid/ Treble) D- Toggle FX/Cue/Loop mode...
Page 4 Press and hold the button 2 to control the deck’s gain using the Pitch Knobs (A & B) Press and hold the button 3 to enable the Scratch function on the jog wheel. ® Hercules Technical support - 4 -...
Page 5 3- Effect 3 On Cue mode: 1- Select/ Set+Store Hotcue 1 2- Select/ Set+Store Hotcue 2 3- Select/ Set+Store Hotcue 3 Loop mode: 1- Loop Size 1/2 2- Loop Size 2 3- Loop Size 4 ® Hercules Technical support - 5 -...
Page 6 Midi controllers map ® Hercules Technical support - 6 -...
