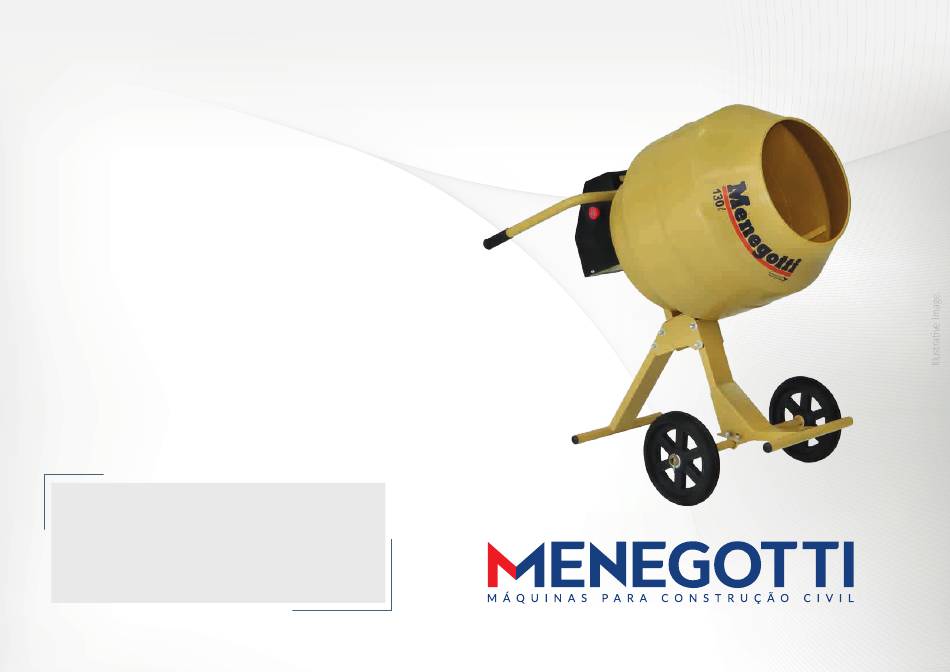

- Page 1 MENEGOTTI TECHNICAL MANUAL COMPACTA MIXER 130L Attention: Before operating the Menegotti equipment, read this technical manual, it will inform and instruct the operator about the operation of the product. This way, you avoid possible work accidents and premature equipment maintenance.
-
Page 2: Table Of Contents
Product Warranty Warranty Term Welcome, you are now a part of the great Menegotti "client family". MENEGOTTI After Sales and Technical Assistance departments. Caution: For best convenience, keep this manual in a appropriate place... -
Page 3: The Company
• Before using this equipment, carefully, read this manual and follow the Manufacturer's information, such as, how to reduce the risk of accidents in operation. • It is expressly prohibited to remove or alter any safety device or feature, if it occurs Menegotti will not be held responsible. • Use the equipment according to the instructions on this manual. -
Page 4: Main Components
• Do not use clothing that is too loose and which might get caught in the machine. • Always wear gloves, safety gloves and ear protection. • The motors must be installed by qualified professionals. • Perform the maintenance recommended on this manual with qualified people and within the correct periods. •... -
Page 5: Technical Specifications
Technical Specifications CONCRETE MIXER 130L Drum capacity 130 L (4,6 CuFt) Final mixture return 65L (2,3 CuFt) Cycles/hour quantity 15 Cycles Mix capacity 80 L (2,83CuFt) Hour production 1,2m³/h (42,4ft³/h) Drum rotation 30RPM (60HZ) / 28RPM (50HZ) Single-Phase 1/2CV 115/230V Eletrical motor UL Certification... -
Page 6: Working And Operating Conditions
Working and Operating Conditions • Attentively read this instruction manual; • The maximum length of electrical extensions should not be over 30m. • Can be used inside or outside; If a bigger extension is needed a technician should be questioned so that •... -
Page 7: Equipment Grounding
• The grounding must be done in accordance with the country standards and accompanied by a technically qualified person. In the absence of these standards, it must be carried out according to international standards. Doubts regarding installation contact Menegotti Authorized Service. - Page 8 Single Phase • On/Off Switch to 30Ampers; •Cable PP 3x2.5mm2; •Ground Wire 1mm2; •Terminal type Eyelet with a 6.5 diameter hole; •Terminal type Pitchfork to a 6mm diameter; CABLE PHASE NEUTRAL Connect to ground GROUND point of machine...
-
Page 9: Lubrification
Lubrication • Keep machine rotating parts lubricated, such as: pinion, gear ring, bushings, and bearings (with the help of the grease fittings installed in the machine). • Lubricate the equipment at the beginning of operation, applying grease to all lubrication points. •... -
Page 10: Working Operation
Working Operation • Place the concrete mixer on a plain and firm surface in a way to make easier the loading and unloading processes. • Connect the switch which is in the motor protection box remembering to follow recommendations for the extension. •... -
Page 11: Assembly Procedures
Assembly Procedures 2 - Assemble the rear chassis using washers, nuts and bolts 3/8" supplied with the equipment. Check List Name Qty. Central chassis assembly Front chassis assembly Rear chassis assembly Drum Handlebar Wheel axle Wheel Hexagon bolt 3/8” x 4.1/2” UNC Nut 3/8”... - Page 12 4 - Keep the drum down. Fit the engine housing into the chassis. Check 6 - Mount the axle in the chassis fixing with the nuts 3/8 ". Mount the gear rack and pinion coupling. If there is no coupling, rotate the the wheel on the end of the shaft.
-
Page 13: Exploded View / Spare Parts
Exploded View / Spare Parts 13 11... - Page 14 Name Qty. Code Drawing Name Qty. Code Drawing Central chassis assembly 32020017 3110163 21 Pinion assembly 3123009 Front chassis assembly 32020009 3112154 22 Elastic ring E15 21060113 Rear chassis assembly 32020003 3112160 23 Elastic ring E17 21060115 Bearing 30205 22020603 24 Key 21130120 Gear Rack Z128 / M2,5...
-
Page 15: Product Warranty
The product freight charges, including the technical assistant or factory, it was not designed, incorrect voltages of frequencies, incorrect lubrication, are borne by the consumer. Menegotti has a wide network of Technical damage caused by accidents of any kind, such as floods, strong winds, fires, Assistants throughout the country.
