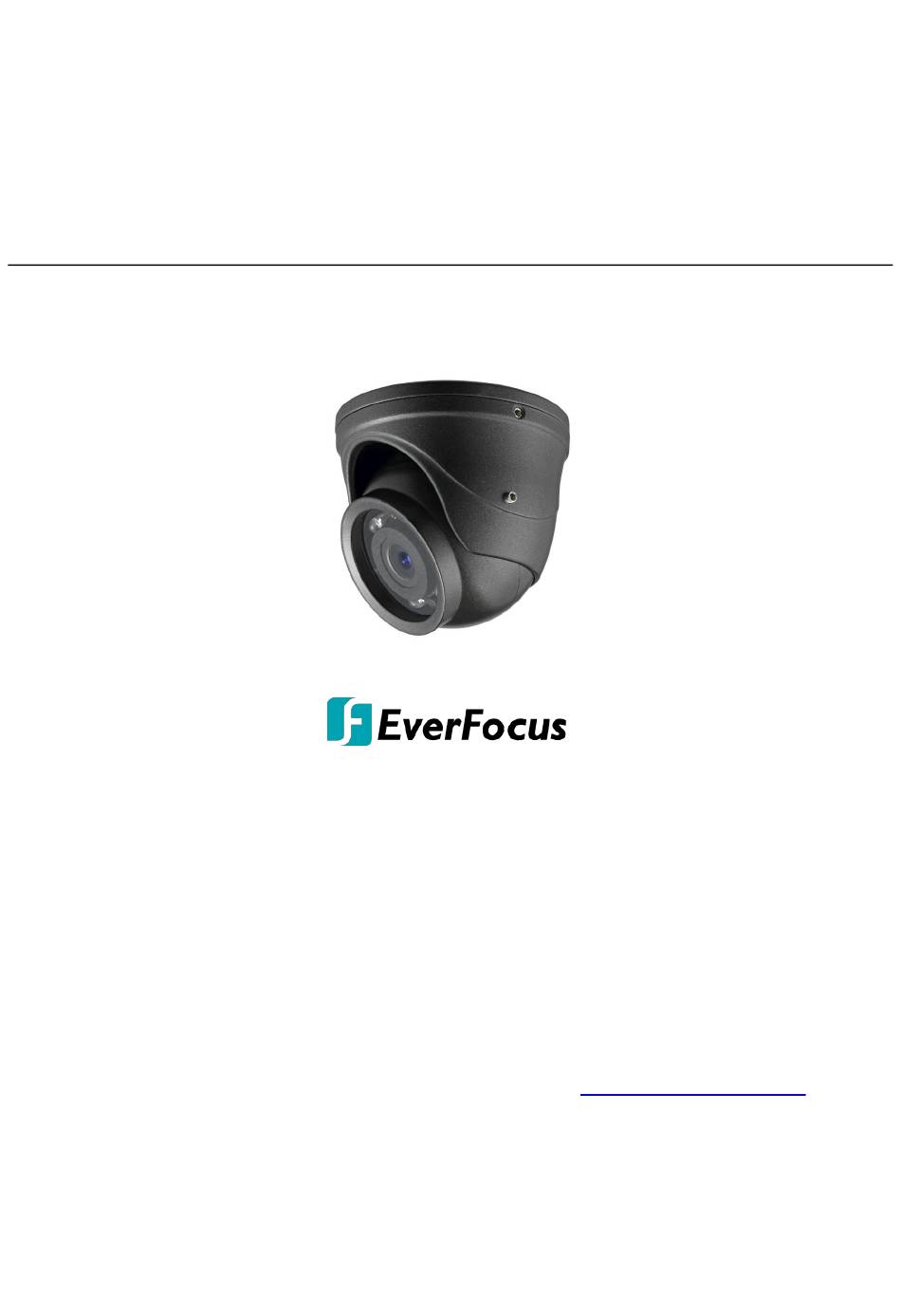

EMD935F
1080p Full High Definition
Outdoor IP68 Mobile IR Mini Ball Camera
User's Manual
Copyright © EverFocus Electronics Corp,
Release Date: September,
All the images including product pictures or screen shots in this document are for example
only. The images may vary depending on the product and software version. Information
contained in this document is subject to change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632
www.everfocus.com.tw
marketing@everfocus.com.tw

Advertisement

loading
Need help?

Need help?

Do you have a question about the EMD935F and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus EMD935F

Summary of Contents for EverFocus EMD935F

  • Page 1 1080p Full High Definition Outdoor IP68 Mobile IR Mini Ball Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: September, All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version. Information contained in this document is subject to change without notice.
  • Page 2 The EMD935F with its 3 Axis rotation design allows wall or ceiling mounting flexibility in an IP68 weather resistant. The EMD935F comes with 6 IR LEDs, supporting up to 10m (~33ft.) IR distance in night vision, also can work in both indoor and outdoor environments.

  • Page 3: Cable Description

    eZ.Controller function : Control camera OSD settings and PTZ operation  from DVR end 2. Cable Description Name Descriptions Mini DIN Cable 12V, 8 PIN male type cable. If you want to connect to BNC device, you can use the supplied Mini DIN to BNC Mini DIN to BNC Cable Cable.

  • Page 4: Installation And Adjustment

    3. Installation 3.1 Installation and Adjustment For Ceiling Mount / Wall Mount users: Stick the template plate on the position where you want to attach the camera, drill three holes on the template plate and insert the supplied three anchors. Drill another hole in the template plate only if you want to wire the cables through the wall / ceiling.
  • Page 5 3. Connect the camera to the DVR using the supplied Mini DIN to BNC Cable. Optionally using the DC Power Pigtail Cable to c. 4. Adjusting the camera angle by rotating the camera body. After adjusting the camera angle, tighten the two screws on both sides of the camera using the supplied Hexagon Wrench.

  • Page 6: Configuration In The Osd Menu

    4. Configuration in the OSD Menu You can configure camera settings in the OSD menu from DVR end. For details on the OSD menu structure as below: Note： - If the Color Temperature of your operation environment only stays around 6500K, you can select “Special 1”...

  • Page 7: Specifications

    5. Specifications EMD935F Pickup Device 1/2.9" Sony 2.24M pixels CMOS Video Format NTSC and PAL(can be switched via OSD) Effective Pixels 1920 (H)x1080(V) Scanning System Progressive Scan Sensitivity 0 lux with IR on Electronic Shutter AUTO/Manual (X30~1/50,000)/FLK Gamma Correction 0.45 Lens Type 2.8mm Fixed lens...
