Parts Required
•
Replacement Faceplate
•
Replacement Screws
Note
!
If lock is installed into a hung door panel, the installation screws should never be removed without a handleset or
construction handle installed, otherwise the lock may fall out of the panel.
Remove Old Faceplate
A.
Open door to expose faceplate.
B.
Using the T-15 Torx screwdriver remove the Torx drive faceplate screws.
C.
Using the #2 Phillips screwdriver remove the installation screws securing the lock to the panel.
D.
Remove old faceplate.
A
Torx
Head
Screws
INTERIOR
Torx
Head
Screws
* 6/8 Lock shown- longer
locks will have more screws.

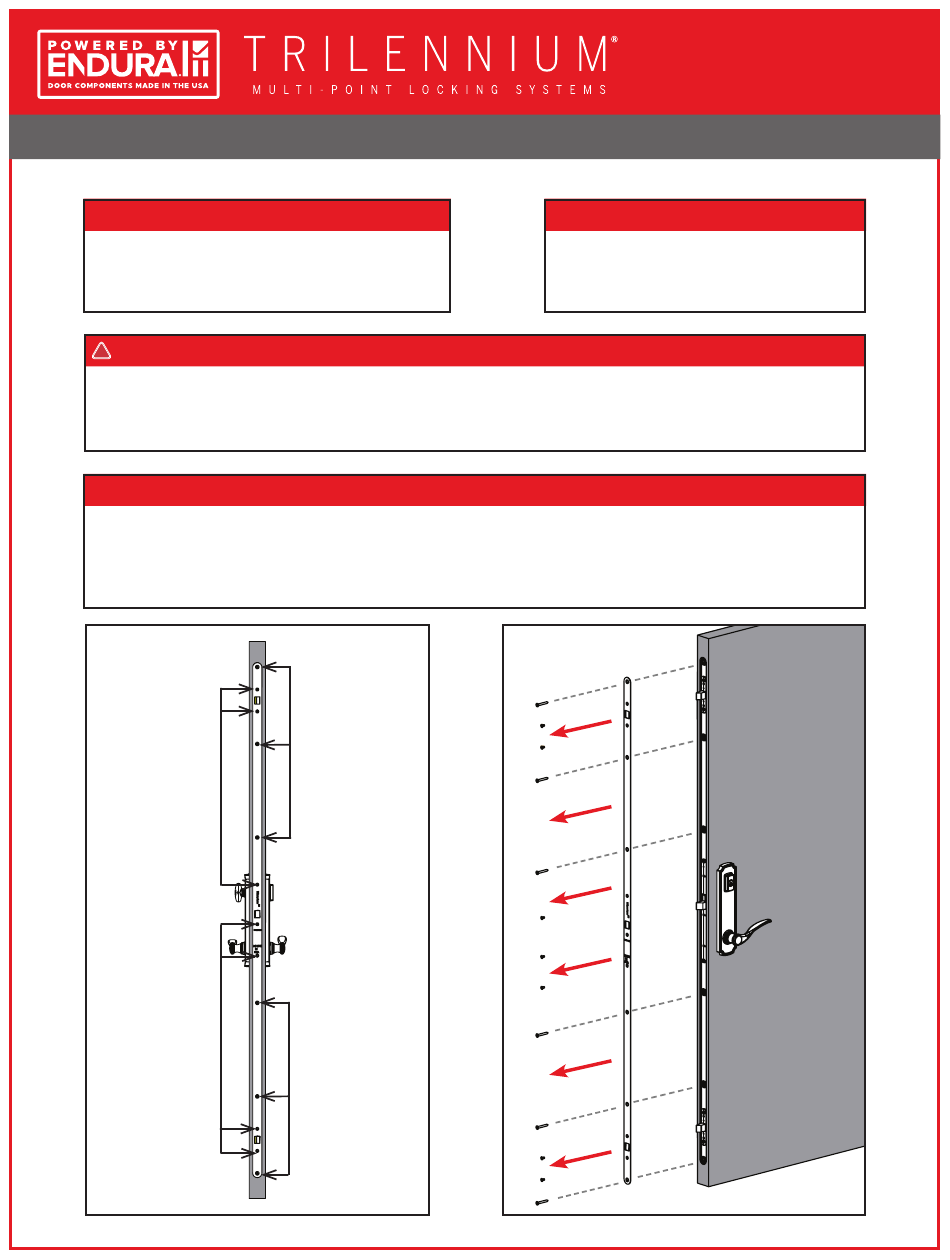

FACEPLATE REPLACEMENT INSTRUCTIONS
Phillips
Head
Screws
EXTERIOR
Phillips
Head
Screws
Tools Required
•
T-15 Torx Screwdriver
•
#2 Phillips Screwdriver
B, C, D
