Trilennium
Locking System
Replacement Instructions
TOOLS REQUIRED:
• Screwdriver or Drill

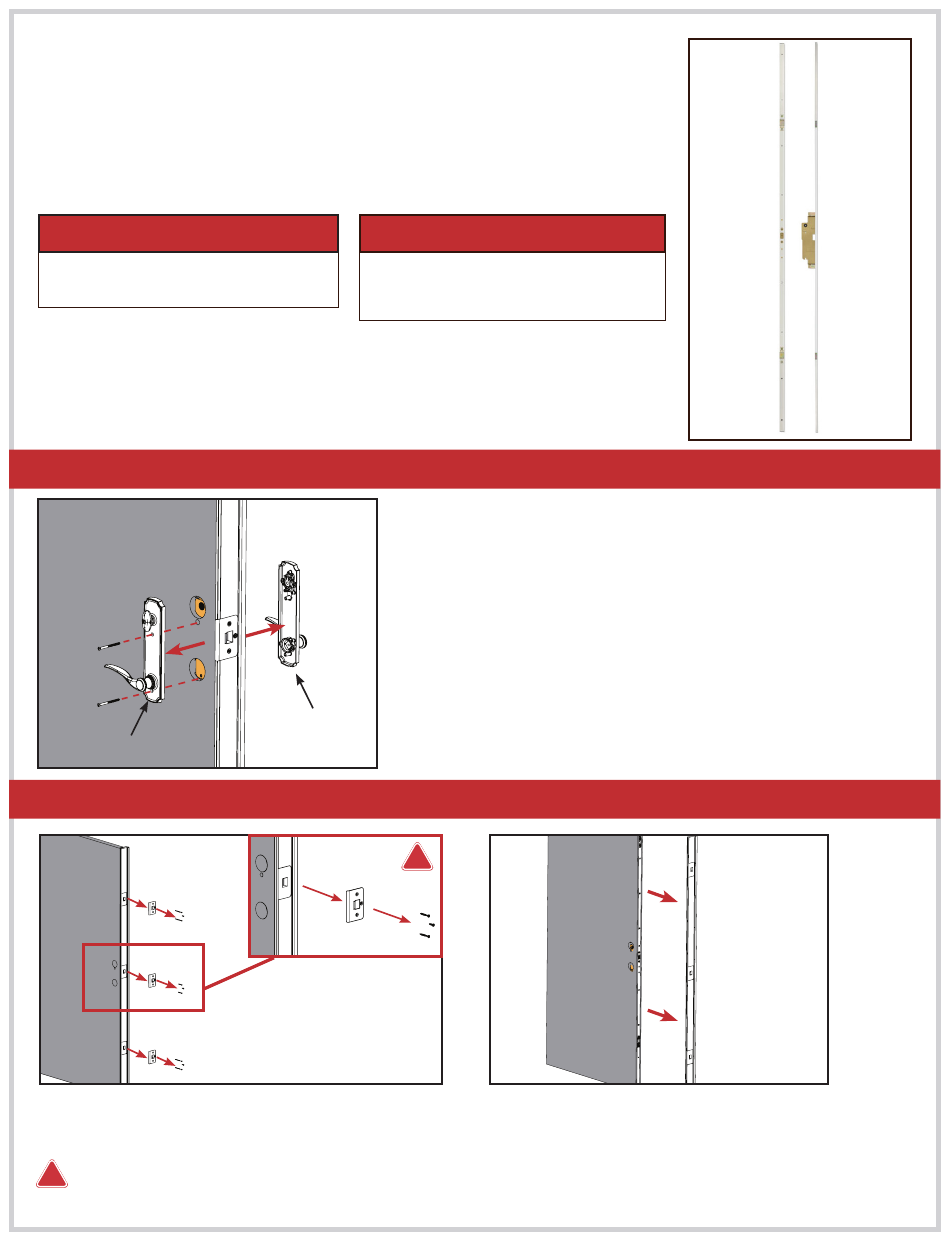

STEP 1: REMOVE THE HANDSET FROM THE INACTIVE DOOR PANEL
Interior
Escutcheon
STEP 2: REMOVE THE DUMMY ASTRAGAL FROM THE INACTIVE DOOR PANEL
a. Remove the strike plate assemblies and set aside for
reinstallation later.
Note carefully where each screw goes, particularly
!
the two machine screws holding the center strikes.
They will be shorter than the rest.
3020 Multi-Point
®
• Trilennium
• Mounting Screws
Remove the screws securing the handset from the interior
escutcheon. Make sure to hold the exterior escutcheon as the screws
are being removed to prevent damage. Set aside the handset along
with all of the internal components.
Exterior
Escutcheon
KIT INCLUDES:
3020 Multi-Point Lock
®
!
b. Remove the dummy astragal from the door
panel and set it aside for reinstallation later.
