Endura Trilennium SmartKey Series Manual

Trilennium

Tools Required:

• Phillips Screwdriver

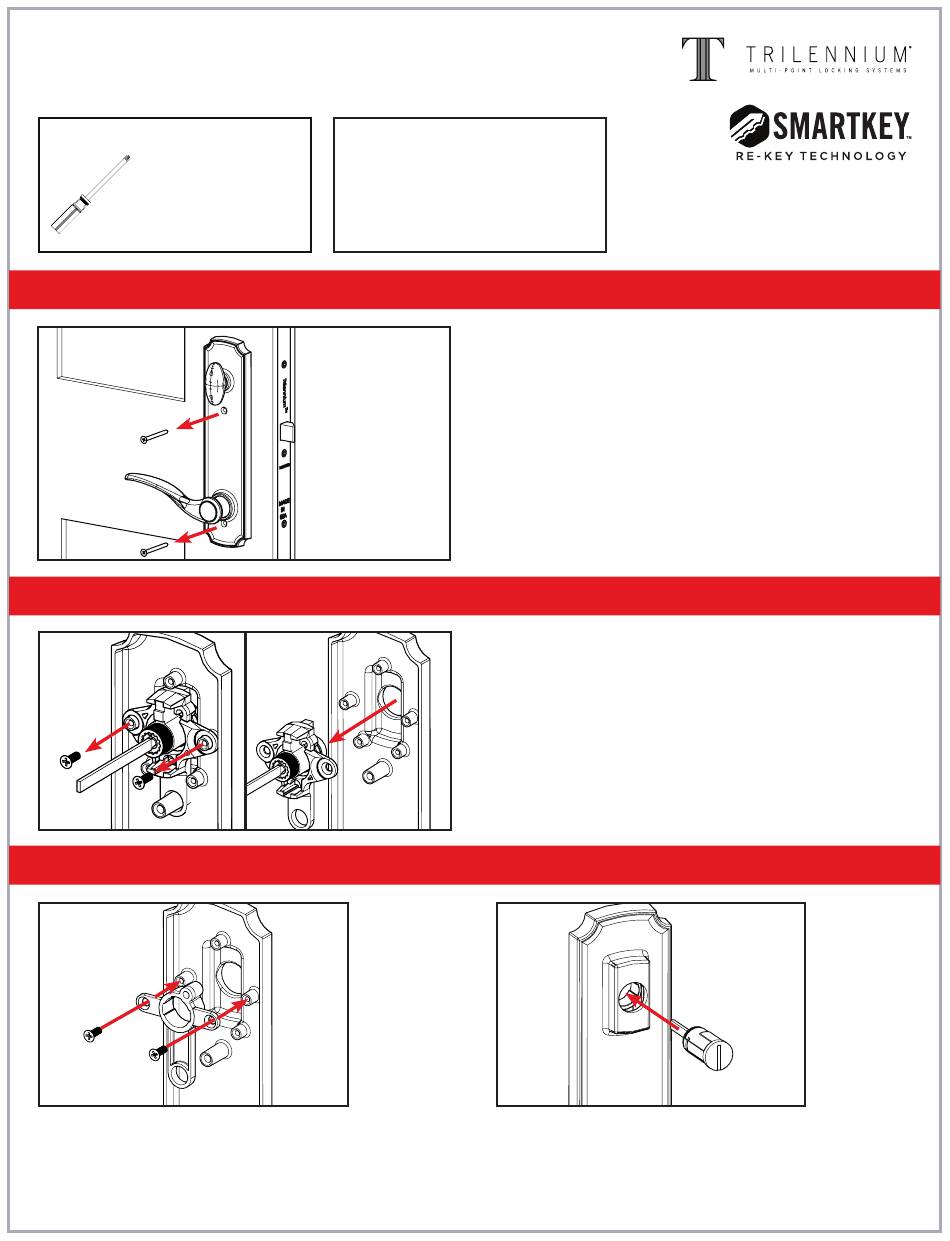

STEP 1: REMOVE THE HANDSET FROM THE DOOR PANEL

STEP 2: REMOVE THE OLD KEY CYLINDER AND MOUNT

STEP 3: INSTALL THE NEW CYLINDER MOUNT

a. Align the new mount into the escutcheon as
shown above. Use the screws removed from the
previous mount to secure the new mount into the
escutcheon.
SmartKey
∏
• SmartKey Cylinder with (2) Keys
• Retaining Clip
• #8 x 3/8" Self-Tapping Screw
• SmartKey Mounting Bracket
Retrofit
™

Kit Includes:

Remove the screws from the interior escutcheon,
securing the handset to the door panel. Be sure to hold
the exterior escutcheon so it does not fall.
NOTE: There are loose pieces within the handset that
may fall out.
Remove the screws securing the mount into the
escutcheon plate and set them aside. Remove the mount
and lock cylinder from the handset.
b. Remove the key from the new lock cylinder.
Insert the lock cylinder into the mount from the
exterior of the escutcheon plate with the smooth
side towards the bottom of the mount and the
raised portions on the top and side.
