Trilennium
Installation Instructions

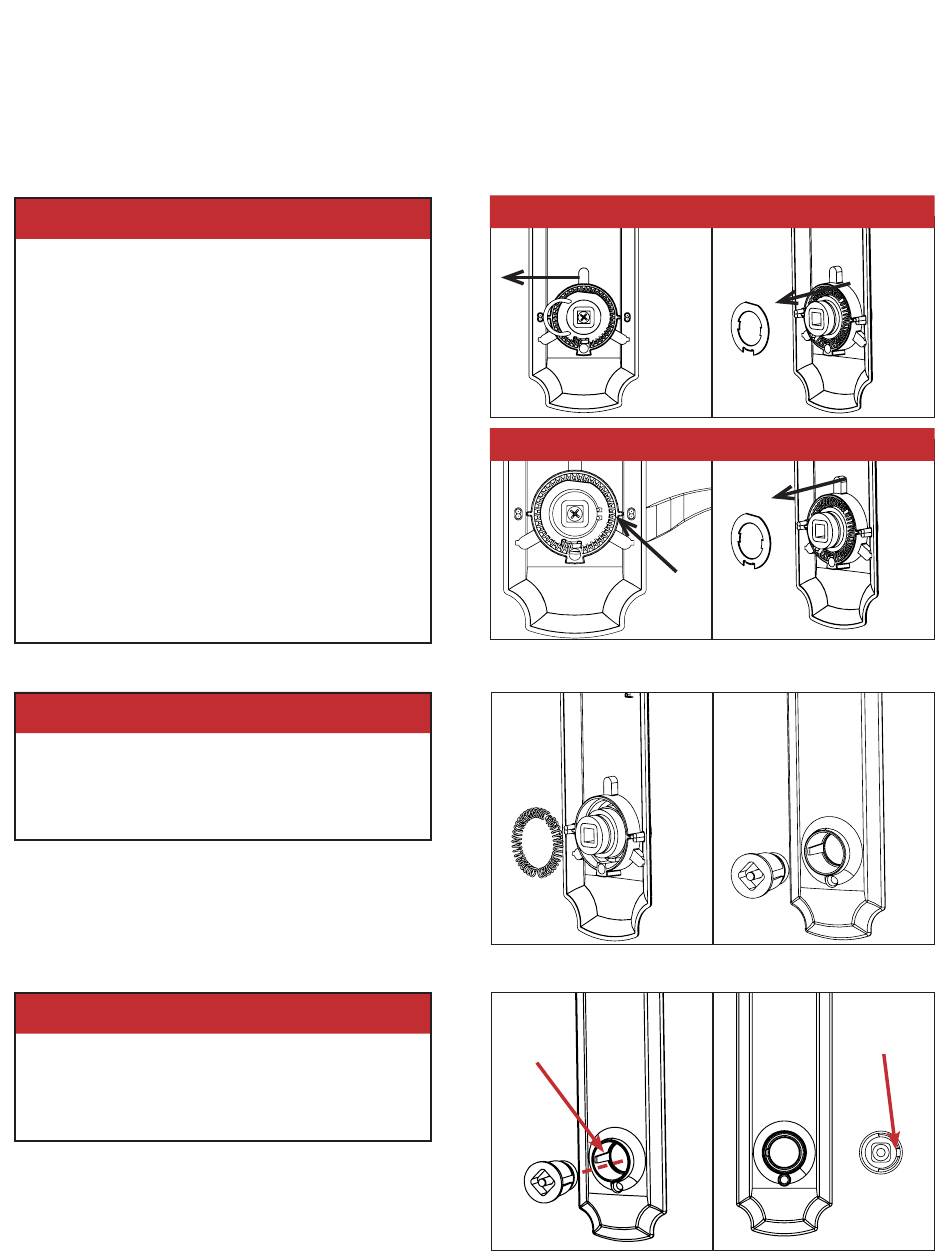

1. Remove the Snap Ring and Retaining Plate.

There are two types of snap rings used:
• Older sets will have an U-Shaped Snap Ring
• Newer sets will feature a Circular Snap Ring with
Tabs
For the U-Shaped Snap Ring:
Carefully remove the snap ring (U-Shaped locking
pin) with a flat head screwdriver.
Lift the spring retaining plate out of place (Careful,
spring may jump out of place).
For the Circular Snap Ring with Tabs:
Open the ring using the Snap Ring Pliers.
Remove the Snap Ring and lift the spring retaining
plate out of place (Careful, spring may jump out of
place).

2. Remove the Spring and Bushing

Remove the old spring.
Remove the old bushing by pushing it out of the
front of the escutcheon.

3. Insert New Bushing

Insert new bushing into escutcheon. Note the
orientation, the indention on the bushing should be
opposite the extruded stop on the escutcheon.
Bushing Replacemet Kit
®
U-SHAPED SNAP RING
CIRCULAR SNAP RING WITH TABS
Insert
Pliers
here
Stop
Indentation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trilennium and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Endura Trilennium

  • Page 1 Trilennium Bushing Replacemet Kit ® Installation Instructions U-SHAPED SNAP RING 1. Remove the Snap Ring and Retaining Plate. There are two types of snap rings used: • Older sets will have an U-Shaped Snap Ring • Newer sets will feature a Circular Snap Ring with...
  • Page 2 4. Check for Proper Orientation of Bushing. • Check the rotation on the bushing. If it is inserted correctly it will rotate. • While holding the bushing in place, turn the escutcheon over. • Orient the bushing where the two indentions are parallel with the sides of the escutcheon shown.
  • Page 3 Be sure it firmly seats in the groove. Rev. Date: 03.26.2019 8817 West Market Street ©2019 Endura Products, Inc. Colfax, NC 27235 | 800.334.2006 Innovation protected under patents and patents pending in U.S. and Canada. See www.EnduraPatents.com. www.enduraproducts.com...
