Block Diagram - Casio QV-10C Service Manual & Parts Catalogue

1 1 1 1 2 2 2 2
Camera PCB
CCD
Flash
Memory
TC5816FT-1
D RAM
HM514B00
ALJ8
Power
SupplyCircuit
DC IN (6V)
AC adaptor
Battery x 4
1 Camera Unit: It is used to provide color information.
2 Digital PCB: It controls the CCD, compressed data, stores image in memory.
3 Linear PCB: It generates the tricolor and controls the LCD display.
4 LCD: 61,380-pixel 1.8-inch Thin Film Transistor low-glare color LCD.
5 VIDEO OUT (Video I/O): Use this terminal when connecting to the VIDEO IN terminal of a TV, video tape
6 DIGITAL (SERIAL I/O): Use this terminal when connecting to a personal computer.

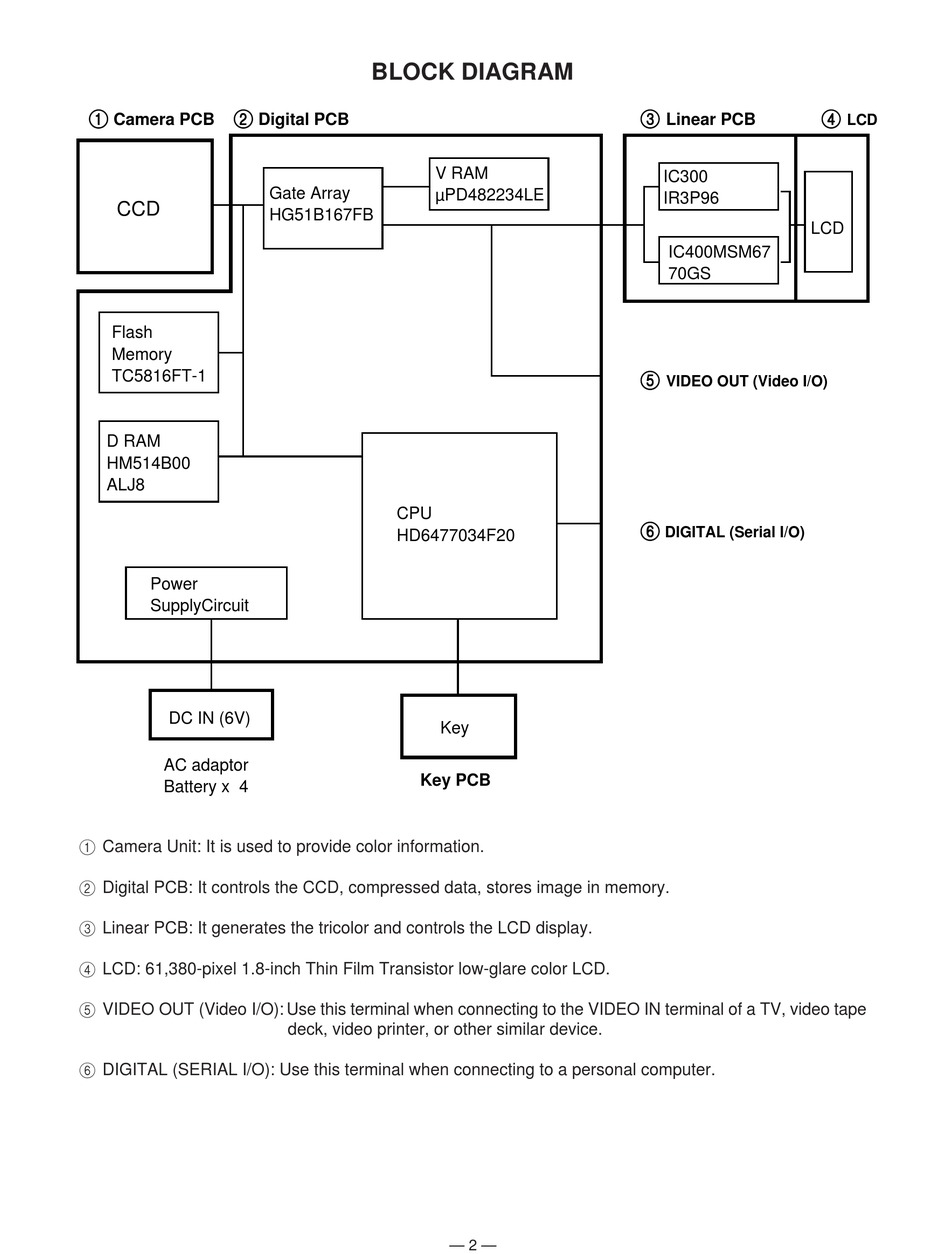

BLOCK DIAGRAM

Digital PCB
V RAM
Gate Array
µPD482234LE
HG51B167FB
CPU
HD6477034F20
Key PCB
deck, video printer, or other similar device.
Key
— 2 —
3 3 3 3
Linear PCB
IC300
IR3P96
LCD
IC400MSM67
70GS
5 5 5 5
VIDEO OUT (Video I/O)
6 6 6 6
DIGITAL (Serial I/O)
4 4 4 4
LCD
