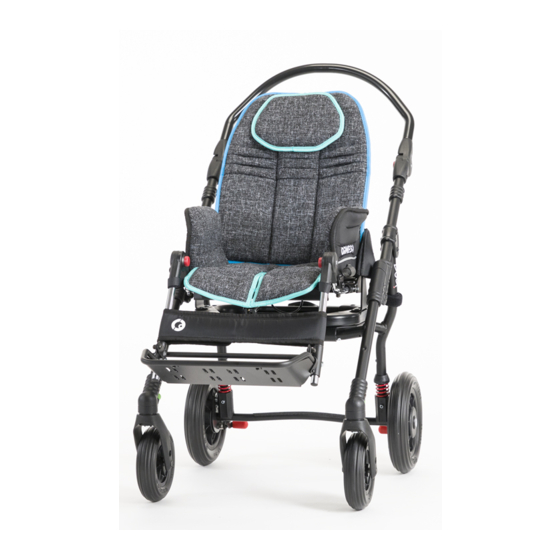

modular seating system
SEAT UNIT
with
OUTDOOR BASE
869
FOUR-WHEEL BASE
856
851
with
HI-LOW FEEDING BASE
HI-LOW COMPACT BASE
INDOOR BASES
850
COMPACT FLOOR BASE
USE AND MAINTENANCE HANDBOOK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BUG and is the answer not in the manual?

Questions and answers

Sarah
February 18, 2025

What is the max hight of the child to use this

1 comments:
Mr. Anderson
May 14, 2025

The maximum height of a child for the Ormesa BUG is 104 cm.

This answer is automatically generated

Summary of Contents for Ormesa BUG

  • Page 1 modular seating system SEAT UNIT with OUTDOOR BASE FOUR-WHEEL BASE with HI-LOW FEEDING BASE HI-LOW COMPACT BASE INDOOR BASES COMPACT FLOOR BASE USE AND MAINTENANCE HANDBOOK...
  • Page 3 If, after reading it, you still have questions, contact your retailer, who will be happy to help you, or call ORMESA directly at +39 0742 22927, send a fax to +39 0742 22637 or send an e-mail to: info@ormesa.com...
  • Page 4: Table Of Contents

    SOME EXAMPLES OF WHAT NOT TO DO WITH THE PRODUCT..........11 HOW TO TILT THE BUG AND CLIMB UP PAVEMENTS .............. 12 HOW TO USE THE BUG 4-WHEEL STROLLER WITH 869 BASE FOR TRANSPORT ON A MOVING VEHICLE (private cars, buses, etc.)................13 LABELS AND PLATES........................
  • Page 5 45° SEAT BELT ......................... 71 Padded SIDE SUPPORTS  ....................72 TRAY ..........................73 TRA Y for BUG WITH 856, 851 and 850 BASES %............... 74 5-POINT VEST HARNESS  ....................77 5-POINT HARNESS  ......................78 PARASOL  ......................... 80 PADDED COVERING for FOOTPLATE ................
  • Page 6: Warnings

    "Technical Specifications" on pages    and was exclusively designed for the transport and placement of children. - Bug is available in two sizes: change to a larger device as the child grows - Base 869 ZDV designed for outdoor use. Base6 856   DUH only intended for indoor use.
  • Page 7 USING THE SEAT UNIT WITHOUT THE USER THE BUG SEAT UNIT can be POSITIONED on EVERY FLAT SURFACE provided that the following INDICATIONS see fig.b (table) and fig. c (floor) are followed: Place the leg rest in extension or tilt it completely before placing the seat unit on the floor (Fic.
  • Page 8 USING THE SEAT UNIT WITH THE USER POSITIONED ATTENTION BEFORE POSITIONING THE CHILD THE SEAT MAKE SURE THAT UNIT IS PROPERLY LOCKED TO THE FRAME OF THE INDOOR BASE6 (856  ) OR OF THE OUTDOOR ONES (869 . THE SEAT UNIT CAN ALSO BE USED SEPARATELY FROM THE FRAME (869 AND 856   BASES) FOR VERY SHORT PERIODS AND UNDER THE CAREFUL CONTROL OF AN ADULT.
  • Page 9 ALWAYS CHECK SEAT before each use, the PROPERLY ATTACHED TO THE has been FRAME (follow the instructions herein given on S    WARNING! MAKE SURE THE LOCKING BARS ARE PROPERLY INSERTED, BEFORE YOU LOCK THE SEAT WITH THE LEVER VIEW FROM BEHIND LOCKING BAR INSERTED - LEVER LOCKED LOCKING BARS NOT INSERTED - LEVER LOCKED...
  • Page 10 USE and CONTACT a SPECIALIZED SERVICE CENTER in the maintenance of mechanical aids for disables, or directly ORMESA. THE BUG 4-WHEEL STROLLER (seat unit + 869 base) conforms the ISO 7176-19 and ANSI RESNA WC/19 standard, which defines the SAFETY REQUIREMENTS FOR TRANSPORT, facing in the direction of travel, on MOVING VEHICLES (private cars, buses, etc.)
  • Page 11: Guarantee

    GUARANTEE ORMESA warrants the product for 2 years; in case of problems, contact the retailer where you purchased it. Always ask for original spare parts, otherwise the guarantee will decline ORMESA will not be liable for damage in the following cases: - use by an unsuitable person;...
  • Page 12: Conformity Declaration Ce

    CONFORMITY DECLARATION ORMESA S.r.l. GUARANTEES AND DECLARES, under its own exclusive responsibility, that the following Medical Device, technical aid for rehabilitation: BUG SEAT UNIT WITH 4 WHEEL BASE 869, INDOOR BASES 850, 851 and 856 which this declaration refers to, conforms with the general requirements provided in the...
  • Page 13: Some Examples Of What Not To Do With The Product

    THAT ONLY ORIGINAL REPLACEMENT PARTS ARE USED BECAUSE ANY OTHER TYPE WILL VOID THE WARRANTY AND CE MARKING The Seat Unit Bug without 869 four wheels base has not been homologated ECE/44 or AS/NZS 1754 to be used as car seat. Bug+869 has been homologated for use according to ISO 7176/10 or ANSI RESNA WC/19 (see pag.
  • Page 14: How To Tilt The Bug And Climb Up Pavements

    HOW TO TILT THE BUG AND CLIMB UP PAVEMENTS BUG WITH 4-WHEEL BASE 869 ATTENTION! ADJUST THE HANDLE (see page 3) TO THE CORRECT HEIGHT FOR THE ATTENDANT to avoid excessive effort when climbing stairs and facilitate manoeuvres ADJUSTABLE HANDLEBAR...
  • Page 15: How To Use The Bug 4-Wheel Stroller With 869 Base For Transport On Amoving Vehicle (Private Cars, Buses, Etc.)

    BASE FOR TRANSPORT ON A MOVING VEHICLE (private cars, buses, etc.) THE BUG 4-WHEEL STROLLER (seat unit + 869 base) conforms to the ISO 7176-19 and ANSI RESNA WC/19 standard, which defines the safety requirements for transport, facing in the direction of travel, on moving vehicles (private cars, buses, etc.).
  • Page 16 POSITION THE 891 TIEDOWN HOOKS (4 RINGS) ON THE POINTS (NOTCHES) INDICATED ON THE FRAME (only for the 4-wheel 869 base) AND FIX THEM FOLLOWING THE INSTRUCTIONS ON PAGE 1 VIEW FROM THE FRONT 891 SECUREMENT POINTS FIXING HOLE Fig. 1 VIEW FROM BEHIND 891 SECUREMENT POINTS FIXING HOLE...
  • Page 17 2) HOW TO FIX THE 891 TIEDOWN (4 RINGS) ON THE FRAME (only for 4- wheel 869 base) ATTENTION: - suitable for ISO 10542-approved four-point straps provided in the vehicle. To anchor the stroller to the transport vehicle, see the instructions on page 1 - the child must wear both a lap belt and a diagonal shoulder belt ISO 7176-19- or ISO...
  • Page 18 3) HOW THE STROLLER IS TO BE SECURED IN A VEHICLE HOOK THE APPROVED 4-POINT BELTS OF THE VEHICLE TO THE 891-4 TIEDOWN HOOKS (4 RINGS) AS SHOWN IN THE FIGURE AND IN THE DIRECTION OF TRAVEL OF THE VEHICLE 4-POINT STRAP-TYPE TIEDOWN PUSHCHAIR RESTRAINT 891 TIEDOWN HOOKS...
  • Page 19 THE CORRECT POSITIONING OF OCCUPANT BELT RESTRAINTS ON THE USER ATTENTION! the pelvic-belt restraint should be worn low across the front of the pelvis, so that the angle of the pelvic-belt restraint is within the preferred zone of 30° to 75° to the horizontal, similar to that shown in Figure 5.
  • Page 20: Labels And Plates

    LABELS AND PLATES Name of the model Series number Article number ® s.r.l. Via A. Da Sangallo, 1 06034 Foligno (PG) ITALY Tel. +39 074222927 Fax +39 074222637 M O D E L . P A R T N ° Max load MAX.
  • Page 21: What Bug Is

    The use of BUG and its accessories always requires the prescription of a physician that verifies also its use. BUG follows the child's growth thanks to its wide range of adjustments and it has a tilt and recline system included in the seat (and not in the frame), that allows you to maintain the...
  • Page 22: Base 869 Braking

    Base 869 BRAKING LOCKS UNLOCKS Base 856 BRAKING LOCKS UNLOCKS 20/104...
  • Page 23: Initial Preparation

    CUT WITHOUT PRESSING TOO HARD WITH THE BOX AND THEN THE THE BLADE SO AS NOT TO DAMAGE THE FRAME CONTENTS OF THE BOX HOW and WHERE TO HOLD the COMPONENTS of BUG Seat unit Base 869 Base 856 21/104...
  • Page 24: Bug Seat Unit

    SEAT UNIT THE ADJUSTMENTS HEREINAFTER SPECIFIED ARE FOR THE SEAT UNIT ON THE 869, 856   baseV 22/104...
  • Page 25: Seating Unit Adjustments

    SEATING UNIT ADJUSTMENTS ON BASES ADJUSTING THE INCLINATION OF THE SEAT (TILT-IN-SPACE SYSTEM) PULL UP THE RED KNOB TILT THE SEAT KEEPING THE KNOB PULLED AND RELEASE IT WHEN ADJUSTED TO THE DESIRED POSITION VIEW FROM BEHIND RED KNOB FOR ADJUSTING THE INCLINATION OF THE SEAT 23/104...
  • Page 26: Reclining The Backrest

    RECLINING THE BACKREST PULL UP THE BLACK KNOB RECLINE THE BACKREST, KEEPING THE KNOB PULLED AND RELEASE IT WHEN THE BACKREST HAS REACHED THE DESIRED POSITION VIEW FROM BEHIND BLACK KNOB FOR ADJUSTING THE RECLINING BACKREST 24/104...
  • Page 27: Adjusting The Height Of The Backrest

    - SLIDE THE BACKREST TO THE DESIRED POSITION TIGHTEN THE SCREWS - FIX THE EXTENSION OF THE BACKREST CUSHION VIEW FROM BEHIND VIEW FROM BEHIND BACKREST ADJUSTMENT 4 SCREWS BUG S0$// BUG M(',80 WRENCH EXTENDED BACKREST CUSHION BUTTONHOLE VELCRO ON THE BACK OF THE CUSHION HOOK VELCRO...
  • Page 28: Adjusting The Width Of The Seat Base

    ADJUSTING THE WIDTH OF THE SEAT BASE SEAT WRENCH ADJUSTMENT 4 SCREWS VIEW FROM BELOW VIEW FROM ABOVE 26/104...
  • Page 29: Adjusting The Legrest

    ADJUSTING THE LEGREST PRESS BOTH BUTTONS AT THE SAME TIME TO ADJUST THE TILT OF THE LEG SUPPORT RED BUTTON 27/104...
  • Page 30: Adjusting The Footrest

    ADJUSTING THE FOOTREST a) In height SIZE S0$// SIZE M(',80 b) in tilt c) in tipping up SCREW FOR ADJUSTING WRENCH THE TILT OF THE FOOTREST 28/104...
  • Page 31: Adjusting The Depth Of The Seat

    ADJUSTING THE DEPTH OF THE SEAT WRENCH 29/104...
  • Page 32: Bug Seat With 4-Wheel Base 869

    seat with 4-WHEEL base 30/104...
  • Page 33: Technical Specifications Of Bug With Four Wheel Base 869

    TECHNICAL SPECIFICATIONS of Bug with four wheel BASE HANDLE ADJUSTABLE 180° Stroller closed with seat removed Stroller closed with seat attached - WHEELS: front, with direction locks, 17 cm (7 Inches); rear, with shock absorbers, 25 cm (10 Inches) sizes S, 30 cm (12 Inches) size M...
  • Page 34 The numbers divided by the dash specify a minimum and a maximum adjustment Measures in cm and kilos size Max load (degree) (degree) SPDOO 0°-35° 35° MHGLXP 5°-30° 40° size SPDOO 101-111 67-81 113-127 79-92 MHGLXP size Weight of the frame Weight of the seat Total weight SPDOO MHGLXP...
  • Page 35: How To Use Bug With Base 869

    HOW TO USE Bug WITH BASE OPENING the STROLLER a) WITHOUT THE SEAT A CLICK MEANS THAT THE FRAME IS SECURELY OPEN PULL THE HANDLE CLOSING UPWARDS LOCK remove velcro roll velcro MAKE SURE THE FRAME IS LOCKED b) WITH THE SEAT ATTACHED...
  • Page 36: How To Attach The Seat To The Frame

    HOW TO ATTACH THE SEAT TO THE FRAME AFTER APPLYING BRAKES, PLACE THE SEAT ON THE MOUNTING PLATE (Fig. A) FIG. A VIEW FROM ABOVE THE FRAME MOUNTING PLATE PUSH THE SEAT BACKWARDS SLIDING IT ON TO THE MOUNTING PLATE OPERATE THE LOCKING LEVER.
  • Page 37: How To Reverse The Seat So That The Child Faces His Mother(Fig.a)

    HOW TO REVERSE THE SEAT SO THAT THE CHILD FACES HIS MOTHER (FIG. A) (ONLY FOR SIZE S, THE SIZE M SEAT IS NOT REVERSIBLE) 1- UNSCREW THE 4 SCREWS 2- FOLD THE FRAME SLIGHTLY AND REMOVE THE LOWER SEAT 3- TURN THE LOWER SEAT 180°...
  • Page 38: How To Detach The Seat From The Frame

    HOW TO DETACH THE SEAT FROM THE FRAME FIRST APPLY BRAKES PUSH-BUTTON LOCKING LEVER 2- AT THE SAME TIME TURN THE LOCKING LEVER FROM LEFT TO RIGHT 3- SLIDE THE SEAT FORWARD UNLOCKS VIEW FROM BEHIND UNLOCKS 36/104...
  • Page 39: Folding The Base

    FOLDING THE BASE WE SUGGEST THAT YOU FOLD THE BASE WITHOUT THE SEAT GENTLY PULL THE PULL THE BLACK LOCKS WITH HANDLE DOWNWARD BOTH HANDS IF YOU WANT TO POSITION THE FRAME CLOSED FRAME VERTICALLY, TILT THE PUSH HANDLE SLIGHTLY (SEE PAGE 38) 37/104...
  • Page 40: Adjusting The Inclination Of The Handle

    ADJUSTING THE INCLINATION OF THE HANDLE IT FACILITATES THE ENTRANCE INTO THE ELEVATOR AND ITS TRANSPORT INTO THE CAR RED BUTTON FRONT WHEEL DIRECTION LOCKS 38/104...
  • Page 41: Bug Seat With Indoor Base 856

    seat with INDOOR base 39/104...
  • Page 42: Technical Specifications Of Bug With Base 856

    TECHNICAL SPECIFICATIONS of Bug with BASE 10 cm (4 Inches), WHEELS, swivelling with brakes. Size Max load (degree) (degree) 35° SPDOO MHGLXP 40° Weight of the frame Weight of the seat Total weight SPDOO MHGLXP The numbers divided by the dash specify a minimum and a maximum adjustment...
  • Page 43: How To Use Bug With Base 856

    HOW TO USE Bug WITH BASE HOW TO ATTACH THE SEAT TO THE FRAME AFTER APPLYING BRAKES, PLACE THE SEAT ON THE MOUNTING PLATE (FIG. A) PUSH THE SEAT BACKWARDS SLIDING IT ON TO THE MOUNTING PLATE ENGAGE THE LOCKING LEVER (AS IN FIG. B) THE...
  • Page 44: How To Detach The Seat From The Frame

    HOW TO DETACH THE SEAT FROM THE FRAME FIRST APPLY BRAKES PRESS THE SAFETY RED PUSH-BUTTON AT THE SAME TIME TURN THE LOCKING LEVER FROM LEFT TO RIGHT SLIDE THE SEAT FORWARD SAFETY RED PUSH-BUTTON LOCKING LEVER VIEW FROM BEHIND LOCKS UNLOCKS LOCKS...
  • Page 45: Adjusting The Height Of The Seat

    ADJUSTING THE HEIGHT OF THE SEAT a) Adjustment with user rear pedal height adjustment the rear pedal makes the height adjustment of the seat with user easier 43/104...
  • Page 46 b) Adjustment without user front lever height adjustment the front lever makes the height adjustment of the seat without user easier 44/104...
  • Page 47: Bug Seat With Indoor Base 850 And851

    seat WITH INDOOR BASE (FLOOR BASE) seat WITH INDOOR BASE (HIGH-LOW COMPACT BASE) 45/104...
  • Page 48: Technical Specifications Of Bug With Base 850

    TECHNICAL SPECIFICATIONS of Bug with BASE VIEW FROM ABOVE Size Max. load SPDOO MHGLXP Weight of the Weight of the seat Total weight Size frame SPDOO MHGLXP The numbers divided by the dash specify a minimum and a maximum adjustment...
  • Page 49: Technical Specifications Of Bug With Base 851

    TECHNICAL SPECIFICATIONS of Bug with BASE 10 cm (2,7 Inches),swivelling with brakes. WHEELS, VIEW FROM ABOVE Size Max. load SPDOO 34-50 MHGLXP 34-50 Weight of the Weight of the seat Total weight Size frame 17.3 86-112 23-39 SPDOO 21.5 23-39...
  • Page 50: How To Use Bug With Base 850 And 851

    HOW TO USE Bug with BASE HOW TO ATTACH THE SEAT TO THE FRAME AFTER APPLYING BRAKES, PLACE THE SEAT ON THE MOUNTING PLATE (FIG. A) PUSH THE SEAT BACKWARDS SLIDING IT ON TO THE MOUNTING PLATE ENGAGE THE LOCKING LEVER (AS IN FIG. B) THE...
  • Page 51 Base 851 BACK VIEW Base 850 BACK VIEW LOCKING LEVER SAFETY RED PUSH-BUTTON FIG. B UNLOCKS LOCKS 49/104...
  • Page 52: How To Detach The Seat From The Frame

    HOW TO DETACH THE SEAT FROM THE FRAME FIRST APPLY BRAKES 1-PRESS THE SAFETY RED PUSH-BUTTON 2- AT THE SAME TIME TURN THE LOCKING LEVER FROM LEFT TO RIGHT 3-SLIDE THE SEAT FORWARD Base 851 BACK VIEW Base 850 BACK VIEW SAFETY RED PUSH-BUTTON LOCKS UNLOCKS...
  • Page 53 THE SEAT IS NOT REVERSIBLE WITH INDOOR BASE 851 Base 850 Base 851 51/104...
  • Page 54: Adjusting The Height Of The Seat With Base 851

    ADJUSTING THE HEIGHT OF THE SEAT with BASE 851 PEDAL HEIGHT ADJUSTMENT LEVER HEIGHT ADJUSTMENT POSITIONING OF THE HEIGHT ADJUSTMENT LEVER THE HEIGHT OF THE PUSHCHAIR POSITIONING OF THE PEDAL CAN BE ADJUSTED EVEN WITH FOR THE HEIGHT ADJUSTMENT THE CHILD IN IT 52/104...
  • Page 55: Base 851 Braking

    MAXIMUM HEIGHT MINIMUM HEIGHT BASE 851 BRAKING LOCKS UNLOCKS 53/104...
  • Page 56: Accessories

    ACCESSORIES MOUNTING THE ACCESSORIES HEADREST with OCCIPITAL-PARIETAL PROTECTIONS adjustable height, width, tilt and forward-backward position 1. REMOVE THE PARTS POINTED ON FIGURE A 2. FIX THE HEADREST TO THE BACKREST USING THE 4 SCREWS (FIG.B) 3. INSERT THE BACKREST CUSHION (FIG. C) 4.
  • Page 57 TO ADJUST THE POSITION OF THE HEADREST, SLIGHTLY LOOSEN THE SCREWS LOCATED BEHIND THE HEADREST WITH THE PROVIDED WRENCH SIDE VIEW WRENCH SCREWS ADJUSTMENT IN WIDTH SIDE VIEW HEADREST (cm) (cm) (cm) S0$// 10-21 12-24 0(',80 The numbers divided by the dash specify a minimum and a maximum adjustment 55/104...
  • Page 58: Ergonomic Headrest

    ERGONOMIC HEADREST Adjustable in height, tilt, back and forwards MOUNTING 1. REMOVE THE PARTS POINTED ON FIGURE A 2. TIGHTEN THE TWO SCREWS OF THE LEFT SIDE 3. REMOVE THE LOWER KNOB AND MOVE ITS SCREW WITHOUT REMOVING IT 4. TIGHTEN THE TWO SCREWS OF THE RIGHT SIDE 5.
  • Page 59 WRENCH NUTS WRENCH 2 SCREWS TO FIX THE HEADREST 57/104...
  • Page 60 ADJUSTMENT LOOSEN THE THREE KNOBS ADJUST THE INCLINATION, THE HEIGHT AND DEPTH OF THE HEADREST TIGHTEN THE KNOBS KNOBS 58/104...
  • Page 61: Headrest With Parietal Protections

    HEADREST with PARIETAL PROTECTIONS adjustable height and width LOCKING ELEMENT WRENCH STUD 59/104...
  • Page 62 SIDE VIEW WRENCH SCREWS ADJUSTMENT IN WIDTH HEADREST (cm) (cm) (cm) S0$// 10-21 M(',80 12-24 The numbers divided by the dash specify a minimum and a maximum adjustment 60/104...
  • Page 63: Leg Dividing Inguinal Straps

    LEG DIVIDING INGUINAL STRAPS VIEW FROM BEHIND THERMIC COVER VIEW FROM BEHIND 61/104...
  • Page 64: Canopy

    8 1 9 CANOPY SCREW WRENCH CANOPY ATTACHMENT VIEW FROM BEHIND 62/104...
  • Page 65: Rain Cover

    RAIN COVER THE RAIN COVER CAN ONLY BE ATTACHED AFTER THE CANOPY (819) IS IN PLACE 1- ATTACH THE RAIN COVER POUCH WITH THE TWO BUTTONS LOCATED ON THE BACK OF THE CANOPY 2- OPEN THE ZIPPER ON THE POUCH 3- REMOVE THE RAIN COVER FROM THE POUCH AND POSITION IT SO THAT IT COVERS THE STROLLER 4- ATTACH THE RAIN COVER TO THE FRAME USING THE STRAPS WITH BUTTONS...
  • Page 66: Foot Straps

    FOOT STRAPS WRENCH Padded ABDUCTION BLOC K TIGHTEN THE KNOB 64/104...
  • Page 67: Adjustable Abduction Block 5

    834R ADJUSTABLE ABDUCTION BLOCK INSERT THE ABDUCTION BLOCK AND TIGHTEN THE KNOB WARNING! TIGHTEN THE KNOB WELL OPEN THE EDGE COVER USING THE TWO ZIPPERS ZIPPER 65/104...
  • Page 68 ADJUST THE LEFT PART OF THE ABDUCTION BLOCK SHEET IN WIDTH. ADJUST THE RIGHT PART OF THE ABDUCTION BLOCK SHEET IN WIDTH BACK VIEW 66/104...
  • Page 69 CLOSE THE EDGE COVER USING THE TWO ZIPPERS 67/104...
  • Page 70: Front Handle

    FRONT HANDLE Size Small Size Medium TIGHTEN THE KNOB 68/104...
  • Page 71: Flexible And Wrap-Around Side Supports For The Trunk

    FLEXIBLE AND WRAP-AROUND SIDE SUPPORTS FOR THE TRUNK adjustable height and width WASHER LOCKING ELEMENT WRENCH FLEXIBLE TO ADJUST THE POSITION OF THE FRONT JOINTED BRACE, LOOSEN THE SCREWS LOCATED BEHIND THE BACKREST WITH THE PROVIDED WRENCH WRENCH SCREWS ADJUSTMENT IN WIDTH VIEW FROM BEHIND STUD...
  • Page 72: Tiedown Hooks (4 Rings)

    891 TIEDOWN HOOKS (4 RINGS) only available for the 4-wheel 869 base THE BUG 4-WHEEL STROLLER (seat unit + 869 base) conforms to the ISO 7176-19 and ANSI RESNA WC/19 standard, which defines the safety requirements for transport, facing in the direction of travel, on moving vehicles (private cars, buses, etc.)
  • Page 73: Net Basket

    NET BASKET Only available for OUTDOOR BASE 45° SEAT BELT VIEW FROM BEHIND 71/104...
  • Page 74: Padded Side Supports

    Padded SIDE SUPPORTS STUD WASHER WRENCH LOCKING ELEMENT SCREWS ADJUSTMENT IN WIDTH WRENCH VIEW FROM BEHIND WRENCH 72/104...
  • Page 75: Tray

    TRAY knob VIEW FROM BELOW knob locking lever TIGHTEN THE KNOB 73/104...
  • Page 76: Tra Y For Bug With 856, 851 And 850 Bases

    824B 856, 851 and 850 BASES THIS TRAY IS ONLY FOR THE 856, 851 AND 850 INDOOR BASES 74/104...
  • Page 77 INSERT THE TRAY FOR INDOOR BASES knob WARNING! TIGHTEN THE KNOB WELL 75/104...
  • Page 78 WARNINGS! a) Before adjusting the tray, brake the 856, 851 base. b) Before adjusting the tray or change the seat tilt, take any material off as, should it tip over, it could damage or cause injury to someone DEPTH ADJUSTMENT TILT ADJUSTMENT VIEW FROM BELOW 76/104...
  • Page 79: 5-Point Vest Harness

    5-POINT VEST HARNESS VIEW FROM BEHIND 77/104...
  • Page 80: 5-Point Harness

    5-POINT HARNESS FIXING THE STRAP ON THE BOTTOM OF THE SEAT FIXING THE STRAPS ON THE FIXING THE BACK BUCKLES UPPER PART OF THE BACKREST VIEW FROM BEHIND 78/104...
  • Page 81 FIXING THE FRONT BUCKLES ASSEMBLED HARNESS Circumference sizes Min. max. (cm) S0$// 57-84 M(',80 80-108 The numbers divided by the dash specify a minimum and a maximum adjustment 79/104...
  • Page 82: Parasol

    PARASOL - PLACEMENT and MOUNTING Tighten the knob to secure it Tighten the parasol on its fixing part 80/104...
  • Page 83 – ADJUSTMENT WITH BUTTONS The opening and closing of the “parasol” are like a conventional parasol button for adjusting in backward-forward position button for adjusting from left to right 81/104...
  • Page 84 – ADJUSTMENT WITH THE FLEXIBLE PARTS Acting on the flexible parts of the bar you can adjust the parasol in all directions – REMOVING THE PARASOL To remove it PRESS the button and SIMULTANEOUSLY PULL the Parasol To reinsert the parasol it is not necessary to press the button VIEW OF THE PUSHCHAIR FROM BEHIND...
  • Page 85: Padded Covering For Footplate

    PADDED COVERING for FOOTPLATE VIEW FROM BEHIND OF THE FOOTPLATE 83/104...
  • Page 86: Hand Brake

    HAND BRAKE - TAKE THE SEAT OUT OF THE FRAME BEWARE ! The hand brake must be installed by qualified personnel, such as the manufacturer or the dealer who sold the product or a specialized mechanical company - ASSEMBLING THE TWO PLATES WRENCH SCREW The plates...
  • Page 87 - FIXING THE LEVER OF THE HAND BRAKE 1-GET THE PLASTIC PART OF THE BRAKE LEVER WARM, BY USING A DRYER 2-PUT THE BRAKE LEVER ON THE PUSH HANDLE 3-FIX AND TIGHTEN THE SCREW WASHER SCREW WRENCH 85/104...
  • Page 88 - FIXING THE CABLE CLIPS LOOSEN THE 4 SCREWS REMOVE THE 4 EXISTING PLASTIC BUSH FIX THE 4 PLASTIC BUSH IN EQUIPMENT AND THE CABLE CLIPS FIX THE SCREWS WRENCH WRENCH WRENCH WRENCH BUSH IN EQUIPMENT CABLE CLIPS IN EQUIPMENT 86/104...
  • Page 89 - FIXING THE DOUBLER OF THE BRAKE LET THE FREE END OF THE CABLE, PASS THROUGH THE CABLE CLIPS WRENCH SCREW DOUBLER COVER LET THE FREE END DOUBLER OF THE CABLE, PASS THROUGH CABLE CLIPS CABLE CLIPS 87/104...
  • Page 90 - FIXING THE CABLES CABLE CLIPS CABLE LOCK HOLE TO INSERT THE CABLE CABLE TERMINAL LOCK BLACK SHEATH CABLE TRANSPARENT EXTERNAL SHEATH 88/104...
  • Page 91: Vent Tray

    VENT TRAY Available only for 869 external base NUT M6 WRENCH SCREW M6X16 WRENCH ADJUSTABLE SCREW M6X25 BUSHING HOW TO FIX THE ADJUSTABLE BUSHING 89/104...
  • Page 92 NUT M6 SCREW M6X25 ADJUSTABLE BUSHING SCREW M6X25 HOW TO FIX THE ADJUSTABLE BUSHING 90/104...
  • Page 93: Oxygen Bottle Holder

    OXYGEN BOTTLE HOLDER BEWARE! during transport on a moving vehicle, the oxygen bottle and the respirator have to be removed from the pushchair frame to avoid damages in case of an accident, and they have to be secured to the vehicle to reduce the chances of injury to the other occupants Remove the 2 screws SCREWS TO REMOVE TOP VIEW...
  • Page 94 assemble the upper frame using the supplied screws SUPPLIED SCREWS SUPPLIED NUTS SUPPLIED SCREWS WRENCH SUPPLIED NUTS WRENCH 92/104...
  • Page 95 assemble the lower frame through the 4 buckles Fix the bottle WARNING! Pull well all the straps so to avoid the oscillation of the oxygen bottle 93/104...
  • Page 96: 4-Point Seat Belt

    4-POINT SEAT BELT BEFORE FIXING THE 4-POINT SEAT BELT REMOVE THE SIDE UPHOLSTERIES (SEE PAGE ) buckle 94/104...
  • Page 97 ADJUSTMENT IN DEPTH nut M5 wrench REAR VIEW 95/104...
  • Page 98: Sibling Rear Footboard

    SIBLING REAR FOOTBOARD Available only for 869 external base The 921sibling rear footboard must be fixed on the back thanks to the plastic straps. It has a telescopic arm to adjust the footboard in depth, screws to adjust the tilt and two pivoting wheels.
  • Page 99 In effect, adjusting the telescopic arms to their maximum extension, could reduce the available space inside the push handle excessively and/or the footboard could hinder the driver. BUG seat with 4 wheel base 869 97/104...
  • Page 100 - MOUNTING VIEW FROM BEHIND TO MOUNT THE STRAPS FOLLOW THE INSTRUCTIONS OF THE MANUFACTURER OF THE BOARD where to place the straps to position the board Mounted straps TO ATTACH THE STRAPS FOLLOW THE INSTRUCTIONS OF THE MANUFACTURER OF THE BOARD Board attached 98/104...
  • Page 101: Bottle Holder

    BOTTLE HOLDER 99/104...
  • Page 102: Attaching The Cushion

    ATTACHING THE CUSHION BUTTONHOLE VELCRO ON THE BACK OF THE BACKREST HOOK VELCRO EXTENSION OF THE BACKREST CUSHION EXTENDED BACKREST CUSHION INSIDE VELCRO STRAPS WITH BUTTON TO FIX THE CUSHION UNDERNEATH VELCRO LEGREST BAND INSIDE VELCRO 100/104...
  • Page 103 SOFT PART INSIDE BUTTON RIGID PART VIEW FROM BEHIND STUD INSIDE VELCRO BUTTONS TO FIX THE CUSHION IN THE BACK OF THE BACKREST 101/104...
  • Page 104: Maintenance, Cleaning And Disinfection

    MAINTENANCE, CLEANING AND DISINFECTION REGULAR (OR PREVENTIVE) MAINTENANCE ORDINARY MAINTENANCE OF THE AID AND ITS ACCESSORIES MUST BE PERFORMED MONTHLY. REGULAR MAINTENANCE IS REQUIRED TO KEEP THE PRODUCT WORKING PROPERLY AND SAFELY AND IT IS ESSENTIAL FOR KEEPING THE CE MARK. THE MANUFACTURER IS NOT LIABLE FOR THE PERFORMANCE OF THE PRODUCT UNLESS REGULAR MAINTENANCE IS PERFORMED (ATTACHMENT I, DIRECTIVE 2007/47/EC).
  • Page 105: Customer Service And Spare Parts

    LUBRICATION The product does not need any special lubrication DO NOT GREASE THE REAR WHEELS because this could make the BRAKES INEFFICIENT. MAINTAINING THE WHEELS At least once a month, clean the wheels of residues (threads, hair, etc.) that can build up on rotating parts.
  • Page 106: Conditions For Durability, Reuse And Reassignment To A New User

    Quality Management System certificated in 1998 according to ISO 9001, there is adequate confidence that the average lifespan of the BUG is about 5 years, on condition that it is used according to the directions given in the user manual.
  • Page 108 CRASH TEST ACCORDING TO THE ISO 7176-19 AND ANSI RESNA WC/19 Authorized Dealer The technical Data and information given in this handbook are not binding. ORMESA reserves the right to carry out any necessary change without prior notice or replacements...
