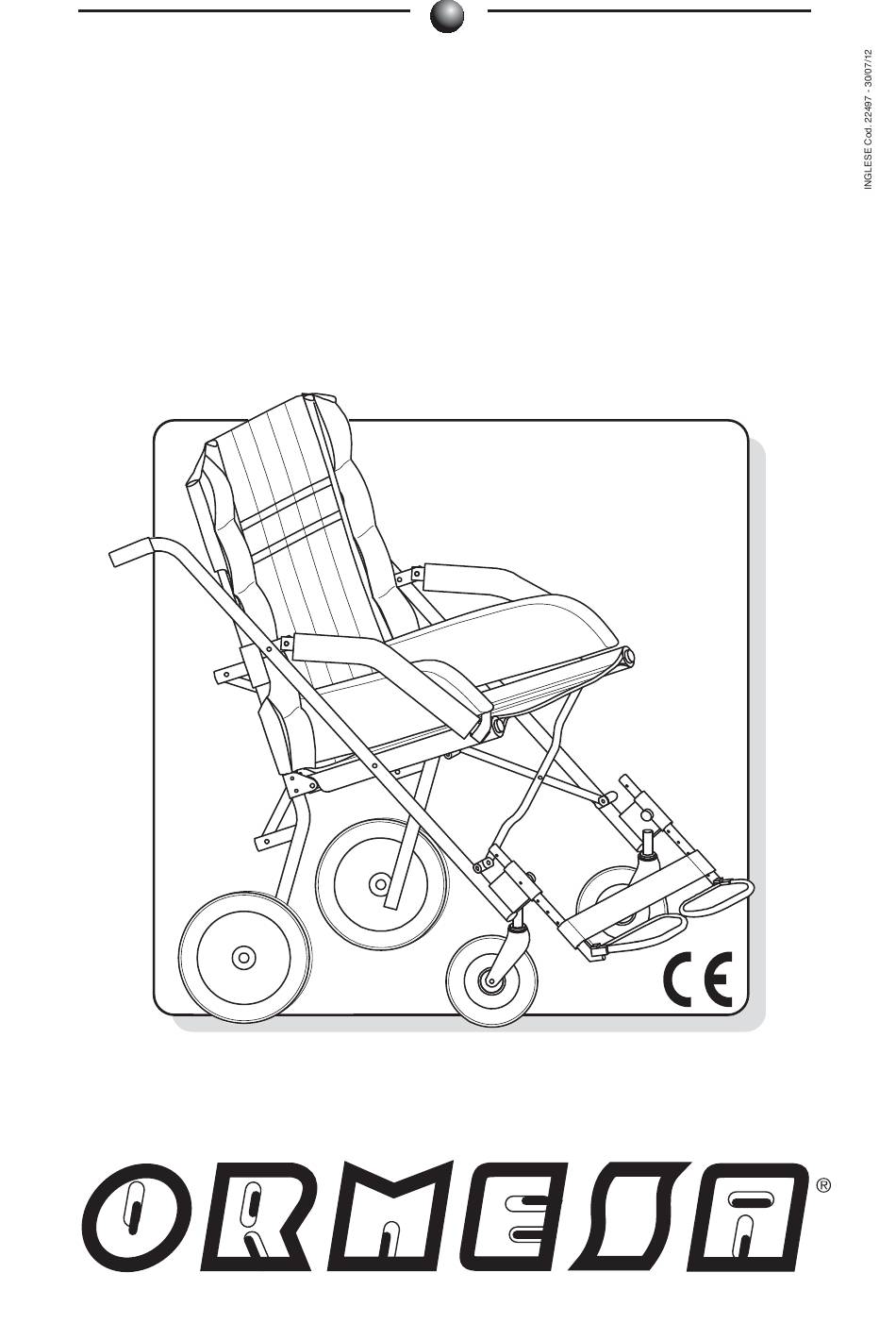

- Page 1 CLIP PUSHCHAIR PUSHCHAIR FOLDABLE LIKE AN UMBRELLA USE AND MAINTENANCE HANDBOOK...
- Page 3 If, after reading it, you still have questions, contact your retailer, who will be happy to help you, or call ORMESA s.r.l. directly at +39 0742 22927, send a fax to +39 0742 22637 or send an e-mail to: info@ormesa.com...
-
Page 4: Table Of Contents
TABLE OF CONTENTS WARNINGS ........................3 GUARANTEE ........................5 STORAGE AND TRANSPORT INSTRUCTIONS ............5 SOME EXAMPLES OF WHAT NOT TO DO WITH CLIP-4 ..........6 LABELS AND PLATES ....................6 HOW TO TILT THE PUSHCHAIR TO CLIMB UP PAVEMENTS ......... 7 BRAKING THE PUSHCHAIR .................. -
Page 5: Warnings
the manual reflects the technical state of the product at the time it was sold. ORMESA RESERVES THE RIGHT TO MAKE ANY CHANGES TO THE PRODUCT OR MANUAL... - Page 6 Any CHANGES in the product and the REPLACEMENT WITHOUT ORIGINAL PARTS OR COMPONENTS ARE NOT AUTHORIZED. REFER ONLY TO ORMESA, otherwise warranty and marking will be voided In case of DOUBT about the SAFETY of the product or DAMAGE to parts or components, you...
-
Page 7: Guarantee
GUARANTEE ORMESA s.r.l. guarantees the product for 2 years: in the case of problems, contact the retailer where you purchased it. Always demand original replacement parts or you will risk voiding the warranty. ORMESA will not be liable for damage in the following cases: - use by an unsuitable person;... -
Page 8: Some Examples Of What Not To Do With Clip-4
SOME EXAMPLES OF WHAT NOT TO DO WITH CLIP-4 DO NOT CARRY THE CHILD OVER ROUGH OR STEEP SURFACES OR STAIRS - DO NOT ALLOW CHILDREN TO USE THE PUSHCHAIR OR EVEN PLAY WITH IT - NEVER LEAVE THE CHILD IN THE PUSHCHAIR UNATTENDED - NEVER STOP CLIP-4 ON SLOPING GROUND - DO NOT LET ANYONE CLIMB ON THE FOOTREST OR STAND ON THE BACK - DO NOT LIFT THE PUSHCHAIR BY THE LEG SUPPORT FRAME OR FOOTREST TO... -
Page 9: How To Tilt The Pushchair To Climb Up Pavements
HOW TO TILT THE PUSHCHAIR TO CLIMB UP PAVEMENTS DESCEND FACING BACKWARD CLIMB FACING FORWARD Page 7 of 33... -
Page 10: Braking The Pushchair
BRAKING THE PUSHCHAIR ATTENTION! YOU MUST ENGAGE THE BRAKES BEFORE PLACING OR REMOVING THE CHILD FROM THE PUSHCHAIR OR MAKING ANY ADJUSTMENTS. LOCKS UNLOCKS Page 8 of 33... -
Page 11: Technical Features
Measures in cm and weights in kg HYPHEN-SEPARATED NUMBERS INDICATE THE MINIMUM AND MAXIMUM RANGE OF ADJUSTMENT CLIP 4 WEIGHT OF THE AID KG. 12,5 MAX. LOAD KG. 76 SEAT WIDTH WITHOUT PADDED SIDES 45 CM. Page 9 of 33... -
Page 12: Initial Preparation
VOLUME WEIGHT CLIP 4 0,297 HOW TO REMOVE THE PUSHCHAIR FROM THE BOX ATTENTION! CUT WITHOUT PRESSING TOO HARD SO AS NOT TO DAMAGE THE CONTENTS OF THE BOX REMOVE CLIP 4 FROM THE BOX Page 10 of 33... -
Page 13: Opening The Pushchair
OPENING THE PUSHCHAIR 1. RAISE THE PUSHCHAIR TO A VERTICAL POSITION 2. OPEN THE PUSHCHAIR 3. LOCK THE REAR TENSIONERS BY PUSHING THEM TO THE END OF THEIR TRAVEL 4. OPEN THE FOOTRESTS Page 11 of 33... - Page 14 Page 12 of 33...
-
Page 15: How Clip-4 Works And How To Use It
HOW CLIP-4 WORKS AND HOW TO USE IT FOLDING the PUSHCHAIR for TRANSPORT 1. 2. TIP UP THE FOOTRESTS UNLOCK THE REAR TENSIONERS FOLD THE PUSHCHAIR . PUSHCHAIR FOLDED Page 13 of 33... - Page 16 Page 14 of 33...
-
Page 17: Reclining The Backrest
RECLINING THE BACKREST REAR VIEW TO CHANGE THE BACK’S RECLINING POSITION ADJUST THE RED ZIPPERS ON THE BACKREST REAR VIEW Page 15 of 33... -
Page 18: Adjusting The Height Of The Footrests
ADJUSTING the HEIGHT of the FOOTRESTS 1. UNSCREW AND TAKE THE TWO BOLTS OFF 2. POSITION THE FOOTRESTS AT THE DESIRED HEIGHT 3. INSERT AND SCREW THE TWO BOLTS Page 16 of 33... -
Page 19: Mounting Accessories
MOUNTING ACCESSORIES FRONT WHEEL DIRECTION LOCKS SPRING LOCK SPRING LOCK "OPEN" POSITION "CLOSED" POSITION Page 17 of 33... -
Page 20: Leg Dividing Inguinal Straps
LEG DIVIDING INGUINAL STRAPS LOOP VELCRO HOOK VELCRO HOOK VELCRO LOOP VELCRO THERMIC COVER VIEW FROM BEHIND Page 18 of 33... -
Page 21: Canopy 819
CANOPY Page 19 of 33... -
Page 22: Rain Cover 825
RAIN COVER ATTENTION! THE RAIN COVER CAN ONLY BE ATTACHED AFTER THE CANOPY (819) IS IN PLACE 1.ATTACH THE RAIN COVER POUCH WITH THE TWO BUTTONS LOCATED ON THE BACK OF THE CANOPY 2. OPEN THE ZIPPER ON THE POUCH 3. -
Page 23: Footstraps 827
FOOTSTRAPS PADDED BODY SIDE SUPPORTS Page 21 of 33... -
Page 24: Adjustable Head Side Supports
ADJUSTABLE HEAD SIDE SUPPORTS VEST HARNESS Page 22 of 33... -
Page 25: 5-Point Harness
5-POINT HARNESS A. FIXING THE STRAP ON THE SEAT B. FIXING THE STRAPS ON THE UPPER PART OF THE BACKREST Page 23 of 33... - Page 26 C. FIXING THE FRONT AND THE BACK BUCKLES D. HARNESS MOUNTED cm 78- cm 108 Page 24 of 33...
-
Page 27: 5-Point Vest Harness
5-POINT VEST HARNESS Page 25 of 33... - Page 28 Page 26 of 33...
-
Page 29: 45° Seat Belt
45° SEAT BELT Page 27 of 33... -
Page 30: Seat Belt 828
SEAT BELT REAR VIEW Page 28 of 33... -
Page 31: Taking Off And Fixing The Upholstery
TAKING OFF AND FIXING THE UPHOLSTERY ALUMINIUM REINFORCEMENT RIBS INSIDE THE BACKREST ALUMINIUM REINFORCEMENT RIBS INSIDE THE SEAT STUD ZIPPER STRAPS WITH STUDS Page 29 of 33... - Page 32 REAR VIEW OF THE BACKREST VIEW FROM UNDER THE SEAT VELCRO VELCRO SCREW ZIPPER ZIPPER ZIPPER ZIPPER VELCRO WE RECOMMEND TAKING OFF AND MOUNTING THE BACKREST CUSHION AND SEAT WITH THE FRAME IN THE SEMI-OPEN POSITION Page 30 of 33...
-
Page 33: Maintenance, Cleaning And Disinfection
MAINTENANCE, CLEANING AND DISINFECTION REGULAR (OR PREVENTIVE) MAINTENANCE REGULAR MAINTENANCE MUST BE PERFORMED ONCE A MONTH. REGULAR MAINTENANCE IS REQUIRED TO KEEP THE PRODUCT WORKING PROPERLY AND SAFELY AND IS ESSENTIAL FOR KEEPING THE CE MARK. THE MANUFACTURER IS NOT LIABLE FOR THE PERFORMANCE OF THE PRODUCT UNLESS REGULAR MAINTENANCE IS PERFORMED (ATTACHMENT I, DIRECTIVE 2007/47/EC). -
Page 34: Customer Service And Spare Parts
CLEANING THE WHEELS Keep the wheels clean by removing build-ups of dust, hair and anything else that can stick to them LUBRICATION The product does not need any special lubrication except if the wheels are not turning freely. In these cases, use a commercial grease spray, paying attention to the warnings on the container. AFTER LUBRICATION, DRY THE TREATED PARTS WELL TO REMOVE THE RESIDUAL GREASE. -
Page 35: Conditions For Durability, Reuse And Reassignment To A New User
Quality Management System certificated in 1998 according to ISO 9001, there is adequate confidence that the average lifespan of the CLIP 4 is about 5 years, on condition that it is used according to the directions given in the user manual. - Page 36 SINCE 1980 REGISTERED - USA PRODUCT CERTIFIED BY CERAH FRANCE Authorized Dealer The technical Data and information given in this handbook are not binding. ORMESA reserves the right to carry out any necessary change without prior notice or replacements...
