Theben TimeGuard TRT033 Manual page 4

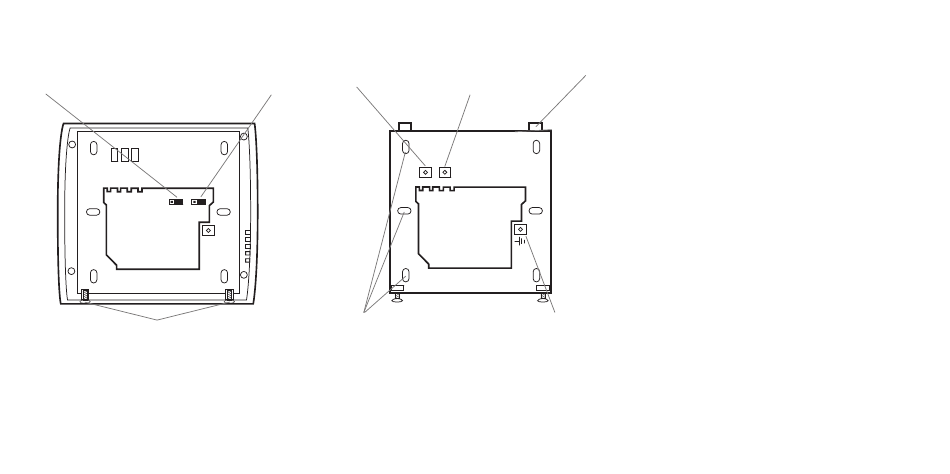

Rear View of TRT033
Jumper shown
in PID off
position
PID SWING
ON OFF 1.0 0.5
Wall plate retaining screws
(at bottom of TRT033)
Fig. 2
Back Plate Removed
Jumper shown Live
in Swing 1.0ºC terminal
position (L)
Alternative
fixing holes
Fig. 3
Contents
TRT033 thermostat
TRT033 wall plate
TRT033 instruction leaflet
Switched Retaining
live terminal tab
(SL)
Terminal for maintaining
continuity of earth
2 x wall plugs
2 x screws
2 x AA batteries
2. Siting
The TRT033 must be sited where it will not be
influenced by heat sources, for example above a
radiator or a television or a refrigerator/freezer,
or in direct sunlight or subjected to draughts.
The product requires air circulation, so do not
position above or below shelving or other wall
mounted obstacles.
It should be mounted approximately 1.5m
above floor level.
3. Installation
This product must be installed in accordance
with the appropriate building and wiring
regulations.
In all cases if there is a doubt as to how to
proceed with an installation consult a qualified
electrician, your local authority's building
control department or the Timeguard helpline
(020 8450 0515).
The TRT033 is designed to be surface mounted
on the supplied wall plate.
Always isolate the mains supply before
removing the unit from its wall plate.
