Motors | Automation | Energy | Transmission & Distribution | Coatings

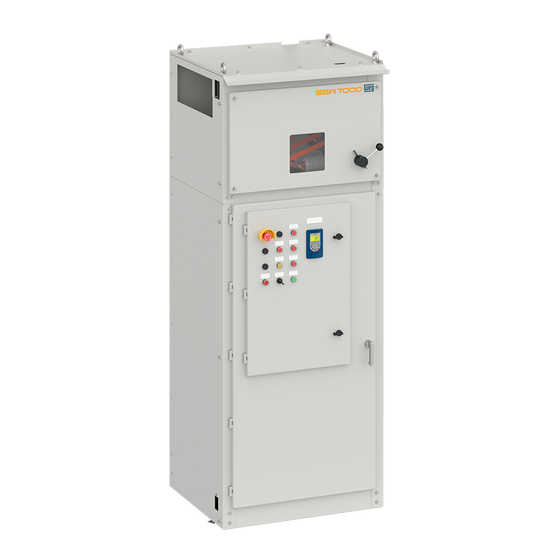

Soft-Starter
SSW7000
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSW7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WEG SSW7000

Summary of Contents for WEG SSW7000

  • Page 1 Motors | Automation | Energy | Transmission & Distribution | Coatings Soft-Starter SSW7000 User’s Manual...
  • Page 3 User’s Manual Series: SSW7000 Language: English Document Number: 10001461783 / 08 Publication Data: 11/2019...
  • Page 4 Summary of Revisions...
  • Page 5 Summary of Revisions The table describes the revisions made to this manual. Revision Description Chapter First edition Correction of table 8.1 Section update 10.3.1 – safe sectioning D.O.L. starting description – section 10.4 SSW7000C Description 3, 5, 6 and 9 General Revision 1 - 10 Inclusion of the 500A and 600A models...

  • Page 6: Table Of Contents

    Ground Fault Protection ....................3-4 3.1.13. Command for Power Factor Correction ................ 3-5 3.2. SSW7000 IDENTIFICATION LABEL ....................3-7 3.3. HOW TO SPECIFY THE SSW7000 MODEL (SMART CODE) ............3-8 3.4. RECEIVING AND STORAGE ......................3-8 3.4.1. Unpacking ........................3-9 3.4.2.
  • Page 7 Location of the Power and Grounding Connections ............5-24 5.2.4. Recommended Power and Grounding Cables ............... 5-26 5.2.5. Fuses ........................... 5-27 5.2.6. Connection of the Power Supply to the SSW7000 ............5-28 5.2.7. Power Supply Short Circuit Rating ................5-28 5.2.8. Motor Connection......................5-28 5.2.9.
  • Page 8 Contents...

  • Page 9: Safety Instructions

    Safety Instructions 1 SAFETY INSTRUCTIONS This manual contains the information necessary for the correct use of the SSW7000. It has been written to be used by qualified personnel with suitable training or technical qualification for operating this type of equipment.

  • Page 10: Preliminary Recommendations

    Disconnection Sequence. High voltages and rotating parts (fans, if installed) may be present on the SSW7000 even after shut down or power disconnection. Wait at least 3 minutes for the complete discharge of the capacitors and the stopping of the fans.

  • Page 11: About The Manual

    Anybus-CC Communication Manual.  SoftPLC Manual  Reproduction of this manual content is prohibited, as a whole or in parts, without written permission from WEG. 2.1. TERMS AND DEFINITIONS 2.1.1. Terms and Definitions Used in the Manual Amp, A: ampere AC: alternating current.
  • Page 12 UCBT: Low voltage control unit. UCMT: Medium voltage control unit. USB: “Universal Serial BUS”; it is a type of connection in the perspective of the “Plug and Play” concept. V: volts. SSW7000 | 2-2...

  • Page 13: About The Ssw7000

    About the SSW7000 3 ABOUT THE SSW7000 The “Soft-Starter WEG 7000” is a high performance product that allows the starting/stopping control and protection of medium voltage three-phase induction motors, thus preventing mechanical shocks ant the load, current peaks in the supply line and damage to the motor.

  • Page 14: Main Characteristics

    IEC 62271-100 and with the standards of the main industrialized countries. This circuit breaker is sized to withstand direct on line starting and the SSW7000 rated current at full load. It also allows the implementation of a direct on line starting logic.

  • Page 15: Bypass Contactor

    SSW7000 in its rated start operation duty, which is specified in the section 9.1 – Power Data. This contactor is sized to withstand direct on line starting and the SSW7000 rated current at full load. It also allows the implementation of a direct on line starting logic.

  • Page 16: Control

    For further details, refer to sections 15.5 - Motor Thermal Protection and 15.6 - Motor Thermal Class Protection, of the programming manual. 3.1.11. Tests The SSW7000 has a test routine with the purpose of verifying the main panel connections. For more details, refer to the section 7.1- SSW7000 Operation Verification in this manual and to the section 14.2 - Test Mode in the...

  • Page 17: Command For Power Factor Correction

    Control for a SSW7000 The SSW7000 can control the motor power factor correction (PFC) capacitor bank directly through a digital output (DO1, DO2 or DO3) programmed for “PFC Control”. The digital output will then be activated after the motor starts and after the bypass contactor closes, thus preventing the capacitor bank from being activated with the motor turned off or during the motor start or stop.
  • Page 18 Figure 3.7: Parallel connections between "n" SSW7000C In order to automatically control the motor power factor correction (PFC) capacitor banks for multiple SSW7000, a digital input (DI1, DI2, DI3, DI4, DI5 or DI6) must be set to “PFC Lock”, a digital output (DO1, DO2 or DO3) must be set to “PFC Control”, and another digital output must be set to “PFC Lock”.

  • Page 19: Ssw7000 Identification Label

    The start of multiple SSW7000 is done sequentially and/or simultaneously. For the simultaneous start condition of two or more SSW7000, the PFC capacitor banks will be enabled at the same time after the start of the last motor. As described by IEC 60871-1, the peak value of the capacitor bank inrush current must not exceed 100 times the value of the rated current.

  • Page 20: How To Specify The Ssw7000 Model (Smart Code)

    About the SSW7000 3.3. HOW TO SPECIFY THE SSW7000 MODEL (SMART CODE) In order to specify the correct model of WEG Soft-Starter, use the product smart code. It is composed of several parts, which are described below: SSW7000 Table 3.1. Smart Code...

  • Page 21: Unpacking

    3.4.1. Unpacking Use proper tools to unpack the SSW7000 panel and its power arms. During this process, make sure that all the items listed in the documentation that comes with the product are present and in perfect conditions. Contact your local WEG representative or WEG service in case of any irregularity.

  • Page 22: Panel And Power Arm Storage

    About the SSW7000 Figure 3.11: b) SSW7000C Power Arms with package 3.4.2. Panel and Power Arm Storage If the panel and/or the power arms are not installed soon after unpacked, the following storage instructions must be followed:  They must be packed again in their original packages, but without the plastic film, in order to avoid moisture condensation.

  • Page 23: Hmi

    The HMI can be installed and removed even when power is applied to the SSW7000. The HMI supplied with the product can also be used to command the SSW7000 remotely. Therefore, use a cable with male and female D-Sub9 (DB9) connectors, with pin-to-pin connections, or a market standard Null Modem cable.
  • Page 24 SSW7000 | 4-2...

  • Page 25: Installation And Connection

    Installation and Connection 5 INSTALLATION AND CONNECTION This chapter describes the SSW7000 electrical and mechanical installation procedures. The presented instructions and guidelines must be followed aiming personnel and equipment safety, as well as the SSW7000 proper operation. ATTENTION! Only trained personnel, qualified to work with medium voltage installations, must handle the SSW7000 and perform the mechanical and electrical installation.
  • Page 26 Installation and Connection Table 5.4. Power arms dimensions with package – SSW7000 frames A and B. Width Height Depth Weight Rated Voltage mm (in) mm (in) mm (in) kg (lb) (36.81) (22.09) (25.31) (191.8) 4,16 (36.81) (22.09) (29.92) (227.07) (36.81) (22.09)

  • Page 27: Panel And Arm Dimensions

    The SSW7000A is supplied in panels with the following external dimensions: Figure 5.1 SSW7000A IP41 panel Table 5.7. SSW7000A IP41 panel Weight Width Height Depth (without the arms) mm(in) mm in) mm (in) kg (lb) 1200 2365 1007 720,1 (47.24) (93.11) (39.64) (1587.55) SSW7000 | 5-3...
  • Page 28 1060 2397 1000 910,1 (41.76) (94.34) (39.37) (2006.43) The power arms of the SSW7000 are supplied separately from the panel and individually packed. Table 5.9: SSW7000 Power arm dimensions without package Rated Voltage Width Height Depth Weight mm (in) mm (in)
  • Page 29 The dimensions for the compacts versions NEMA12 and IP54 - SSW7000C are given below. Figure 5.3 (a): Nema 12 panel - SSW7000C. Table 5.10: SSW7000C Nema 12 panel Weight Width Height Depth (without arms) mm (in) mm (in) kg (lb) (in) 2418 546,4 (36) (95) (32) (1205) SSW7000 | 5-5...
  • Page 30 The power arms of the SSW7000C are supplied mounted on the panel. Table 5.12 SSW7000C Power Arms dimensions without package Rated Voltage Width Height Depth Weight mm (in) mm (in) mm (in) kg (lb) (8.90) (18,03) (19.0) (44,1) 4,16 (9.50) (23.03) (19.0) (66,2) (10.43) (23.03) (19.0) (88,2) SSW7000 | 5-6...
  • Page 31 2100 2300 1300 2284 (82.68) (90.55) (51.18) (5035) The power arms of the SSW7000 are supplied separately from the panel and individually packed. Table 5.14: SSW7000 Power arm dimensions without package Rated Voltage Width Height Depth Weight mm (in) mm (in)

  • Page 32: Handling Recommendations

    When using movable hydraulic jacks, forklifts, rollers or other movement means, distribute the support points from one extreme of the panel through the other, avoiding pressure on fragile areas. SSW7000 | 5-8...

  • Page 33: Positioning And Mounting

    Make sure there is access for the electrical connections: power supply input and motor cables, command, motor protections, analog and digital inputs and outputs. Figure 5.5 (a): Expansion bolt for anchoring of the SSW7000 panel to the floor – dimensions in mm [in] Opening for cables installation (a): IP41 48”...
  • Page 34 Figure 5.5 (c): Anchoring of the SSW7000D panel to the floor – dimensions in mm [in] The adjustment of the mechanical interlock of the doors of the medium voltage compartment of the SSW7000 and SSW7000C is carried out at the factory. If any problem is detected in the mechanical interlock operation,...
  • Page 35 Figure 5.7 (b): Position of the door interlock adjustment bolts of the medium voltage compartment, model 2 - SSW7000C. Figure 5.7 (c): Position of the door interlock adjustment bolts of the medium voltage compartment, model 3 SSW7000D. SSW7000 | 5-11...

  • Page 36: Medium Voltage Compartment

    The disconnect switch, the fuses, the input contactor, the bypass contactor, the power arms and the control board 2 are stored in the medium voltage compartment. Figure 5.8: Medium voltage compartment (from view and rear view) – IP41 Figure 5.9: Medium voltage compartment (front view) SSW7000C – Nema 12 SSW7000 | 5-12...

  • Page 37: Low Voltage Compartment

    (a): Frames A, B e C (b): Frame D Figure 5.11: Low voltage compartment. For more details see chapter 6 - Internal Connections. SSW7000 | 5-13...

  • Page 38: Power Cable Entry

    Figure 5.12. (a) and (b): Passage of the power cables – IP41. Figure 5.13. (a) and (b): Passage of the power cables – Nema 12 Figure 5.13. (c) and (d): Passage of the power cables – Nema 12. SSW7000 | 5-14...

  • Page 39: Control Cable Entry

    5.1.11. Control Cable Entry The passage of the control cables (digital and analog inputs and outputs, thermistor PT100 and low voltage supply cables) in the panels IP41 and Nema 12 of the SSW7000 is shown in figure 5.15 figure 5.16 respectively.

  • Page 40: Power Arm Insertion

    Figure 5.17 (a) to (c): Details of the arm insertion stages For the SSW7000C, the power arms are lighter and are fixed at the panel rear by means of screws, as shown figure 5.18. Figure 5.18 SSW7000C Power arms installation. SSW7000 | 5-16...

  • Page 41: Electrical Installation

    Test Mode (according to the programming manual, section 14.2 - Test Mode). The Test Mode execution is essential for the confirmation of the correct operation of the SSW7000 panel main components. Start the motor only if the Test Mode results were satisfactory.
  • Page 42 The number of firing cables changes according to the power arm rated voltage. All the power arm firing connections are interchangeable amongst themselves. Temperature Firing Figure 5.20: Firing and temperature Reading fiber optic cable connections – SSW7000 Temperature Temperature Firing...
  • Page 43 2 (V2), always connect the three transformer sets in series, in version 3 (V3), always connect the transformers in parallel. Figure 5.22: Insulated supply connections between the CSM2 board and the power arms of the model 2300 V (V2). SSW7000 | 5-19...
  • Page 44 Figure 5.23: Insulated supply connections between the CSM2 board and the power arms of the model 4160 V (V2). Figure 5.24: Insulated supply connections between the CSM2 board and the power arms of the model 6900 V (V2). SSW7000 | 5-20...
  • Page 45 Figure 5.25: Insulated supply connections between the CSM3 board and the power arms of the model 6900 V (V3). Figure 5.26: Insulated supply connections between the CSM3 board and the power arms of the model 13800 V (V3). SSW7000 | 5-21...
  • Page 46 A3 – Power supply cable X1:3 A4 – Power supply cable X1:4 Figure 5.27 (a) a (c): Details of the cable installation on the power arms SSW7000A Figure 5.27 (d): Details of the cable installation on the power arms SSW7000D SSW7000 | 5-22...

  • Page 47: Ssw7000 Simplified Block Diagram

    Installation and Connection 5.2.2. SSW7000 Simplified Block Diagram Figure 5.28: SSW7000 simplified block diagram SSW7000 | 5-23...

  • Page 48: Location Of The Power And Grounding Connections

    Figure 5.29 (a): Rear panel view. Power input and grounding connections –SSW7000A - IP41 Power Input Grounding Figure 5.29 (b): Power input and grounding connections – SSW7000C - Nema 12 Power Grounding Input Figure 5.29 (c): Power input and grounding connections – SSW7000D – IP41 SSW7000 | 5-24...
  • Page 49 U / 2T1, V / 4T2, W / 6T3: motor connection. Figure 5.30 (a): Rear panel view. Motor connections – IP41 Motor connections Figure 5.30 (b):Front panel view. Motor connections – SSW7000C Motor connections Figure 5.30 (c): Front panel view. Motor connections – SSW7000D IP41 SSW7000 | 5-25...

  • Page 50: Recommended Power And Grounding Cables

    Figure 5.31: Cable shield connection 5.2.4. Recommended Power and Grounding Cables The cables that connect the medium voltage line to the SSW7000 panel input disconnect switch and those that connect the medium voltage to the panel output, showed in the figure 5.32, must be specific for medium voltage...

  • Page 51: Fuses

    In the panel Nema 12 the disconnect switch is installed in the medium voltage upper compartment and the R- type fuses are in the medium voltage lower compartment beside the line and bypass contactors. table 5.21 presents the fuses used in the standard SSW7000. They comply with the standard operational SSW7000 capacity. Table 5.21: Recommended fuses...

  • Page 52: Connection Of The Power Supply To The Ssw7000

    5.2.7. Power Supply Short Circuit Rating When protected by the fuses supplied in the panel, the SSW7000 is suitable to be used in a circuit able to supply at most the current (Symmetric arms) established for each respective model and voltage (V) according to table 5.23.

  • Page 53: Grounding Connection

    ATTENTION! In order that the protections based on the current reading and indication (motor overload for example) operate properly, the motor rated current must not be less than 20% of the SSW7000 rated current. We do not recommend the use of motors that operate in steady state with load of less than 50% of their rated current.

  • Page 54: User Signal And Control Connections

    Maximum voltage: 240 Vcac Maximum current: 1 A Digital output 2 DO2 Bypass NF – Normally closed contact C - Common Digital output 3 DO3 NA – Normally open contact Fault Figure 5.34: XC1 terminal strip description SSW7000 | 5-30...
  • Page 55 Directions for signal and control wiring:  The SSW7000 digital inputs allow several types of electrical connection. They can be activated by the internal auxiliary +24 Vdc supply using as the common point the DGND* or the +24 Vdc. They can also be activated...
  • Page 56 AC power supply, and freewheeling diodes in case of DC power supply.  When the HMI is installed outside the SSW7000 cabinet, its cable must be laid separately from the other installation cables, distant at least 100 mm (3.94 in) from those cables.
  • Page 57 Motor starting control through digital inputs:  The SSW7000 presents 5 command sources: HMI, digital inputs, serial communication, fieldbus communication and SoftPLC. The command source is selected through the parameters P0220, P0228, P0229 and P0230. For more details, refer to the section 10.1 - Local/Remote Configuration, in the programming manual.

  • Page 58: Auxiliary Low Voltage Supply Connection

    Power arm fans (if used). NOTE! The auxiliary low voltage power supply value must match the electronics supply value specified in the product code. Refer to the section 3.3 - How to Specify the SSW7000 Model (Smart Code). SSW7000 | 5-34...

  • Page 59: Internal Connections

    6.1. SSW7000 ELECTRONIC BOARDS The SSW7000 is supplied with the versions of electronic boards 2 (V2) and 3 (V3). The both versions use the same source board (FSMT), but with different firmware. The version 3 was developed to attend the electrical isolation class required for the SSW7000 of 13.8kV.

  • Page 60: Csm Board Connections

    Internal Connections NOTE! The SSW7000 CC11 hardware is identical to that of the CFW-11 CC11. However, the firmware version and the PLD code are different. Because of the different PLD code, it is not possible to transform a CFW-11 board into an SSW7000 one by simply updating the firmware. Only the CC11xy.Sz boards are adequate for the SSW7000.

  • Page 61: Csmga Board Connections

    6.1.3. CSMGA Board Connections Table 6.5: Description of the CSMGA board connections Terminal Strip Description Communication with the CSM3 board N1 to N12 R-U arm firing N13 to N24 S-V arm SCR firing N25 to N36 T-W arm SCR firing SSW7000 | 6-3...

  • Page 62: Fsmt Board Connections

    Shield ground - PE NOTE! The timer delay must be set for 0.2 seconds. Connection diagram of the digital outputs with defined functions to control contactors with AC coil and auxiliary closing coil. Figure 6.2: FSMT AC contactor wiring diagram. SSW7000 | 6-4...

  • Page 63: Power Arm Internal Connections

    SCR cathode Supply CT Firing fiber optic cable SCR anode SCR cathode GD2SM: Table 6.11: GD2SM board connections Conector Description XC1:1 SCR gate XC1:3 SCR cathode Supply CT Firing fiber optic cable SCR anode SCR cathode Snubber connection SSW7000 | 6-5...
  • Page 64 Internal Connections The location of the GD1SM, GD2SM, (SSW7000A) and GDSMC, GDSMC2 (SSW7000C) boards in the power arm is showed in the figure 6.3 figure 6.4. Figure 6.3: GD1SM, GD2SM (SSW7000) and GDSMC (SSW7000C) firing boards. GDSMC2.02 board GDSMC2.00 board GDSMC2.03...

  • Page 65: Connections Between The Csm Board And The Tf Transformer

    Figure 6.5: Connection of the transformer to the CSM board (Version 2) CSM3 Board Figure 6.6: Connection of the transformer to the CSM3 board (Version 3)  Transformer TF2 (version 2), supplied at 90Vac, 800Hz.  Transformer TF3 (version 3), supplied at 66Vac, 400Hz. SSW7000 | 6-7...

  • Page 66: Connections Between The Low Voltage And The Medium Voltage Controls

    Use a two wire shielded cable with 0.5 mm2 cross section, 300 V insulation and the shield connected to the ground at the FSMT cable end, in order to make the connection between the FSMT.00/FSMT.01 and the TF2/TF3. SSW7000 | 6-8...

  • Page 67: First Energization

    The SSW7000 has a test mode that allows verifying if the cables of the panel are properly connected. The test mode commands the selected signals and does not allow starting the motor.

  • Page 68: Test Without Three-Phase Voltage

    Connection. Verify the energization success through the SSW7000 HMI. 6. Read the programming manual chapters 6 - About the SSW7000 Soft-Starter, 7 - HMI and 8 - Programming Basic Instructions, and then perform the recommended programming. 7. Program the motor parameters, P0400 to P0405 according to its nameplate data.

  • Page 69: Test With Low Voltage

    1. Change the CSM board voltage measurement cables to the 500 V position. Refer to the item 6.1.2 - CSM Board Connections. 2. Connect the SSW7000 input to a supply line of up to 500 Vac, according to the section 5.2 - Electrical Installation. 3. Connect the motor to the SSW7000 output, according to the section 5.2 - Electrical...

  • Page 70: Commissioning

    Through the SuperDrive G2 graphic monitoring. Check out information about the SuperDrive G2 at WEG website (www.weg.net). 6. By means of the monitoring, it is possible to set a better programming of the SSW7000 to be applied in the next starts at full operation duty...

  • Page 71: Connection To A Pc

    USBC-AM-MB-B-B-S-3 (3 meter [9.84 ft]). To control the SSW7000, and to visualize or program its parameters through a personal computer (PC), it is necessary to install the SuperDrive G2 in the PC. The SuperDrive G2 can be downloaded from the website www.weg.net.
  • Page 72 First Energization SSW7000 | 7-6...
  • Page 73 Accessories are incorporated to the SSW7000 in a simple and fast manner, using the plug and play concept. When an accessory is fitted into the slot, the control circuit identifies its model and presents the installed accessory code in P0027 or P0028. Accessories must be installed and removed with the control circuit of the SSW7000 de- energized.

  • Page 74: Accessories

    Accessories SSW7000 | 8-2...

  • Page 75: Technical Specifications

    (50 to 60Hz): (±10%) or (45 a 66Hz) Capacity Number maximum of starts 5 starts in 2 hours (one start every 30 minutes) Starting cycle – SSW7000 AC-53a: 4.5-30:50–2 Starting cycle – SSW7000C AC-53a: 4.0-20:50–2 Thyristors Medium voltage SCRs per power arm...
  • Page 76 3500 For bigger motor power, please contact WEG. The SSW7000 standard is designed to withstand a 4,5xIn overload duty for 30s, the SSW7000C standard is designed to withstand a 4xIn overload duty for 20s. In order to select the SSW7000 model according to the desired overload duty, see table 9.4...
  • Page 77 Technical Specifications SSW7000A – 360A Table 9.6: Maximum time per start for the SSW7000A – 360A SSW7000 - 360A Starts per Hour ( Initial Temperature 40°C ) Current limitation 150% ( 540A ) 60s 60s 60s 60s 60s 60s 60s 60s 60s 60s...
  • Page 78 450% ( 1125A ) 60s 46s 31s 23s 18s 15s 13s 11s 10s 500% ( 1250A ) 60s 33s 22s 17s 13s 11s 10s 550% ( 1375A ) 48s 24s 16s 12s 10s 600% ( 1500A ) 32s 16s 11s SSW7000 | 9-4...
  • Page 79 60s 51s 34s 26s 21s 17s 15s 13s 11s 10s 500% ( 1800A ) 60s 42s 28s 21s 17s 14s 12s 11s 550% ( 1980A ) 60s 35s 23s 17s 14s 12s 10s 600% ( 2160A ) 57s 29s 19s 14s 11s 10s SSW7000 | 9-5...

  • Page 80: Control Data

    - 100 to 230 Vac (-15 % ( 85 Vac ) to 10 % ( 253 Vac ) ) or 110 to 320 Vdc *Note: The values informed are specific for the Control Units; they do not cover other components of the SSW7000, such as contactor coils. Frequency „...

  • Page 81: Troubleshooting And Maintenance

    The motor overload integrator status. The status of the enabled time (P0043) and powered time (P0042) counters. In order to be able to operate the SSW7000 again after a fault trip, reset in one of the following manners:  Pressing the HMI key (manual reset).

  • Page 82: Most Frequent Problems

    Causes Fault HMI indication: “FXXX” The SSW7000 does The SSW7000 does not allow motor starting during a fault situation. Verify what fault it is. not respond to the Refer to the programming manual, chapter 2 - Faults and Alarms commands Time interval IHMI indication: “TmpP831”...

  • Page 83: Faults On The Fsmt Board

    However, it is continuous, with medium level and with no jerks. During JOG The SSW7000 JOG function applies a low frequency to the motor, which produces high and pulsing noises at the motor, according to the JOG level.

  • Page 84: Preventive Maintenance

    10.4. PREVENTIVE MAINTENANCE DANGER! Always disconnect the input power before touching any electrical component associated to the SSW7000. Follow the disconnection sequence described in this manual, item 10.4.1 - SSW7000 Disconnection Sequence. High voltages may be present even after disconnecting the power supply.

  • Page 85: Ssw7000 Disconnection Sequence

    7. During the entire procedure, messages will be displayed on the HMI screen, informing the sequence of commands executed by the function. DANGER! The whole procedure must be carried out with the SSW7000 panel door closed. NOTE! The safe disconnection procedure is for the connections of the circuits on the output of the isolating switch only.

  • Page 86: Direct Online Start - Dol

    It is recommended that the maximum voltage drop at the start be limited to 20% of the rated supply voltage.  Programming of protection relays present in the installation that feeds the SSW7000.  The cycle of direct online starts to be performed must be compatible with the specified motor start capacity.
