PSP-Nx-v4 Connectivity Guide
Trouble Shooting PSP-Nx-v4 and Joystick Connectivity
This procedure assumes DreamGEAR MagnaForce Joystick. If you have a
different joystick, the details may vary.
Before you begin this procedure, ensure that you have downloaded and
reviewed the User Guide from following location:
http://mindsensors.com/pdfs/PSP-Nx-v4-User-Guide.pdf

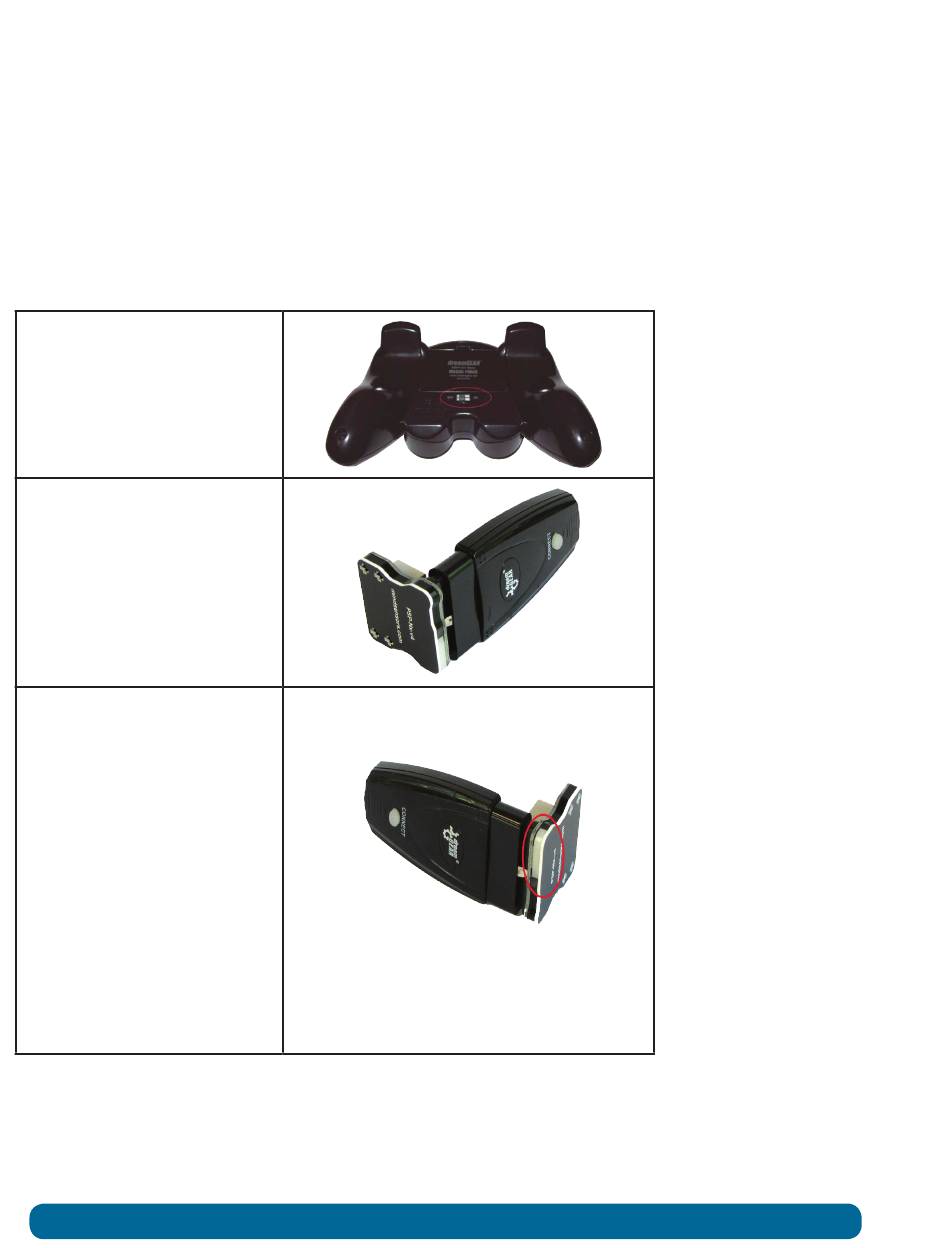

Ensure that you have inserted
batteries in the Joystick. And
the power switch on your
joystick is in ON position.
Adjacent picture will show
you the location of the power
switch.
Adjacent picture shows
how to connect PSP-Nx-v4
to the receiver. Ensure that
the receiver is engaged in
correct orientation, and is
fully inserted in the PSP-Nx-v4
socket.
PSP-Nx-v4 light
Connect PSP-Nx-v4 to NXT
and connect the Receiver to
PSP-Nx. Power on the NXT/EV3
(do not run any program yet).
A blinking Blue light on PSP-
Nx means, the receiver is not
connected properly to PSP-Nx.
If the receiver is connected
properly to PSP-Nx, and NXT/
EV3 is powered ON (without
running any program), PSP-Nx
will have no lights. Adjacent
picture shows location of the
light on PSP-Nx-v4.
