Kia CARNIVAL Owner's Manual page 410

Maintenance

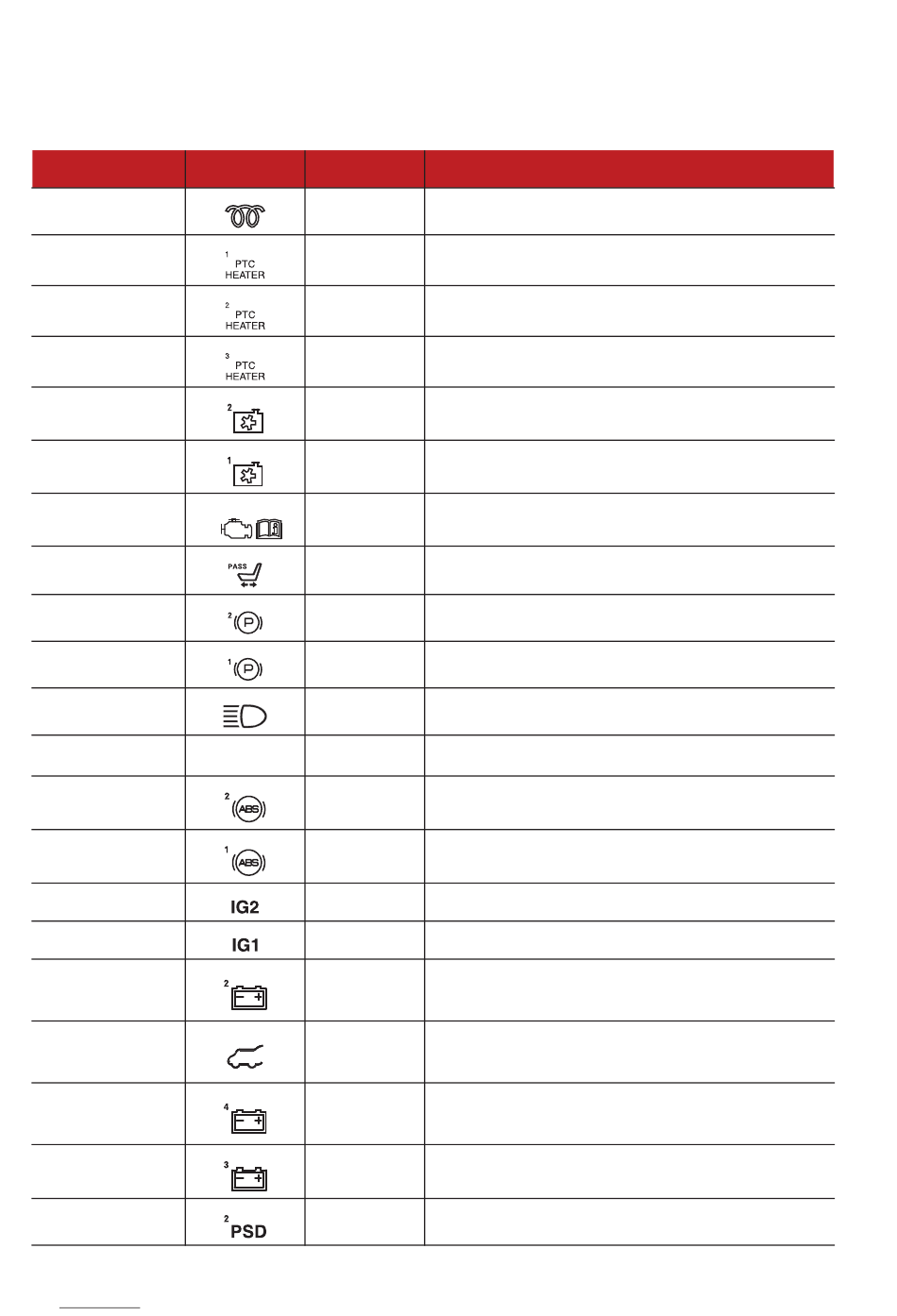

Engine compartment fuse panel
Description
GLOW
PTC HEATER 1
PTC HEATER 2
PTC HEATER 3
C/FAN 2
C/FAN 1
TCU 2
P/SEAT PASS
EPB 2
EPB 1
H/LAMP HI
INVERTER
ABS 2
ABS 1
IG2
IG1
B+ 2
POWER TAIL
GATE
B+ 4
B+ 3
PSD 2
7 56
Symbol Fuse rating
80 A
50 A
50 A
50 A
30 A
60 A
T2 15 A
30 A
15 A
15 A
10 A
30 A
INVERTER
40 A
40 A
40 A
40 A
50 A
40 A
50 A
50 A
40 A
Protected Component
D4HB: Glow Relay Unit
E/R Junction Block (RLY.8)
E/R Junction Block (RLY.9)
E/R Junction Block (RLY.10)
E/R Junction Block (RLY.6)
E/R Junction Block (RLY.5)
TCM
Passenger Manual Switch
EPB Unit
EPB Unit
Head Lamp High Solenoid
-
ABS Control Module/ESC Control Module
ABS Control Module/ESC Control Module
E/R Junction Block (RLY.1, RLY.2)/ Ignition Switch
E/R Junction Block (RLY.3, RLY.4), Ignition Switch
Smart Junction Block (Fuse - F42, F43, Leak Cur -
rent Autocut Device Fuse - F10, F16, F21, F26)
Power Tail Gate Module
Smart Junction Block (IPS3, IPS4, IPS5, IPS6, Fuse
- F30, F40)
Smart Junction Block (IPS1, IPS2)
Power Sliding Door Module
Fuses
