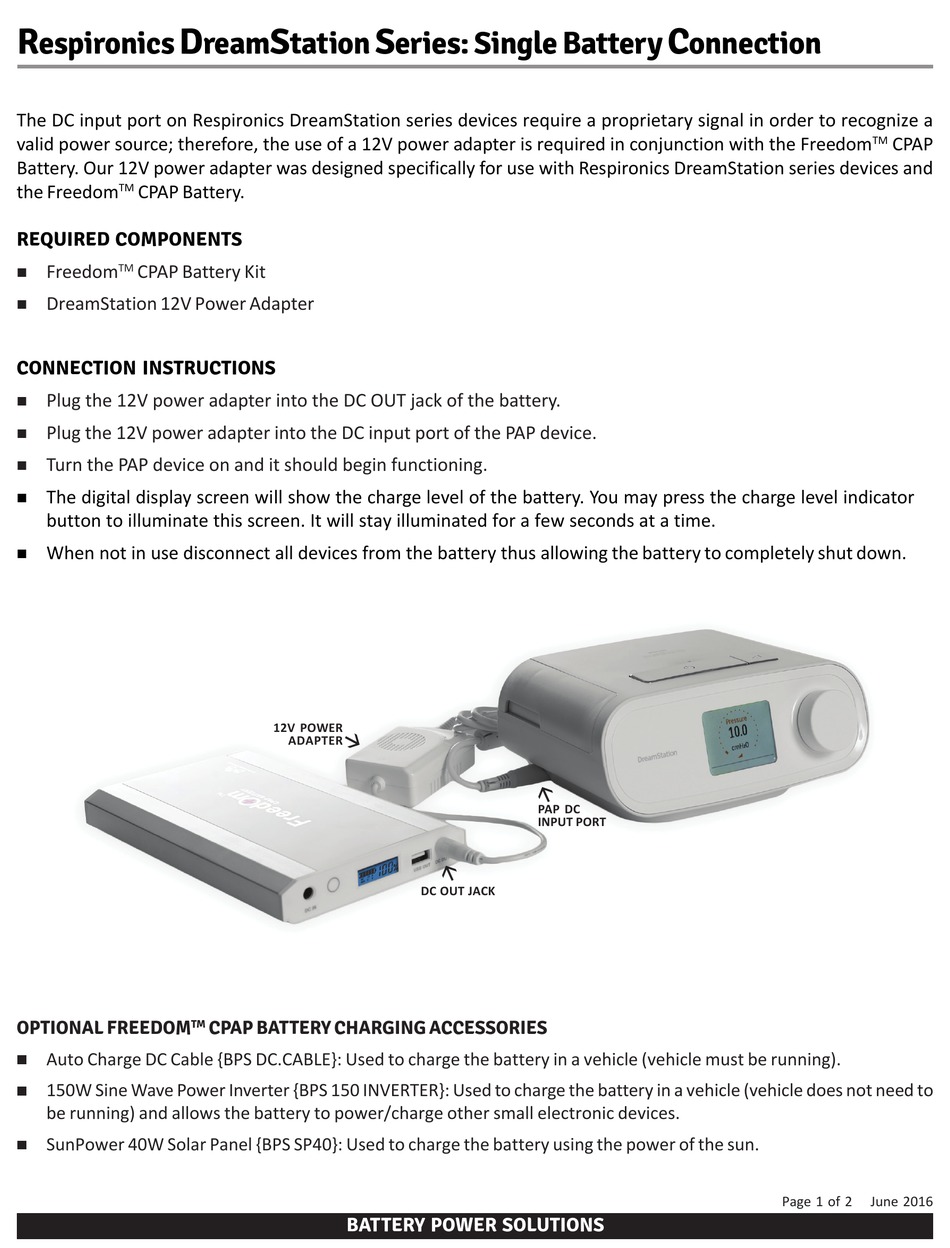

Respironics DreamStation Series Manual

R D
espironics
The DC input port on Respironics DreamStation series devices require a proprietary signal in order to recognize a
valid power source; therefore, the use of a 12V power adapter is required in conjunction with the Freedom
Battery. Our 12V power adapter was designed specifically for use with Respironics DreamStation series devices and
TM
the Freedom CPAP Battery.
REQUIRED COMPONENTS
Freedom TM CPAP Battery Kit

DreamStation 12V Power Adapter


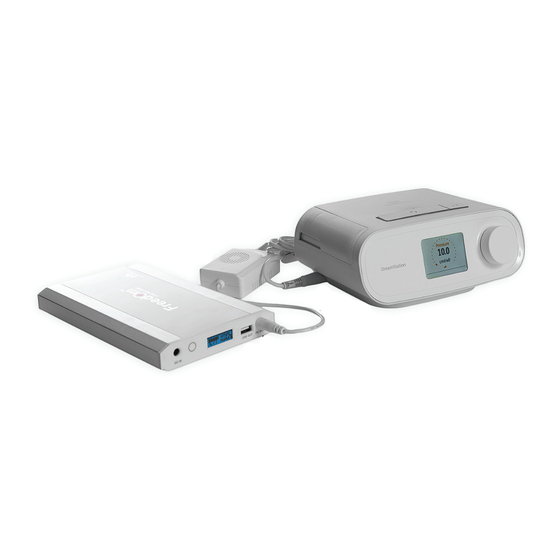

CONNECTION INSTRUCTIONS
Plug the 12V power adapter into the DC OUT jack of the battery.

Plug the 12V power adapter into the DC input port of the PAP device.

Turn the PAP device on and it should begin functioning.

The digital display screen will show the charge level of the battery. You may press the charge level indicator

button to illuminate this screen. It will stay illuminated for a few seconds at a time.
When not in use disconnect all devices from the battery thus allowing the battery to completely shut down.

OPTIONAL FREEDOM TM
Auto Charge DC Cable {BPS DC.CABLE}: Used to charge the battery in a vehicle (vehicle must be running).
    
150W Sine Wave Power Inverter {BPS 150 INVERTER}: Used to charge the battery in a vehicle (vehicle does not need to
    
be running) and allows the battery to power/charge other small electronic devices.
SunPower 40W Solar Panel {BPS SP40}: Used to charge the battery using the power of the sun.
    
S S
ream tation
12V POWER
ADAPTER
CPAP BATTERY CHARGING ACCESSORIES
BATTERY POWER SOLUTIONS
eries: Single Battery
PAP DC
INPUT PORT
DC OUT JACK
C
onnection
Page 1 of 2
TM CPAP
June 2016
