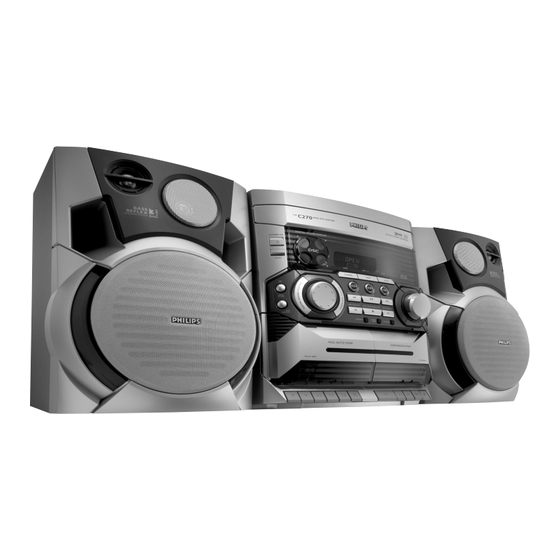

Philips mini hi-fi system fwc270

Advertisement

C270
C270
Mini Hi-Fi System
FW
FW
1

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the FWC270/19 and is the answer not in the manual?

Questions and answers

Summary of Contents for Philips FWC270/19

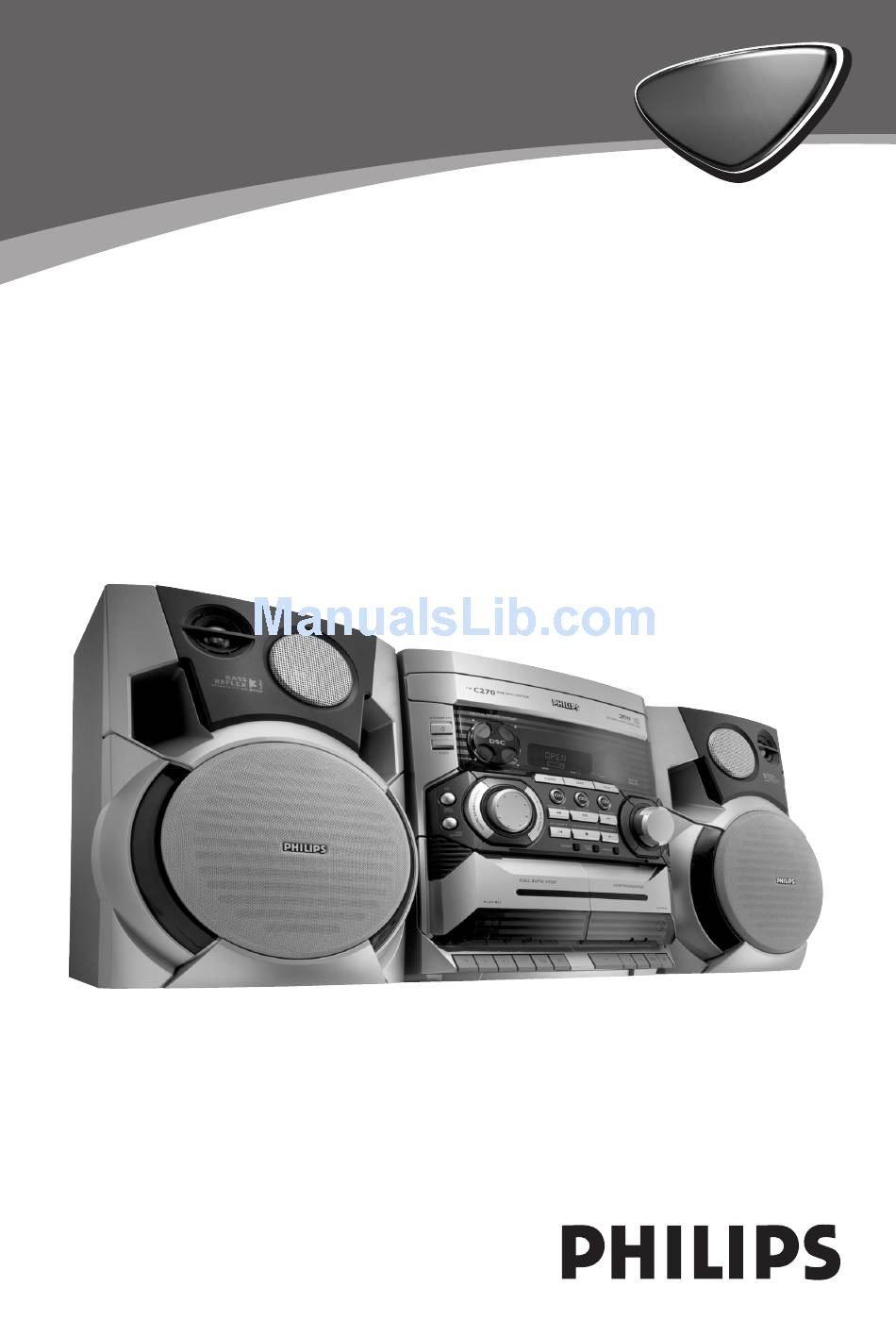

  • Page 1 C270 C270 Mini Hi-Fi System...
  • Page 2: Aviso Importante

    LEA CUIDADOSAMENTE ESTE INSTRUCTIVO ANTES DE USAR SU APARATO. AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
  • Page 3 DIGITAL SOUND DISPLAY STANDBY-ON SLEEP CD 1/2/3 TUNER TAPE 1/2 AUX/CDR REPEAT SHUFFLE SLEEP ¡ ™ ë í É Ç Å á á MUTE MUTE NEWS/TA BAND TAPE 1 • 2 VIDEO TUNER TAPE SEARCH •TUNING PLAY• PAUSE SEARCH •TUNING PREV/ PRESET STOP•CLEAR / DEMO STOP...
  • Page 4 (for tuner installation)
  • Page 5 Index English ------------------------------------------------ 6 Français -------------------------------------------- 29 Español --------------------------------------------- 53 -------------------------------------------------------- 77...
  • Page 6: Table Of Contents

    Contents General Information Supplied accessories ... 7 Environmental information ... 7 Safety information ... 7 Preparations Rear connections ... 8–9 Power Antennas connection Speakers connection Optional connection ... 9 Connecting other equipment to your system Inserting batteries into the remote control ...
  • Page 7: Power

    IMPORTANT! PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE REAR OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY. FOR COUNTRIES THAT OPERATE AT 110V-127V, PLEASE ADJUST TO 110V-127V BEFORE YOU SWITCH ON THE SYSTEM. Supplied accessories – 2 speaker boxes –...
  • Page 8: Preparations

    Preparations AM loop antenna speaker (right) Rear connections The type plate is located at the rear of the system. Power Before connecting the AC power cord to the wall outlet, ensure that the following are done; – If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to the local power line voltage.
  • Page 9: Speakers Connection

    FM Antenna G For better FM stereo reception, connect an outdoor FM antenna to the FM ANTENNA terminal. Speakers Connection Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "-".
  • Page 10: Controls On The System And Remote Control

    Controls (illustrations on page 3) Controls on the system and remote control STANDBY ON B – to switch the system on or to standby mode. SLEEP – to activate/deactivate or set the sleep timer. DIGITAL SOUND DISPLAY – the active DSC will be lighted. TUNER (BAND) –...
  • Page 11 Mode Selection PLAY•PAUSE É Å for CD ... to start or interrupt playback. for Plug & Play…(on the system only) to initiate and start plug & play mode. SEARCH•TUNING à á for CD ... to search backward/forward. for Tuner ... to tune to a lower or higher radio frequency.
  • Page 12: Basic Functions

    Basic Functions DIGITAL SOUND DISPLAY STANDBY-ON SLEEP BAND TUNER SEARCH •TUNING PREV/ IMPORTANT! Before you operate the system, complete the preparation procedures. Plug and Play (for tuner installlation) Plug and Play allows you to store all available radio stations automatically. First time setup/power up When you turn on the main supply, "AUTO INSTALL - PRESS PLAY"...
  • Page 13: Demonstration Mode

    Demonstration mode The system has a demonstration mode that shows the various features offered by the system. To activate the demonstration G In standby mode, press and holdÇon the system until "WELCOME" is displayed. ➜ The demonstration will begin. To deactivate the demonstration G Press and holdÇon the system until "DEMO OFF"...
  • Page 14: Sound Control

    Basic Functions Sound control Digital Sound Control (DSC) The DSC feature enables you to enjoy special sound effects that have preset equaliser settings, providing the best music reproduction. Press DSC. ➜ The selected DSC is shown. Adjust the jog control (or press DSC on the remote control repeatedly) to select : JAZZ, ROCK, TECHNO or OPTIMAL.
  • Page 15: Cd Operation

    DIGITAL SOUND DISPLAY STANDBY-ON SLEEP BAND TUNER SEARCH •TUNING PREV/ PRESET PROGRAM IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the changer mechanism.
  • Page 16: Playing Discs

    CD Operation Playing discs a disc is loaded in the disc tray the current selected disc tray is empty the current selected disc tray is loaded or playing To play all discs on the disc tray G PressÉ Å . ➜...
  • Page 17: Programming The Disc Tracks

    Notes: – During programme play or shuffling mode, it is not possible to repeat playback the current disc (Repeat Disc mode). – Pressing the OPEN/CLOSE button will cancel all repeat and shuffling modes. Programming the disc tracks Programming tracks is possible when playback is stopped.
  • Page 18: Radio Reception

    Radio Reception DIGITAL SOUND DISPLAY STANDBY-ON SLEEP BAND TUNER SEARCH •TUNING PREV/ Tuning to radio stations Press TUNER to select TUNER mode. ➜ "TUNER" is displayed. A few seconds later, the current radio frequency will appear on the display. ➜ If an FM station is received in stereo, displayed.
  • Page 19: Manual Preset Programming

    Manual Preset Programming Tune to your desired radio station (refer to “Tuning to radio stations”). Press PROGRAM. ➜ starts flashing. PROG ➜ The next available preset number is displayed for selection. To store the radio station to another preset number G Press í...
  • Page 20: Tape Operation/Recording

    Tape Operation / Recording DIGITAL SOUND DISPLAY STANDBY-ON SLEEP TUNER SEARCH •TUNING PREV/ IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – C-120 tape is extremely thin and is easily deformed or damaged.
  • Page 21: Playing Tapes

    Playing tapes To playback a selected tape deck G PressÉ on tape deck 1 or 2. ➜ The tape will stop at the end of playback. Continuous playback of two tapes Load the tapes in tape deck 1 and 2. PressÉ...
  • Page 22: Preparation For Recording

    Tape Operation / Recording Preparation for recording Load a recordable tape into tape deck 1 with full spool to the left. Prepare the source to be recorded. CD 1/2/3 – load the disc(s). TUNER – tune to the desired radio station. TAPE –...
  • Page 23: External Sources

    Listening to external sources Connect the audio out terminals of the external equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX/CDR IN terminals of your system. Press AUX (VIDEO) (or AUX/CDR on the remote control) to select external equipment. ➜...
  • Page 24: Clock/Timer

    Clock/Timer DIGITAL SOUND DISPLAY STANDBY-ON SLEEP BAND TUNER SEARCH •TUNING PREV/ View clock The clock (if it is set) will be shown in standby mode. To view the clock in any source mode (CD or TUNER for example) G Press CLOCK/TIMER. ➜...
  • Page 25: Deactivating The Timer

    Press CD 1/2/3, TUNER or PROGRAM to select the desired source. ➜ “CD1 [or 2, 3] XX:XX" indicates the CD mode is selected. ➜ “TU XX:XX” indicates the Tuner mode is selected. ➜ “PROG XX:XX" indicates the CD programme mode is selected. G Before setting timer, make sure the music source has been prepared.
  • Page 26: Specifications

    Specifications AMPLIFIER Output power ... 1500 W PMPO ... 2 x 37W RMS Signal-to-noise ratio ... ≥ 67 dBA (IEC) Frequency response ... 50 – 15000 Hz Input sensitivity AUX/CDR In ... 500 mV / 1V Microphone ... 3.5 mV Output Speakers ...
  • Page 27: Maintenance

    Cleaning the disc lens G After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.
  • Page 28: Troubleshooting

    Troubleshooting RADIO RECEPTION Radio reception is poor. TAPE OPERATION/RECORDING Recording or playback cannot be made. GENERAL The system does not react when buttons are pressed. Sound cannot be heard or is of poor quality. The left and right sound outputs are reversed.
  • Page 29 This Manufacturers Warranty is limited to 3 months for above listed Consumer Electronics products if used in commercial applications. Philips may, at its discretion choose to replace rather than repair any product covered by this warranty. This Manufacturers Warranty is neither transferable nor valid in countries other than Australia.
  • Page 30: How To Claim

    12 months prior to the date of your claim. 5. In the event of a failure, Philips shall be under no liability for any injury, or any loss or damage caused to property or products other than the product under guarantee.
  • Page 31: Poliza De Garantia

    PHILIPS MEXICANA S.A. de C.V. a través de sus centros de servicio autorizados reparará y devolverá a usted su aparato en un plazo no mayor a 20 días hábiles, contados a partir de la fecha de ingreso, impresa en la orden de servicio de cualquiera de nuestros centros de servicio autorizados.
  • Page 32: Centros De Servicio

    Producto importado por: Philips Mexicana, S.A. de C.V. Av. La Palma No. 6 Col. San Fernando La Herradura Huixquilucan, Edo. de México C. P. 52784 Tel. 52 69 90 00 Información General Centro de Información al Consumidor Lada 01 800 504 62 00...
