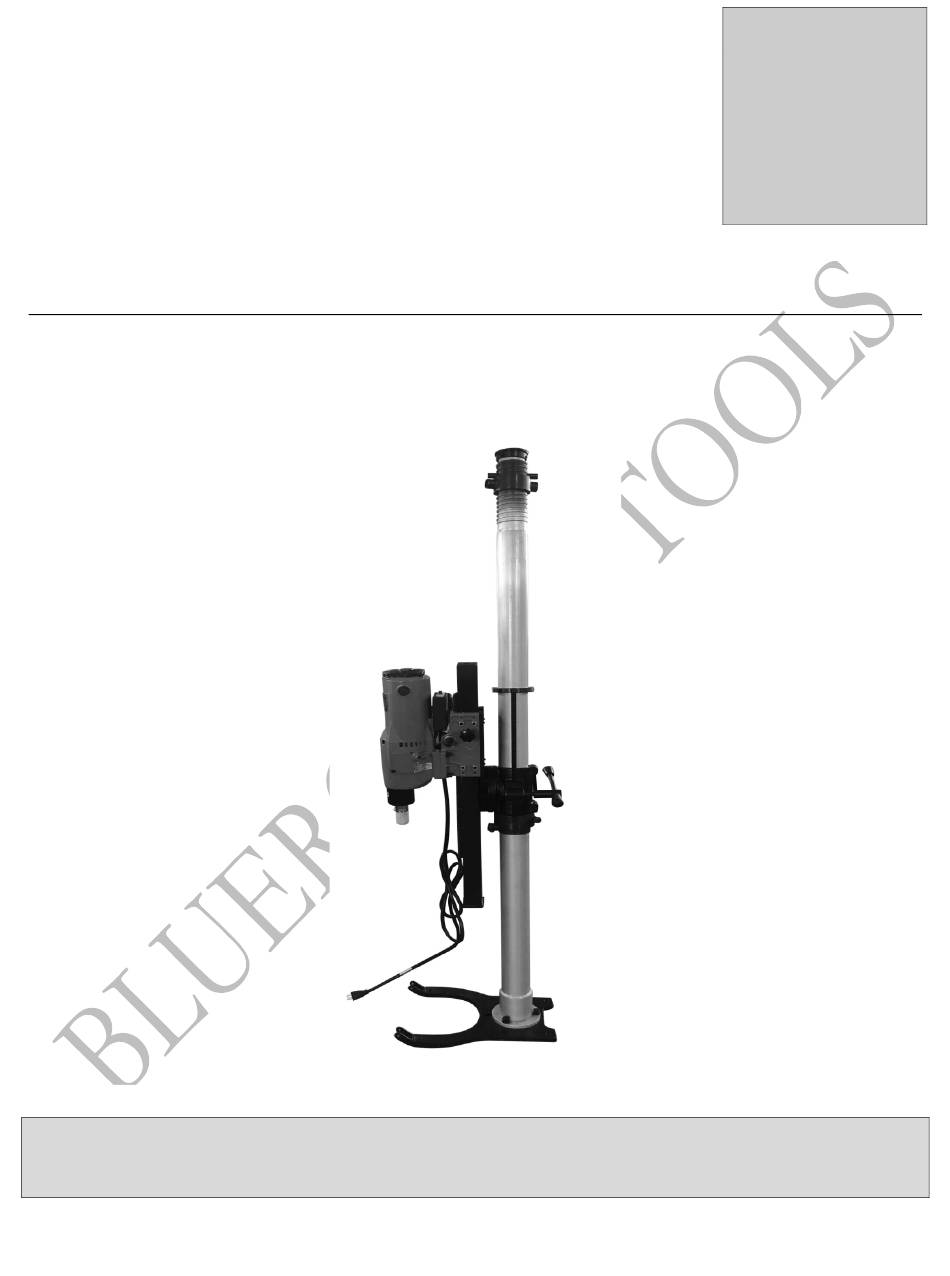

Volume OPERATIONAL MANUAL MODEL: 10”Z1 TEL TELESCOPING CORE DRILLING MACHINE by BLUEROCK ® Tools...
Page 2
1 0 ” Z 1 T E L C O R E D R I L L UNPACKING THE ITEM CAUTION: This machine is packed together with items that may be sharp, oily and overly heavy objects. Remove the machine from the packaging in a safe manner. Check to ensure all accessories are included with the item while unpacking.
1 0 ” Z 1 T E L C O R E D R I L L Table of Contents SAFETY PRE-OPERATIONAL SAFETY CHECKS OPERATIONAL SAFETY CHECKS HEALTH WARNINGS SPECIFICATIONS INCLUDED ACCESSORIES ADDITIONAL AVAILABLE ACCESSORIES BLUEROCK ® T DDITIONAL ACCESSORIES FOR THIS MACHINE CAN BE FOUND IN OOLS ONLINE SHOP AT BLUEROCKTOOLS COM OR FROM YOUR LOCAL RETAILER...
Chapter 1 0 ” Z 1 T E L C O R E D R I L L Safety DO NOT USE THIS MACHINE UNLESS YOU HAVE READ THE OPERATING INSTRUCTIONS! Safety glasses must be worn at all Long and loose hair must be times in work areas.
1 0 ” Z 1 T E L C O R E D R I L L Ø DO allow machine to reach operating speed before starting a hole. Ø DO unplug machine while changing or adjusting cutting bits so as not to accidentally turn machine on. Ø...
Page 6
1 0 ” Z 1 T E L C O R E D R I L L Lead from lead based paint. Crystalline silica from bricks, cement and assorted masonry products. § TO REDUCE RISK OF EXPOSURE TO THESE CHEMICALS, WORK IN A WELL VENTILATED AREA WITH VACUUM SYSTEMS, RESPIRATORS AND WITH ALL SUITABLE SAFETY EQUIPMENT.
1 0 ” Z 1 T E L C O R E D R I L L Chapter Specifications ELECTRICAL DATA Voltage 110V, 50-60Hz, Single Phase Current 21.6 Amps (30A Circuit Use Recommended) Motor Size 2600W Power Connection US Standard 3 Prong Type B Plug MECHANICAL DATA Cutter Range 1”...
1 0 ” Z 1 T E L C O R E D R I L L Stand Base Outer Pipe Stand Piece with 4 Point Carriage Inner Pipe Stand Piece with Top Cap Tightening Metal Pin Locking Pin with D ring and Cotter Pin Note UPON RECEIPT, CHECK CAREFULLY TO ENSURE THAT THE MACHINE IS IN GOOD CONDITION AND HAS ALL ACCESSORIES...
MACHINE! PURPOSE Ø The purpose of the 10”Z1 TEL Core Drill is to drill through masonry, concrete or other mineral rock types using annular coring bits. Ø These drills are designed to be wedged between parallel surfaces using their telescoping base. The machine can then be turned in a variety of directions to enable angled drilling.
Page 10
1 0 ” Z 1 T E L C O R E D R I L L Ø This machine has one primary adjusting point for the travel between the drill carriage and the drill stand. The main way to increase or decrease the user’s ability to move the drill by hand is with this system. These are the black hex bolts on the side and back of the machine that have a locking nut around them.
Page 11
1 0 ” Z 1 T E L C O R E D R I L L Ø If using the inner stand as your mounting surface, you must use the adapter collars that fit inside the main adjusting collars on that four-point connections system. The slots in each are designed to fit the Allen head screws on the four-point connection system.
1 0 ” Z 1 T E L C O R E D R I L L Ø The main machine with it’s own secondary stand is connected to the primary stand using the round slotted backer on the drill body. It is bolted down using two of the short bolts with washers (one on each side). If planning to tilt the drill horizontally to the right, you would attach one bolt/washer on the left in the bottom bolt hole and the bolt/washer on the right side through the top bolt hole as pictured below.
1 0 ” Z 1 T E L C O R E D R I L L Ø DO NOT allow the cord or plug to drag along the floor when transporting. RUNNING THE MACHINE Ø Do all pre-operational and operational safety checks from Chapter 1. Ø...
1 0 ” Z 1 T E L C O R E D R I L L Ø After about 1/8” of cutting has been achieved in the work surface, slightly more force can be applied. This will be the normal amount of force the rest of the hole. NOTE: Do not force the hole.
1 0 ” Z 1 T E L C O R E D R I L L Chapter Troubleshooting Note SERVICING SHOULD ONLY BE DONE BY A QUALIFIED TECHNICIAN. DON’T FORGET TO UNPLUG POWER TO UNIT PRIOR TO SERVICE! PROBLEM SOLUTION Motor does not 1) Check external power source (extension cord, breaker, etc).
1 0 ” Z 1 T E L C O R E D R I L L Chapter General Maintenance Ø Inspect electrical cords and electrical connections. Ø Keep machine clean and free of debris. Ø Check for misalignment, binding and breakage of all moving parts. If damaged, repair tool before use. Ø...
Page 17
1 0 ” Z 1 T E L C O R E D R I L L Make certain the spindle is facing the ground so as not to get oil/grease everywhere. Locate the hex screws holding the gear housing together and remove them.
1 0 ” Z 1 T E L C O R E D R I L L Chapter Motor and Gearbox Parts List Description Description Description Spring ring for holes Friction disk Bead flange Washer Inner spline friction disk Stator Rubber sealing 42x55x8 Disk spring Cover of stator...
1 0 ” Z 1 T E L C O R E D R I L L Parts List – Drilling Stand Part Name Description Part Name Description Round head hollow GB/T873-1986 rivets 6x30 Z1Z-CF-102-3-07 Head screw Z1Z-CF-160S/01- 2"trundle Square tube components Rivet cap GB/T70.1-2000 inner hexagonal bolt M6x10...
