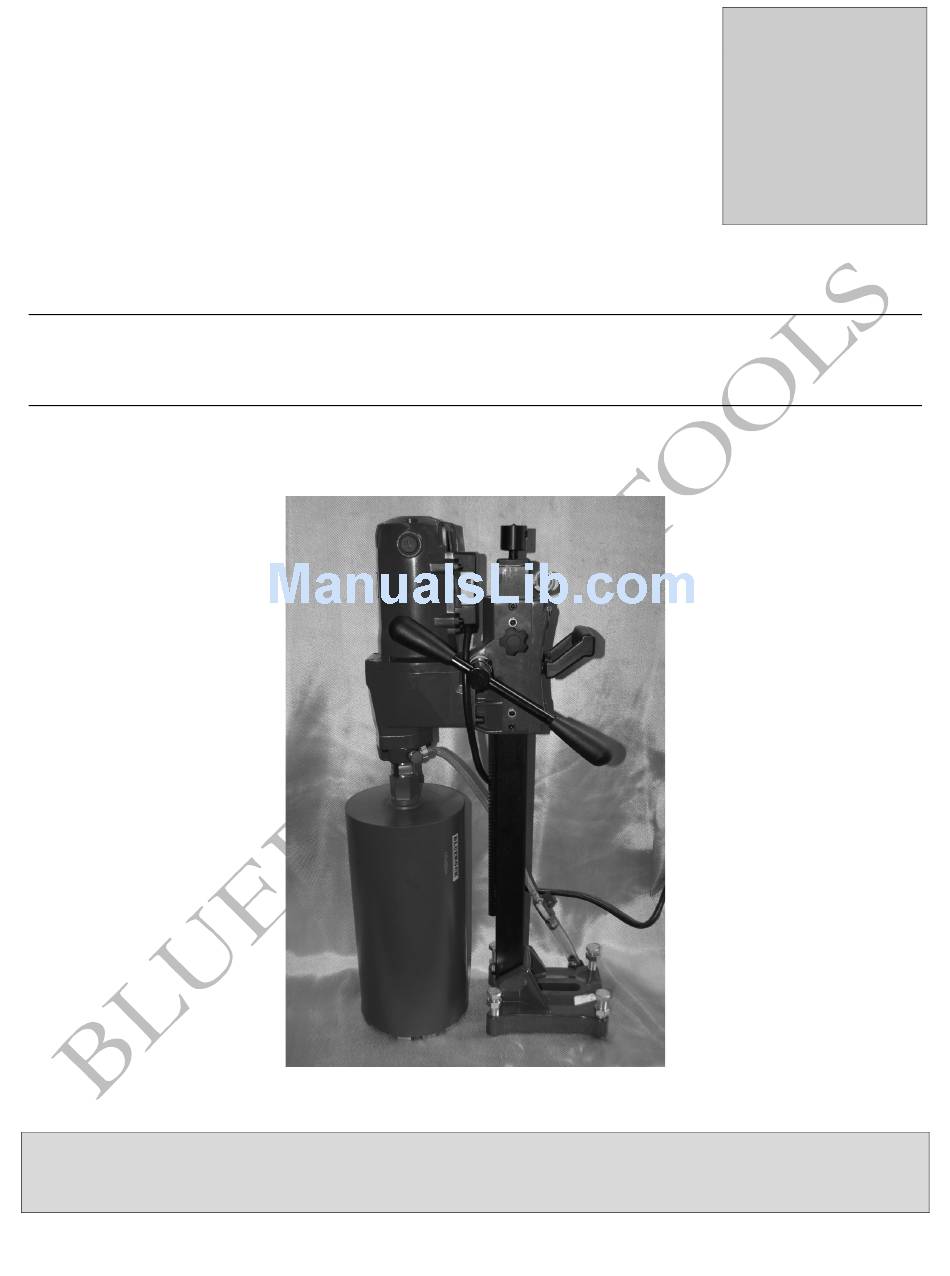

- Page 1 Volume OPERATIONAL MANUAL MODEL: 8”Z1 CORE DRILLING MACHINE by BLUEROCK ® Tools...
- Page 2 8 ” Z 1 C O R E D R I L L UNPACKING THE ITEM CAUTION: This machine is packed together with items that may be sharp, oily and overly heavy objects. Remove the machine from the packaging in a safe manner. Check to ensure all accessories are included with the item while unpacking.
-
Page 3: Table Of Contents
8 ” Z 1 C O R E D R I L L Table of Contents SAFETY PRE-OPERATIONAL SAFETY CHECKS OPERATIONAL SAFETY CHECKS HEALTH WARNINGS SPECIFICATIONS INCLUDED ACCESSORIES ADDITIONAL AVAILABLE ACCESSORIES BLUEROCK ® T DDITIONAL ACCESSORIES FOR THIS MACHINE CAN BE FOUND IN OOLS ONLINE SHOP AT NEWMANTRADINGCOMPANY COM OR FROM YOUR LOCAL RETAILER OPERATIONS... - Page 4 8 ” Z 1 C O R E D R I L L HIS AGE EFT NTENTIONALLY LANK...
-
Page 5: Safety
Chapter 8 ” Z 1 C O R E D R I L L Safety DO NOT USE THIS MACHINE UNLESS YOU HAVE READ THE OPERATING INSTRUCTIONS! Safety glasses must be worn at all Long and loose hair must be times in work areas. - Page 6 8 ” Z 1 C O R E D R I L L Ø DO keep body parts, clothing & power cords clear of turning/cutting pieces. Stay alert and use common since when using this tool. Ø DO allow machine to reach operating speed before starting a hole. Ø...
-
Page 7: Health Warnings
8 ” Z 1 C O R E D R I L L Ø DO NOT use this machine without safely securing to the work piece being drilled. Ø DO NOT use full water pressure when drilling with “wet” type bits! You only need minimal water to drill with these machines. -
Page 8: Specifications
8 ” Z 1 C O R E D R I L L Chapter Specifications ELECTRICAL DATA Voltage 120V, 50-60Hz, Single Phase Current 20 Amps (20A Circuit Use Recommended) Motor Size 2400W Power Connection US Standard 3 Prong Type B Plug MECHANICAL DATA Cutter Range 1”... -
Page 9: Additional Available Accessories
8 ” Z 1 C O R E D R I L L Note UPON RECEIPT, CHECK CAREFULLY TO ENSURE THAT THE MACHINE IS IN GOOD CONDITION AND HAS ALL ACCESSORIES LISTED ABOVE. Additional Available Accessories Additional accessories for this machine can be found in BLUEROCK ® Tools online shop at www.newmantradingcompany.com or from your local retailer. -
Page 10: Operations
8 ” Z 1 C O R E D R I L L Chapter Operations Note THOROUGHLY READ THROUGH THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE! PURPOSE Ø The purpose of the 8”Z1 Core Drill is to drill through masonry, concrete or other mineral rock types using annular coring bits. -
Page 11: Machine Components
8 ” Z 1 C O R E D R I L L MACHINE COMPONENTS Ø The main components of the 8”Z1 are the spindle, gearbox, motor, carriage, drill stand and base. The spindle is driven by the transfer case and the motor. These components must be not be removed except by a qualified technician. -
Page 12: Transporting The Machine
8 ” Z 1 C O R E D R I L L TRANSPORTING THE MACHINE Ø When transporting the machine, always use two hands. Ø DO NOT transport the machine with bits in the spindle. Ø If transporting inside a vehicle, it is recommended to transport it on its side so as to avoid the item falling over. - Page 13 8 ” Z 1 C O R E D R I L L Ø Plug the machine into power source. Form a loose knot in the power cord close to the plug connection to prevent fluid from running down the cord and into the power receptacle. Ø...
-
Page 14: Installing Coring Bits
8 ” Z 1 C O R E D R I L L INSTALLING CORING BITS Ø WARNING: Core bits can be sharp and should only be handled with gloves so as not to cut the user during installation or removal. Ø... -
Page 15: Troubleshooting
8 ” Z 1 C O R E D R I L L Chapter Troubleshooting Note SERVICING SHOULD ONLY BE DONE BY A QUALIFIED TECHNICIAN. DON’T FORGET TO UNPLUG POWER TO UNIT PRIOR TO SERVICE! PROBLEM SOLUTION Motor does not turn on. 1) Check external power source (extension cord, breaker, etc). -
Page 16: General Maintenance
8 ” Z 1 C O R E D R I L L Chapter General Maintenance Ø Inspect electrical cords and electrical connections. Ø Keep machine clean and free of debris. Ø Check for misalignment, binding and breakage of all moving parts. If damaged, repair tool before use. - Page 17 8 ” Z 1 C O R E D R I L L 1) Change if necessary using NLGL-2 grade grease. This service is generally done around the 50 hour service mark. Adjust Safety Clutch: 1) Adjust clutch as necessary. NOTE: A torque wrench is necessary for this service.
-
Page 18: Parts List
8 ” Z 1 C O R E D R I L L Chapter Parts List Symbol Name Symbol Name Symbol Name GB/T987 Sealing ring GB/T57 Hexagonal bolt M12x65 FB42x62x10 Name plate 81-2000 Z1Z- Z1Z-CF- Z1Z-CF- 102-3- 180-18 Water ring housing 205-23 Brush hold Screw... - Page 19 8 ” Z 1 C O R E D R I L L Z1Z- Z1Z - Z1Z-CF- 180-07- CF02- 180-11 Shied ring Track piece(middle) 80/0-60 Washer Z1Z- Z1Z - Z1Z-CF- 180-07- CF02- 180-12 Friction shim Track piece(small) 80/0-63 Connector of water faucet Z1Z- Z1Z - Z1Z-CF-...
-
Page 20: Breakdown View - Overview
8 ” Z 1 C O R E D R I L L Breakdown View - Overview... -
Page 21: Breakdown View - Close-Up Motor
8 ” Z 1 C O R E D R I L L Breakdown View - Close-up Motor... -
Page 22: Breakdown View - Close-Up Top Half Gearbox
8 ” Z 1 C O R E D R I L L Breakdown View - Close-up Top Half Gearbox... -
Page 23: Breakdown View - Close-Up Bottom Half Gearbox
8 ” Z 1 C O R E D R I L L Breakdown View - Close-up Bottom Half Gearbox... -
Page 24: Breakdown View - Close-Up Drill Rig
8 ” Z 1 C O R E D R I L L Breakdown View - Close-up Drill Rig...
