Summary of Contents for CHIEF Kontour KRA234

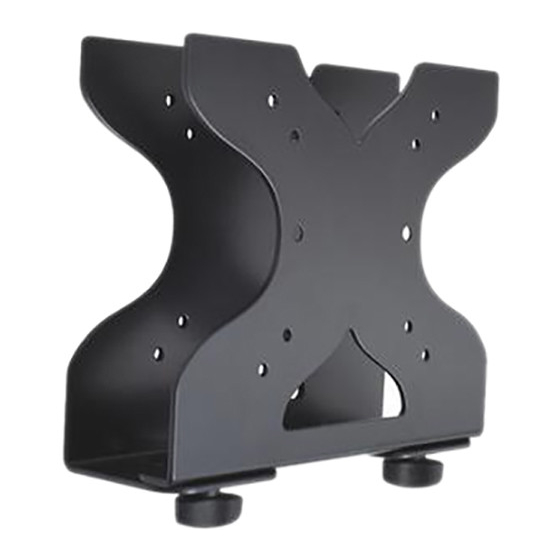

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Kontour™ CPU Mount Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description KRA234...
-
Page 2: Installation Instructions
WARNING: Do not use this product outdoors. no responsibility for accuracy, completeness or sufficiency of the information contained in this document. Chief® is a registered trademark of Milestone AV Technologies. --SAVE THESE INSTRUCTIONS-- All rights reserved. IMPORTANT SAFETY INSTRUCTIONS WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. - Page 3 Installation Instructions KRA234 DIMENSIONS 3.94 100.0 2.17 55.0 6.45 163.8 7.12 180.9 0.18 DIMENSIONS: INCHES [MILLIMETERS] LEGEND By Hand Phillips Screwdriver A mano Destornillador Phillips Von Hand Kreuzschlitzschraubendreher Com a mão Chave de fendas Phillips A mano Cacciavite a stella Met de hand Kruiskopschroevendraaier À...
-
Page 4: Tools Required For Installation
KRA234 Installation Instructions TOOLS REQUIRED FOR INSTALLATION PARTS A (1) [Mount frame] C (6) D (6) [Thin bumper] [Thick bumper] B (2) [Strap] E (4) F (4) G (4) H (4) J (4) M4x30mm M4x20mm M4x12mm 3/8" 3/4" K (4) L (4) M4 x 6mm... -
Page 5: Assembly And Installation
Installation Instructions KRA234 ASSEMBLY AND INSTALLATION Disassemble mount frame (A) by unscrewing two knobs from the carriage bolts that hold the frame together. Set aside all hardware for re-use. (See Figure 1) (display and faceplate hidden for clarity) front frame carriage bolts x 2 back frame (E or F) x 4... -
Page 6: Width Adjustment
KRA234 Installation Instructions Use two removed carriage bolts, two removed lock nuts and (Optional) Use thin and thick bumpers (C and D) as desired to provide extra protection within frame. (See Figure 7) two removed knobs to reconnect front frame to back frame. (See Figure 5) NOTE: Thick bumpers (D) should be used on lower section to... - Page 7 Installation Instructions KRA234 Strap Installation (Optional) NOTE: The straps are provided as an option if additional support is desired for the CPU within the KRA234. Straps may be wrapped around the unit in any direction or location depending on user preference. Wrap straps (B) around mount frame (A) to provide further security.
- Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
