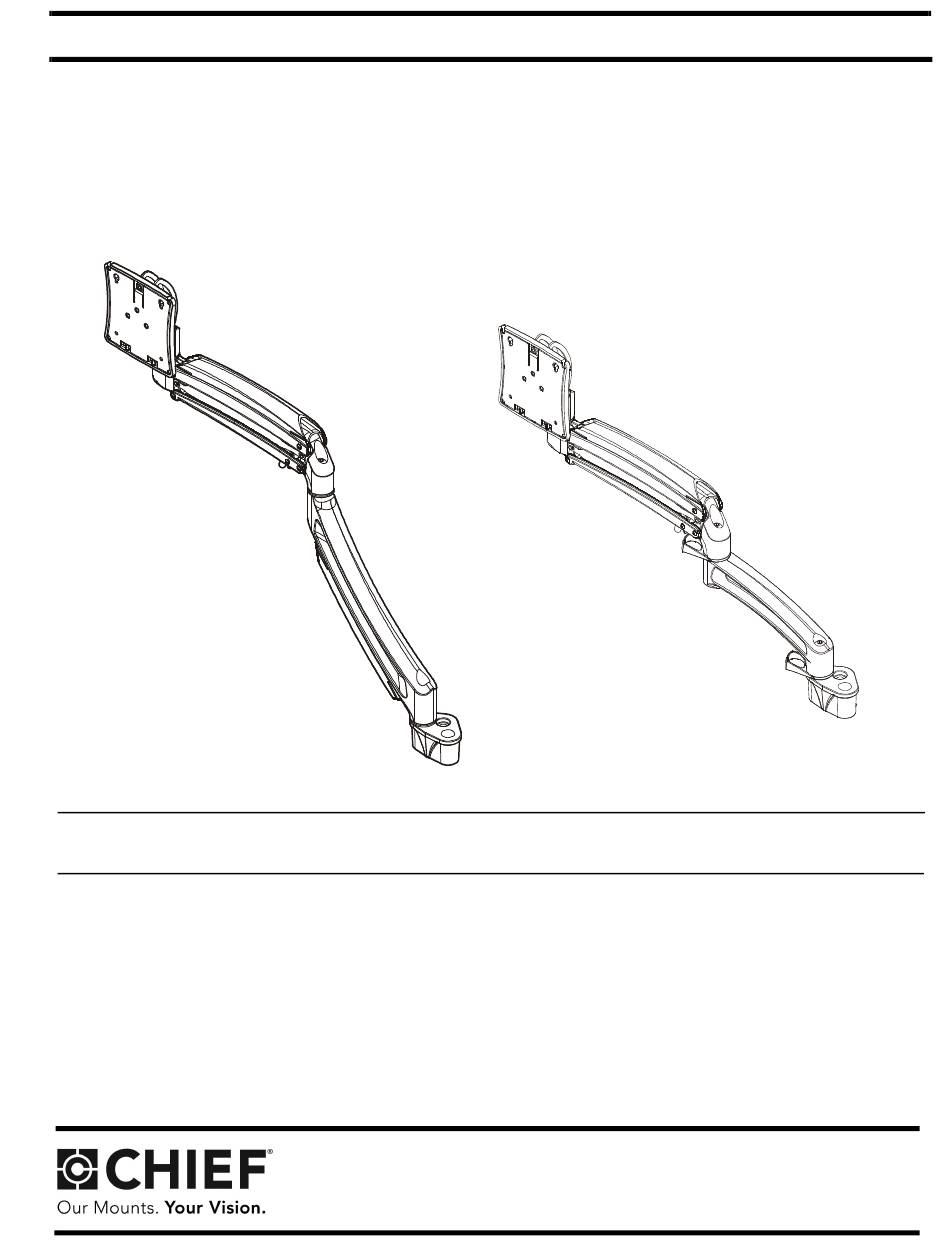

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S KRA227xRH (reduced height) KRA227 (standard) K1D/K1P/K1S/K1W Dual Monitor Accessory Spanish Product Description German Product Description Portuguese Product Description...
-
Page 2: Important Safety Instructions
It is the installer’s responsibility to make sure the combined weight of all components located on the KRA227 does not exceed 25 lbs (11.3 kg). In addition, when the KRA227 accessory is attached to a K1 Series mount, the listed weight capacity of that assembly becomes the weight capacity listed in Table 1. -
Page 3: Installation Instructions
Installation Instructions KRA227 DIMENSIONS KRA227 (standard) DYNAMIC LIT ARM 6.75 LENGTH RANGE STRAIGHT = MAX 171.5 FULL UP/DOWN = MIN 10.21 7.12 259.3 180.9 MOUNTING PATTERN COMPATIBILITY 100 X 100 TILT RANGE 75 X 75 75 UP INTERFACE 10 DOWN... - Page 4 KRA227 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 5: Tools Required For Installation
Installation Instructions KRA227 TOOLS REQUIRED FOR INSTALLATION 1/8" (included) 3/16" (included) 1/2" PARTS Display Mounting Hardware B (4) C (4) M4 x 14mm M4 x 25mm A (1) [Single monitor arm] (standard shown) D (4) M10 x M5.3 x M10... -
Page 6: Assembly And Installation
KRA227 Installation Instructions ASSEMBLY AND INSTALLATION Carefully remove display from existing mount, following instructions included with mount. Loosen lock nut and 3" button head cap screw located in arm to remove arm from mount. SAVE ALL HARDWARE AND MOUNT ARM EXCEPT 3" SCREW AND PLASTIC... -
Page 7: Display Installation
Figure 6 Position display with faceplate attached above KRA227. (See Figure 7) Quick release lever Slide faceplate onto KRA227 head until quick release tab clicks into place. (See Figure 7) Figure 4 Carefully place display face down on protective surface. - Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
