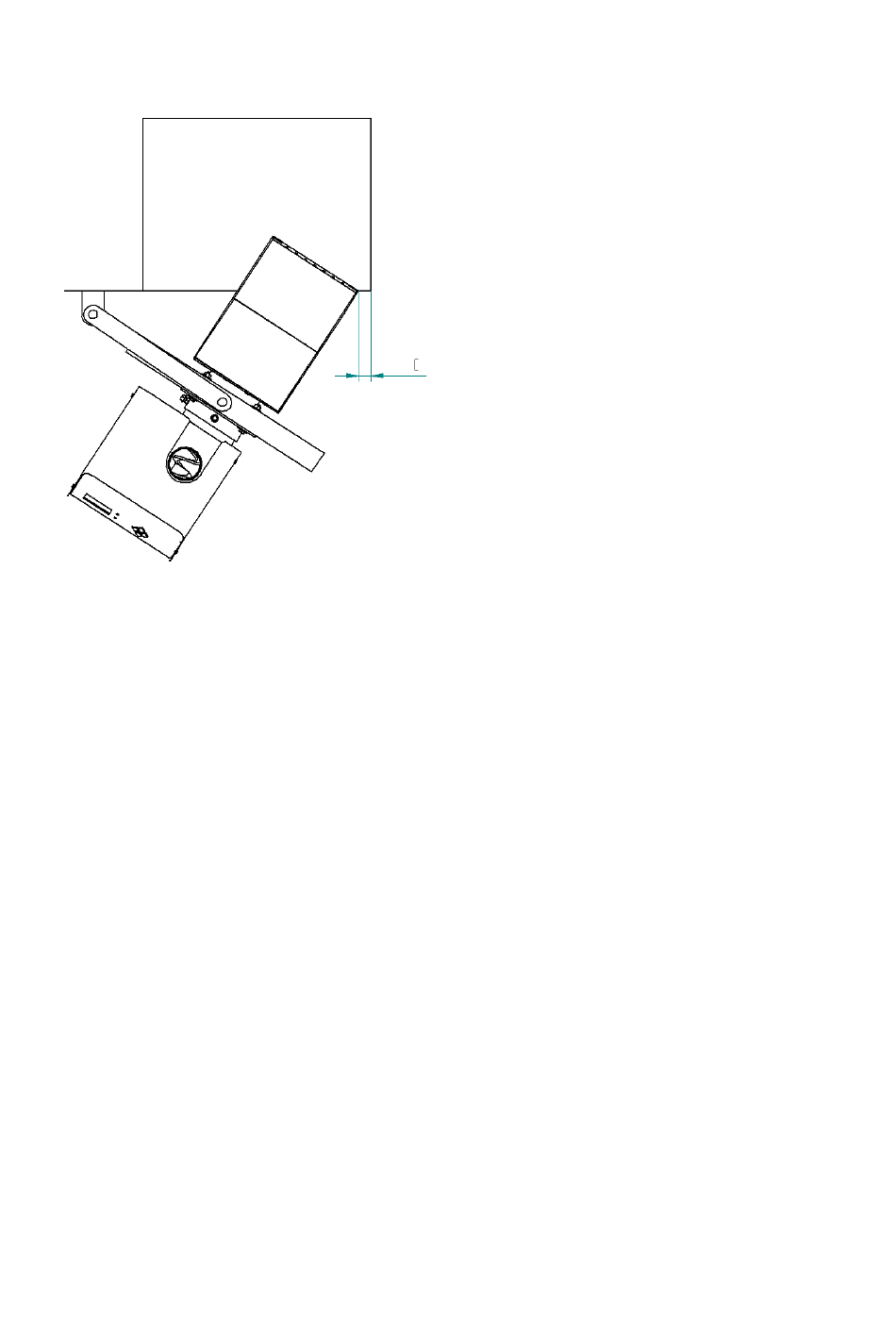

Figure 4 Double hinges
Boiler firebox length L (Figure 5) should be at least 2,5 x the length of the burning chamber. For PV
100a, minimum of 800 mm is acceptable (leaving L1 min. 480mm). The height should be enough to
leave H1 below the burner min. 100mm for ash.
