Pellet Container - Pelltech PV 100a User Manual

Minimum dimensions L and H for PV 100a: L≥800mm; H≥450mm.

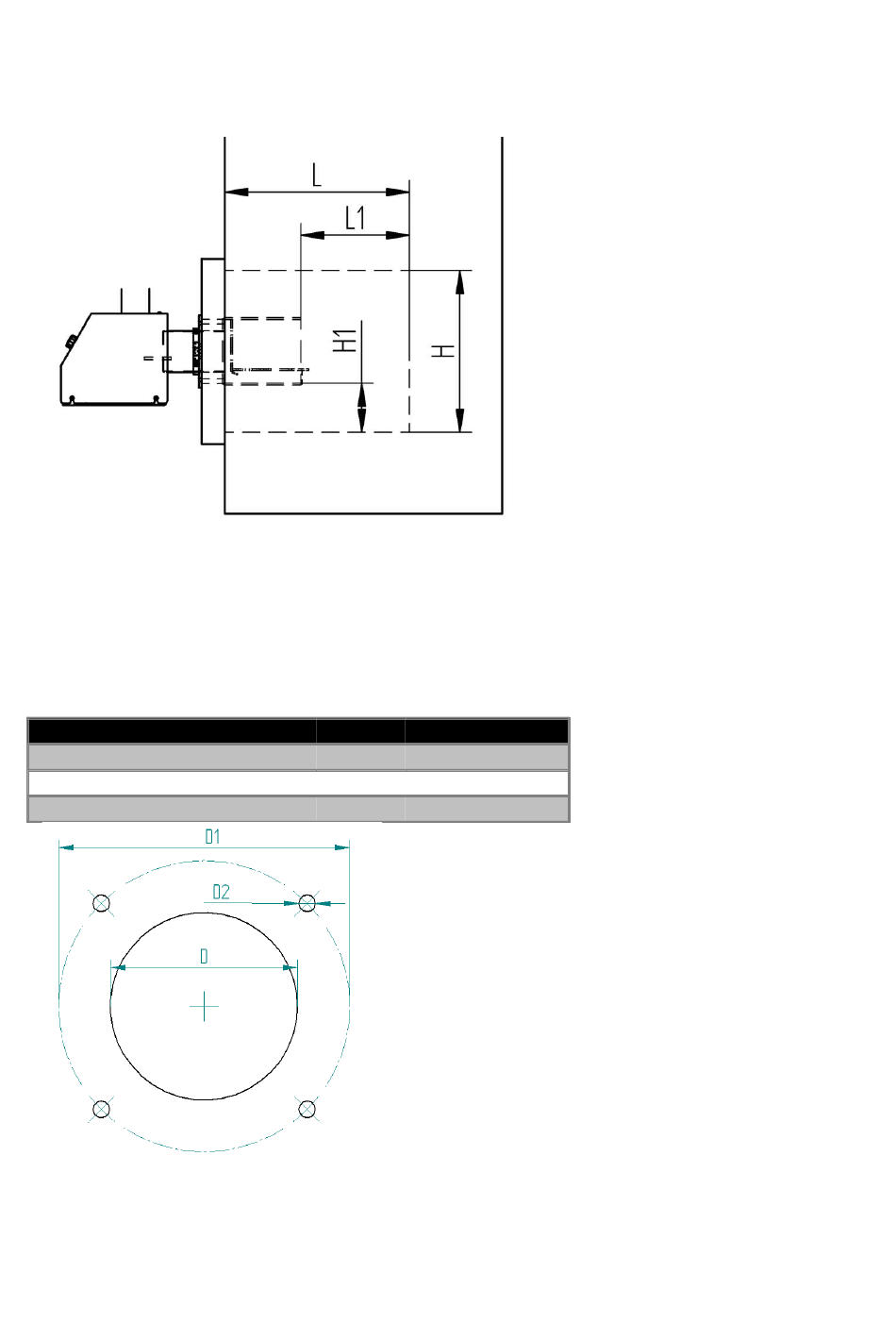

Figure 5 Boiler firebox requirements
Burner is mounted to door using supplied oil burner flange. Bolt hole circle diameter and bolt sizes
can be customized by using custom flanges. D1 and D2 given in Table 3 are only valid with supplied
flanges.
Table 3 Mounting holes for boiler door
⌀D
hole for burning chamber neck
⌀D1
flange bolt ring diameter
⌀D2
bolt holes
Figure 6 Mounting holes with supplied flanges for boiler door
PV 100a
Unit
mm 132
mm 170..210
mm 13
10
