NOTE: Power is supplied through the USB port.
No additional power source is needed for a USB installation.

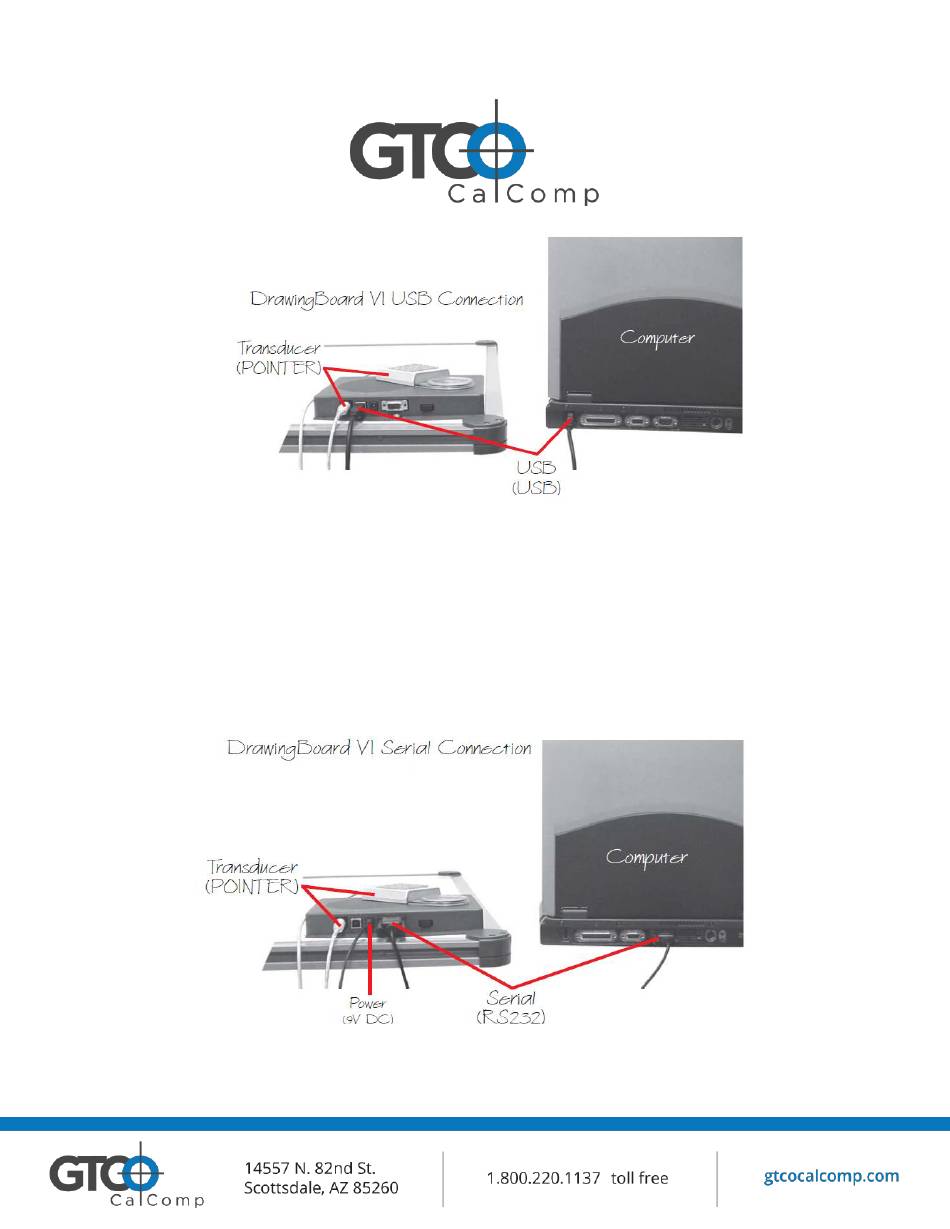

Optional RS-232 Serial Connection

1. Connect the RS-232 serial cable to the serial jack on the Connector Panel. The
connector is keyed and will fit only the correct jack. Do not force it. Attach the
other end to an RS-232 serial port on your computer.
2. Plug the power supply into an AC outlet. Join the power supply to the appropriate
jack on the Connector Panel. Turn the power switch on. The digitizer will beep
once, indicating it has power.
DrawingBoard VI 10
